Understanding What's Inside a Battery
A battery may look simple from the outside, but it contains several important components that work together to store and deliver energy. Learning what's inside a battery can help you better understand its performance, safety, and lifespan.
Many battery problems occur when one or more internal components become damaged or stop working properly. Therefore, understanding how a battery works is not only interesting but also useful for choosing, using, and maintaining battery-powered devices.
This knowledge is also important when developing a custom power solution. Tycorun, a custom lithium battery manufacturer from China, works with different industries to develop battery solutions for specific applications. Factors such as battery chemistry, size, voltage, capacity, and power requirements all affect the final battery design.
What Is a Lithium-Ion Battery?
A lithium-ion battery is a type of rechargeable battery that stores energy chemically and converts it into electrical energy when needed.
Compared with many older rechargeable battery technologies, lithium-ion batteries offer high energy density, relatively low weight, and good cycle life. These characteristics make them widely used in portable electronics, electric vehicles, energy storage systems, and other applications.

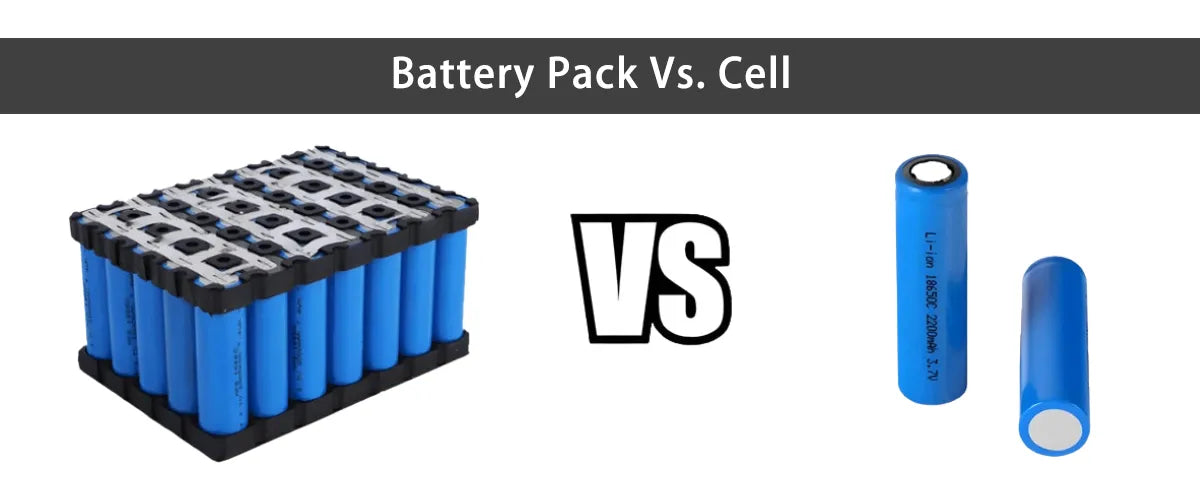

Battery Pack vs. Cell
A lithium-ion cell is the basic building block of a battery pack. Multiple cells can be connected in series, parallel, or a combination of both to achieve the required voltage and capacity.
For example, a single lithium iron phosphate (LiFePO4) cell has a nominal voltage of about 3.2V. Several cells connected in series can create higher-voltage battery packs, such as 12V, 24V, or 48V systems, depending on the battery design.
When cells are connected in series, their voltages add together. When cells are connected in parallel, their capacities add together while the voltage remains the same. This allows manufacturers to design battery packs with different voltage and capacity levels for specific applications.
For example, connecting four LiFePO4 cells in series creates a battery with a nominal voltage of about 12.8V. Connecting two identical cells in parallel doubles the available capacity while maintaining the same nominal voltage.
What's Inside a Lithium-Ion Battery?
A lithium-ion battery pack may contain multiple cells, electrical connections, a battery management system (BMS), protective components, and a casing. Inside each lithium-ion cell are several key components, including the anode, cathode, electrolyte, separator, and current collectors.
The BMS is another important part of a battery pack. It monitors factors such as cell voltage and temperature and can provide protection against conditions such as overcharging, over-discharging, and excessive current, depending on the system design.
The Electrodes: Anode and Cathode
The anode and cathode are the two main electrodes in a lithium-ion cell. In a typical lithium-ion cell, the anode is commonly made from graphite, while the cathode is made from a lithium-containing material such as lithium iron phosphate (LFP), lithium nickel manganese cobalt oxide (NMC), or other lithium-based chemistries.
During charging, lithium ions move from the cathode through the electrolyte and separator toward the anode. During discharge, the lithium ions move back toward the cathode while electrons travel through the external circuit to provide electrical power.
The materials used for the electrodes have a major influence on battery performance, energy density, power output, safety, and cycle life.
Battery Electrolyte
The electrolyte allows lithium ions to move between the anode and cathode during charging and discharging. In many lithium-ion batteries, the electrolyte consists of a lithium salt dissolved in an organic solvent.
The electrolyte must provide good ionic conductivity while remaining stable under the battery's operating conditions. Its properties can affect battery performance, safety, and operating temperature.
The Separator
The battery separator is a thin, porous layer placed between the anode and cathode. It allows lithium ions to pass through while preventing direct contact between the two electrodes.
This separation is essential because direct contact between the electrodes could cause an internal short circuit. Many separators also have shutdown properties that can reduce ion transport when exposed to excessive heat, adding another layer of protection to the cell.
Current Collectors
Current collectors are conductive foils that support the electrode materials and carry electrons into and out of the electrodes. They play an important role in reducing electrical resistance and maintaining efficient current flow inside the cell.
Aluminum foil is commonly used as the cathode current collector, while copper foil is typically used for the anode. The choice of material is important because each current collector must remain stable within the voltage range of its respective electrode.
The design and thickness of current collectors can also affect the battery's weight, resistance, power capability, and overall efficiency.
Battery Casing
The battery casing protects the internal components from physical damage and helps maintain the structural integrity of the cell or battery pack. Depending on the battery design, the casing may be made from materials such as aluminum, steel, or specialized plastic.
A battery enclosure may also provide protection against moisture, dust, vibration, and mechanical impact. In larger battery packs, the enclosure can also work with the thermal management system to help control operating temperatures.
How to Improve Lithium-Ion Batteries
Lithium-ion batteries have transformed energy storage because they offer high energy density, good efficiency, and long service life. However, researchers and manufacturers continue to improve battery materials, cell designs, manufacturing processes, and thermal management systems.
Some areas of development include improved electrode materials, better electrolytes, advanced separators, silicon-based anodes, and solid-state battery technology. These innovations aim to improve energy density, charging speed, safety, cycle life, and overall battery performance.
Common Battery Failures
Battery components can become damaged or unsafe when the battery is exposed to excessive heat, physical damage, overcharging, over-discharging, or other abnormal operating conditions. Common internal problems include:
- Lithium dendrite growth, which can potentially damage the separator and cause an internal short circuit.
- Gas generation, which can cause a cell to swell and, in severe cases, rupture.
- Thermal runaway, in which an uncontrolled rise in temperature can cause further heat generation and potentially lead to fire.
Because of these risks, battery manufacturers use testing, quality control, protective circuits, and thermal management systems to improve battery safety and reliability.
Choosing batteries from reputable manufacturers is also important. Proper cell selection, accurate assembly, reliable BMS protection, and strict quality control can help reduce the risk of battery failure.
How to Recycle What's Inside a Battery
Lithium-ion batteries eventually reach the end of their useful life, but many of the materials inside them can still be recovered and reused through proper recycling processes.
Depending on the battery chemistry, recycling can recover valuable materials such as lithium, nickel, cobalt, copper, and other metals. These materials can then be processed and used in the production of new products.
Proper battery recycling also reduces the amount of waste sent to landfills and can reduce the need for extracting new raw materials. However, lithium-ion batteries should not be dismantled or recycled at home. They should be taken to an appropriate battery recycling facility or collection point.
Conclusion
Understanding what's inside a battery provides a clearer picture of how lithium-ion technology works. From the anode, cathode, and electrolyte to the separator, current collectors, and casing, each component has an important role in storing and delivering electrical energy.
Battery packs also include additional components, such as a battery management system, wiring, and protective enclosures. Together, these parts help the battery operate safely and efficiently.
Whether you are a technology enthusiast, engineer, or everyday user, learning about battery construction can help you make better decisions when choosing, using, and maintaining lithium-ion batteries.
FAQs
How long does a lithium-ion battery last?
The lifespan of a lithium-ion battery depends on its chemistry, design, operating temperature, depth of discharge, charging habits, and usage conditions. Some lithium-ion batteries can last for several years, while LiFePO4 batteries can achieve thousands of charge-discharge cycles under suitable operating conditions.
Are all lithium-ion batteries the same?
No. Lithium-ion batteries can use different chemistries, electrode materials, cell formats, and designs. These differences affect their voltage, energy density, power output, safety, cycle life, and other performance characteristics.
Can I open my lithium-ion battery to see what's inside?
No. It is not recommended to open or dismantle a lithium-ion battery yourself. Damaging the cells or separator can cause an internal short circuit, fire, or exposure to hazardous materials. Battery inspection and repair should be performed by qualified professionals.
