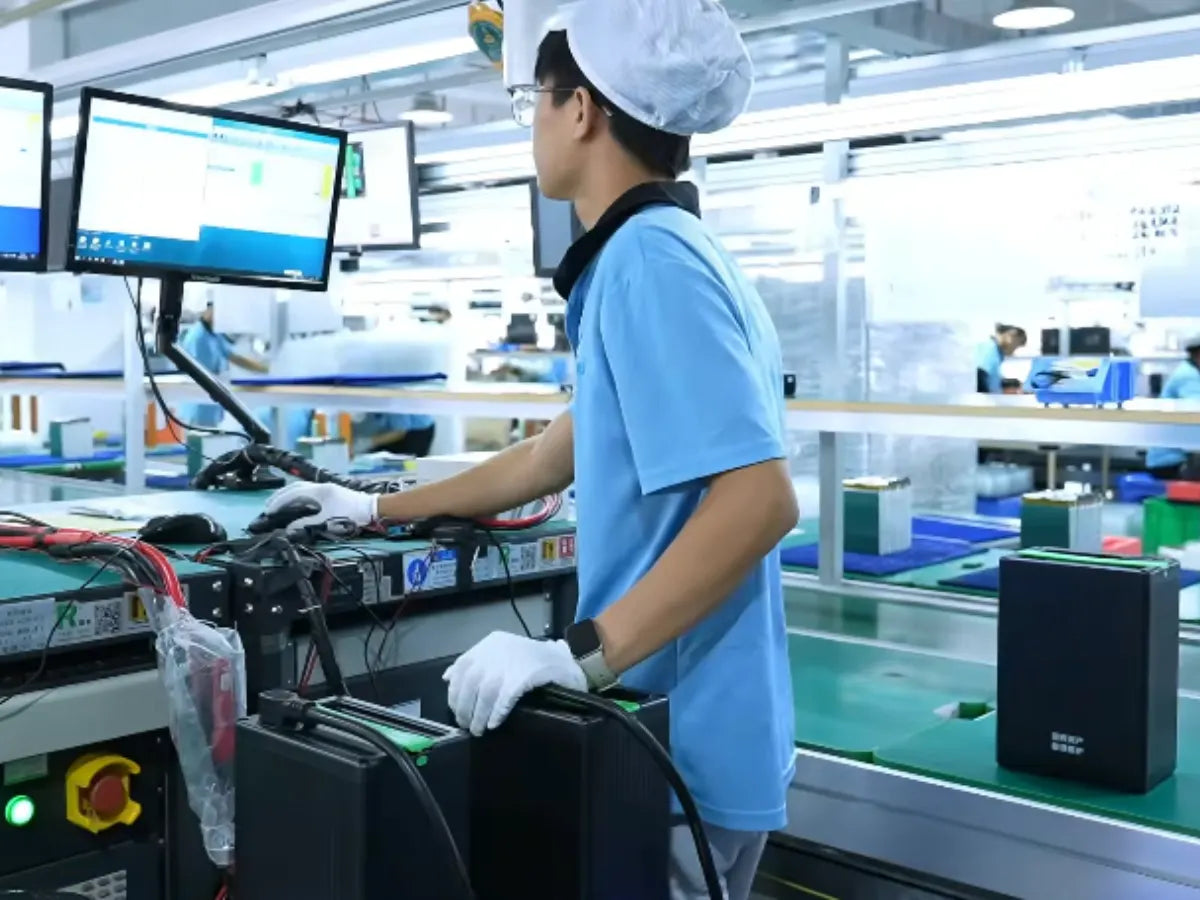

Lithium Battery Pack Testing: The Complete Guide

Quick Answer

Lithium battery pack testing is the set of electrical, BMS/firmware, safety, thermal runaway, environmental/mechanical, ingress-protection, and life-cycle checks used to confirm that an assembled pack performs as designed and won't fail dangerously in the field. Testing is staged. Electrical checks (voltage, capacity, AC-IR/DC-IR) come first. BMS functional testing and safety/abuse testing follow, including thermal runaway propagation tests. Environmental, mechanical, and IP testing come next, and long-run cycle-life testing comes last. Manufacturers run the full battery of tests against recognized standards such as UN 38.3, IEC 62133-2, IEC 62619, UL 1973, UL 2580, UL 9540A, and GB 38031.

Key Takeaways

• Testing is organized into six categories: electrical/performance, BMS & firmware functional, safety/abuse (including thermal runaway propagation), environmental/mechanical, sealing/IP, and life-cycle.
• Cell-level and pack-level abuse tests are different. Nail penetration is a cell-level test. Pack-level programs use thermal runaway trigger-and-propagation tests, external short circuit, crush, and overcharge.
• AC-IR (1 kHz) and DC-IR (pulse-based) measure different things and are not interchangeable.
• Standard codes define the actual conditions and pass/fail criteria: UN 38.3 for transport, IEC 62133-2 for portable batteries, IEC 62619 for industrial batteries, UL 1973 and UL 9540A for stationary storage, UL 2580 for EVs, and GB/T 31485 and GB 38031 for China.
• 80% of initial capacity is the common end-of-life threshold for cycle life, but it is a convention and varies by application.

Types of Lithium Battery Pack Tests

1. Electrical / Performance Testing

This is the first and most frequent layer, generally run on every pack before shipping.

• Voltage testing: checks each series-string voltage and total pack voltage to catch wiring anomalies or poor contacts. Cell-to-cell deviation is commonly held within tens of millivolts at a given SOC, depending on the chemistry and spec.
• Capacity testing: a reference capacity check typically uses a constant-current discharge at 0.2C–0.33C at 25 °C, after a standard charge. The 0.2C reference comes from IEC 61960-type practice, and 1/3C is common in EV practice such as ISO 12405.
• Discharge rate / rate capability: the pack is stepped through 0.5C, 1C, 2C, and 3C to confirm it delivers rated current without excessive voltage sag or heating. High-power packs are also checked with 1C–3C (or higher) pulse discharges lasting seconds to tens of seconds.
• Self-discharge: rest-period testing at 25 °C, with Li-ion packs commonly targeting roughly ≤3% per month.
• Internal resistance, with AC-IR and DC-IR kept separate:

Rising resistance tends to correlate with aging, but neither AC-IR nor DC-IR measures capacity directly. DC-IR is the better aging indicator, and some programs define end-of-life as DC-IR reaching a set multiple of its initial value (often 150–200%).

Read: Knowledge of battery internal resistance - a key to measuring performance

2. BMS & Firmware Functional Testing

A pack is only as safe as the BMS (Battery Management System) that protects it, and cell-level tests can't reveal BMS faults. BMS testing typically covers:

• Measurement accuracy: cell voltage (commonly within ±5 mV), temperature (±1–2 °C), and current sensing (often ±0.5–1% of full scale).
• Protection functions and response times: over-voltage, under-voltage, over-current, short-circuit, and over/under-temperature thresholds, with response times verified. Short-circuit protection typically needs to trip within hundreds of microseconds to a few milliseconds.
• SOC/SOH estimation error against reference cycler data, often targeting a few percent.
• Cell balancing: passive (tens to hundreds of mA) or active balancing effectiveness.
• Communication and control: CAN, SMBus, or Modbus messaging, contactor/pre-charge sequencing, and fault-code reporting.
• Fault injection and firmware validation: sensor open-circuit and out-of-range faults, watchdog behavior, and firmware version control, often using hardware-in-the-loop (HIL) benches. Automotive programs tie this to functional safety (ISO 26262). Stationary systems use UL 1973 and related functional-safety evaluations.

3. Safety / Abuse Testing

Safety tests deliberately push the pack outside normal operation to confirm it fails safely. It matters which level a test is applied at.

Cell-level tests (run on cells before or alongside pack design)

• Nail penetration: simulates an internal short. Typical parameters are a steel nail of roughly 3–8 mm diameter driven through the cell at roughly 10–40 mm/s (25 ± 5 mm/s is common in GB/T 31485-style procedures). This is a cell-level test, not a pack-level one.
• Overcharge: e.g., GB/T 31485 charges at 1C until the voltage reaches 1.5× the upper cutoff or 200% SOC. UN 38.3 T7 applies 2× the manufacturer's maximum continuous charge current for 24 h.
• Forced discharge, heating, and crush/impact at cell level, per UL 1642, IEC 62133-2, IEC 62619, and UN 38.3 T6/T8.

Pack-level tests

• External short circuit: the terminals are shorted through a defined low external resistance. UN 38.3 T5 requires <0.1 Ω at 55 °C. IEC 62133-2 specifies 80 ± 20 mΩ. Chinese EV standards use milliohm-range values (commonly ≤5 mΩ, with the exact value depending on the standard and edition). The test verifies that the BMS, fuse, or contactor interrupts the current before thermal runaway.
• Overcharge / over-discharge: at pack level, this verifies that the BMS cuts off before the cells reach hazardous voltages.
• Crush / extrusion: specified by a force or deformation limit.
• Drop: e.g., 1 m free fall onto a hard surface in IEC 62133-2 for portable batteries.

4. Thermal Runaway and Propagation Testing

Thermal runaway is the self-accelerating heat generation that can lead to venting, fire, and explosion. The most important pack- and system-level question is whether one cell's failure spreads. Thermal runaway propagation testing works like this:

1. Trigger one cell using a film heater, nail penetration (on the target cell only), overcharge, or laser. Thermal runaway is commonly detected by a temperature rise rate of about ≥1 °C/s together with a voltage drop.
2. Monitor cell surface temperatures (thermocouples), voltage, pack pressure, gas emissions (e.g., HF, CO, H₂), and video.
3. Evaluate whether neighboring cells also enter runaway, how long propagation takes, and whether the pack gives an alarm and time for occupants to evacuate.

Relevant frameworks:

• GB 38031 (China's mandatory EV battery safety standard) requires thermal propagation testing at the pack/system level. The 2020 edition required no fire or explosion for 5 minutes after the alarm signal. The 2025 revision tightens this to no fire or explosion, so check the current effective dates for your market.
• UL 9540A (US) is a test method for evaluating thermal runaway fire propagation in stationary energy storage. It runs progressively from cell to module to unit to installation level, and the data feeds into fire-code compliance (e.g., NFPA 855). The full test methodology is published in the UL 9540A Standard for Thermal Runaway Fire Propagation.
• IEC 62619 and UL 1973 also address thermal runaway behavior for stationary/industrial batteries.

Design mitigations validated by these tests include cell spacing, thermal barriers, venting paths, and BMS early warning.

5. Environmental and Mechanical Testing

• Thermal / environmental chamber: temperature extremes, e.g., −40 °C to +72 °C thermal cycling in UN 38.3 T2 (6 h at each extreme, 10 cycles).
• Temperature-humidity alternating (damp heat): cyclic humidity testing such as IEC 60068-2-30, and accelerated conditions such as 85 °C/85% RH, to reveal corrosion and insulation problems.
• Low-temperature discharge: usable capacity and voltage stability in cold conditions.
• Vibration: UN 38.3 T3 sweeps roughly 7–200 Hz with peak acceleration up to about 8 gₙ, for 12 sweeps per axis across three axes.
• Shock: UN 38.3 T4 uses half-sine pulses of 150 gₙ/6 ms for small batteries and 50 gₙ/11 ms for large ones.
• Thermal imaging under load: a diagnostic step, not a pass/fail test. Hotspots at welds and main current paths often indicate excess contact resistance or uneven current distribution.

6. Sealing and IP (Ingress Protection) Testing

Packs for vehicles, outdoor storage, and tools need verified protection against dust and water under IEC 60529:

• IP65: dust-tight and protected against water jets.
• IP67: dust-tight and protected against temporary immersion (typically 1 m for 30 min).
• IP68: continuous immersion under manufacturer-specified conditions.
• IP6K9K (ISO 20653): high-pressure, high-temperature steam-jet cleaning, relevant for vehicle packs.

Enclosure sealing is often pre-screened with an air-pressure-decay leak test (and helium leak testing for coolant plates), followed by the formal IP test. Some standards add their own water-immersion safety tests, such as the salt-water immersion in GB 38031. Seal integrity should be rechecked after vibration and thermal cycling, since gaskets can relax and fail.

7. Life-Cycle (Cycle) Testing

• Cycle life: repeated charge-discharge cycles, commonly 0.5C/0.5C at 25 °C, with periodic reference capacity checks at 0.2C–0.33C. It evaluates the cells and also the pack's connections, thermal management, and BMS balancing.
• End of life: 80% of initial capacity is the common benchmark, though some applications retire packs sooner and others run past it.
• Duration: thousands of cycles typically take weeks to months, and calendar-aging tests take longer.

Summary Table: Test Categories at a Glance

No category substitutes for another. A pack that passes electrical testing can still fail a propagation test, and a pack that passes safety testing can still fade fast under cycling.

Testing Standards and Certifications

TÜV and UL are certification bodies rather than standards. Requirements vary by market and change over time, so confirm the current edition with an accredited lab before testing.

Check: Lithium battery standards and certification

Common Test Equipment

• Battery cyclers / pack test systems: Chroma, Arbin, Bitrode, Digatron, Maccor, and Neware run capacity, rate, pulse (DC-IR), and cycle-life tests, often with regenerative energy recovery for pack-scale power.
• Impedance analyzers / AC-IR testers: Hioki battery testers (e.g., BT3562/BT3563 for 1 kHz AC-IR, BT4560 for impedance spectroscopy).
• Environmental chambers: temperature and temperature-humidity alternating chambers from ESPEC, Weiss Technik, and Thermotron, from −40 °C to +85 °C or wider.
• Vibration and shock systems: electrodynamic shakers and shock tables for UN 38.3 and ISO-type profiles.
• Abuse test equipment: explosion-proof chambers, short-circuit testers, penetration/crush rigs, and accelerating rate calorimeters (ARC) for cell thermal characterization.
• Diagnostics: thermal imaging cameras (e.g., FLIR), thermocouple data loggers, and gas analyzers for venting studies.
• BMS validation: HIL platforms (e.g., dSPACE, NI) and CAN analyzers.

Where Testing Fits in the Pack Assembly Process

1. Incoming inspection: cells and components checked against spec.
2. Cell-level testing: capacity, voltage, AC-IR, and DC-IR sorting, so that cells in a series or parallel group are matched.
3. Pack assembly quality checks: weld pull tests, wiring, fixation, and torque checks.
4. Electrical, BMS, and safety testing: end-of-line voltage, capacity, AC-IR, and BMS function on every pack, with abuse tests on samples.
5. Environmental, IP, and propagation testing: usually on samples or during design validation and type approval.
6. Factory testing and traceability: a final check, with records tying each pack to its batch and test data.

Sampling rates vary by manufacturer and application. EV, medical, and aviation packs warrant more exhaustive testing than consumer products.

Frequently Asked Questions

What is lithium battery pack testing, exactly?

A pack is an assembled system of cells or modules, a BMS, wiring, and an enclosure, and each can introduce its own failure modes. A cell can test perfectly and still end up in a pack with a cold weld, an unbalanced parallel group, or a BMS fault that only appears under load. Testing is a layered process covering electrical, BMS, safety, thermal runaway, environmental, IP, and life-cycle checks.

What is the most important test for a lithium battery pack?

There isn't one. Electrical tests catch assembly errors, BMS tests catch protection faults, safety and propagation tests catch dangerous failure modes, and cycle testing catches long-term degradation.

Is nail penetration a pack-level test?

Generally no. It is a cell-level abuse test. Pack-level programs use thermal runaway trigger-and-propagation tests, external short circuit, and crush tests instead.

What's the difference between AC-IR and DC-IR?

AC-IR is measured at 1 kHz with a small AC signal and mostly reflects ohmic resistance. It is fast and suited to production screening. DC-IR is measured from a current pulse and includes polarization effects, so it better reflects power capability and aging, but it depends on SOC, temperature, and pulse length.

How long does cycle life testing take?

Usually weeks to months, depending on the cycle count and C-rate. Packs designed for thousands of cycles take the longest.

What does it mean if a pack fails a short-circuit or propagation test?

The design or protective response isn't containing the fault. Causes can include cell chemistry, separator quality, insufficient thermal barriers, or slow protection response, and finding the exact cause usually needs further investigation.

Is 80% capacity really the standard end-of-life threshold?

It's a widely used convention, not a physical law. Some applications retire packs earlier and others use them well past it.

Do all lithium battery packs need the same tests?

No. Depth and severity scale with the risk of failure, so an EV or energy storage pack faces far more rigorous testing than a small consumer power bank.

Conclusion

Lithium battery pack testing is a layered process: electrical checks (with AC-IR and DC-IR distinguished), BMS and firmware validation, safety and thermal runaway propagation testing, environmental and IP testing, and long-run cycle testing. Each layer catches problems the others miss. Anchoring the program to the right standards (UN 38.3, IEC 62133-2, IEC 62619, UL 1973, UL 2580, UL 9540A, GB/T 31485, GB 38031) and using the right instruments turns a pack that is merely "structurally complete" into one that is ready for the field.
