Lithium Battery Assembly: Process, Methods, and Safety Guide

Key Takeaways

• Lithium battery assembly combines individual cells, interconnects, a Battery Management System, thermal management, and a protective enclosure into a functional pack.
• Cell matching — grouping cells by similar voltage and internal resistance — is one of the most impactful steps for pack longevity.
• Spot welding creates lower-resistance, more reliable cell connections than soldering for most cylindrical cell formats; bolted connections are reserved for large-format or serviceable packs.
• Most commercial production today is semi-automated, not fully manual or fully robotic — automated welding and testing paired with manual placement and inspection.
• The weakest series group — not an individual weak cell — determines when the BMS cuts off charge or discharge for the whole pack. This is the "wooden barrel effect."
• Thermal management and structural/mechanical safety are core design requirements, not afterthoughts.
• Testing every pack after assembly is the only way to confirm the build meets its design specifications before it is put into service.

Lithium battery assembly is the critical link between individual energy storage cells and a reliable power source. This guide covers cell selection, matching, BMS integration, thermal and structural design, step-by-step assembly, common mistakes, and safety precautions.

What Is Lithium Battery Assembly?

Lithium battery assembly is the process of building a complete, functional battery pack from individual lithium cells, electrical interconnects, a Battery Management System (BMS), and a structural enclosure.

A single lithium cell — whether cylindrical, prismatic, or pouch format — provides a fixed nominal voltage (typically 3.2V–3.7V depending on chemistry) and a fixed capacity. Most real-world applications need voltages and capacities a single cell can't deliver, so cells must be combined in engineered configurations to meet the system's requirements.

Assembly spans four connected stages:

1. Cell selection and matching
2. Physical interconnection (welding or bolting cells together)
3. BMS and thermal/structural integration
4. Final electrical testing

A pack built from high-quality cells but assembled with poor interconnects and no cell matching will underperform — and may fail unsafely — compared to a more carefully assembled pack using equivalent cells.

Lithium battery assembly applies at every scale: from a hobbyist building a small e-bike battery at home with a spot welder and cylindrical cells, to a manufacturing facility producing thousands of EV battery modules per day with automated cell placement, laser welding, and inline quality control. The core principles — correct cell configuration, low-resistance interconnects, active BMS protection, thermal and structural design, and verified testing — are the same at every scale.

Why Assembly Quality Determines Battery Performance

Assembly quality directly impacts real-world performance. Four factors matter most: connection resistance, cell balance, thermal behavior, and safety.

Connection resistance is the most immediate quality variable. Every joint between a cell terminal and an interconnect strip adds resistance. Poor spot welds, undersized nickel strips, or contaminated surfaces increase that resistance. In high-current discharge, even a few milliohms of added resistance per joint generates measurable heat and causes voltage sag at the load.

Cell imbalance shows up differently depending on how the mismatched cell is wired, and this is a common point of confusion — so it's worth being precise:

• Inside a parallel group, cells are forced into voltage equilibrium — they're physically tied to the same two nodes, so they can't sit at different voltages. A cell with lower capacity or higher internal resistance inside that group doesn't independently trigger protection. Instead, it drags the entire parallel group's apparent capacity down, generates disproportionate heat, and causes that group to reach its charge or discharge cut-off point faster than a healthier group would.
• Across series groups, this is where the BMS actually acts. The BMS monitors each series group's voltage independently through its balance leads, and it terminates charging or discharging based on whichever series group hits its limit first — 4.2V (or chemistry-appropriate equivalent) on charge, or roughly 2.8V on discharge. A single weak parallel group inside one series position will pull that whole series group to its limit early, and the BMS protection trips for the entire pack, even though the other series groups have capacity left.

This is commonly called the "wooden barrel effect": like a barrel made of staves of different heights, the pack's usable capacity is set by its weakest series group, not by the average of all cells. Good cell matching before assembly is what prevents any one group from becoming the short stave.

A study in the Journal of Power Sources found that a 20% difference in internal resistance between parallel-connected cells can reduce cycle life by approximately 40%.

Thermal behavior compounds the above: heat generated by a mismatched or high-resistance group raises that group's temperature relative to its neighbors, which further increases its internal resistance and accelerates degradation — a feedback loop that widens the imbalance over the pack's life if not controlled by thermal design.

Safety is the fourth dimension. A lithium pack without a properly installed BMS has no active protection against overcharge, over-discharge, or external short circuit. Assembly quality determines whether these protections — and the pack's thermal and structural design — function as intended.

Main Methods of Lithium Battery Assembly

Manual, Semi-Automated, and Fully Automated Assembly

Manual assembly is the standard approach for custom packs, small-batch production, DIY projects, and repair work. The assembler handles cell placement, spot welding, BMS wiring, and insulation by hand. It's flexible — it accommodates non-standard cell configurations — but its quality ceiling is limited by the assembler's skill and attention. Fatigue, distraction, and inconsistent spot weld pressure all introduce variability.

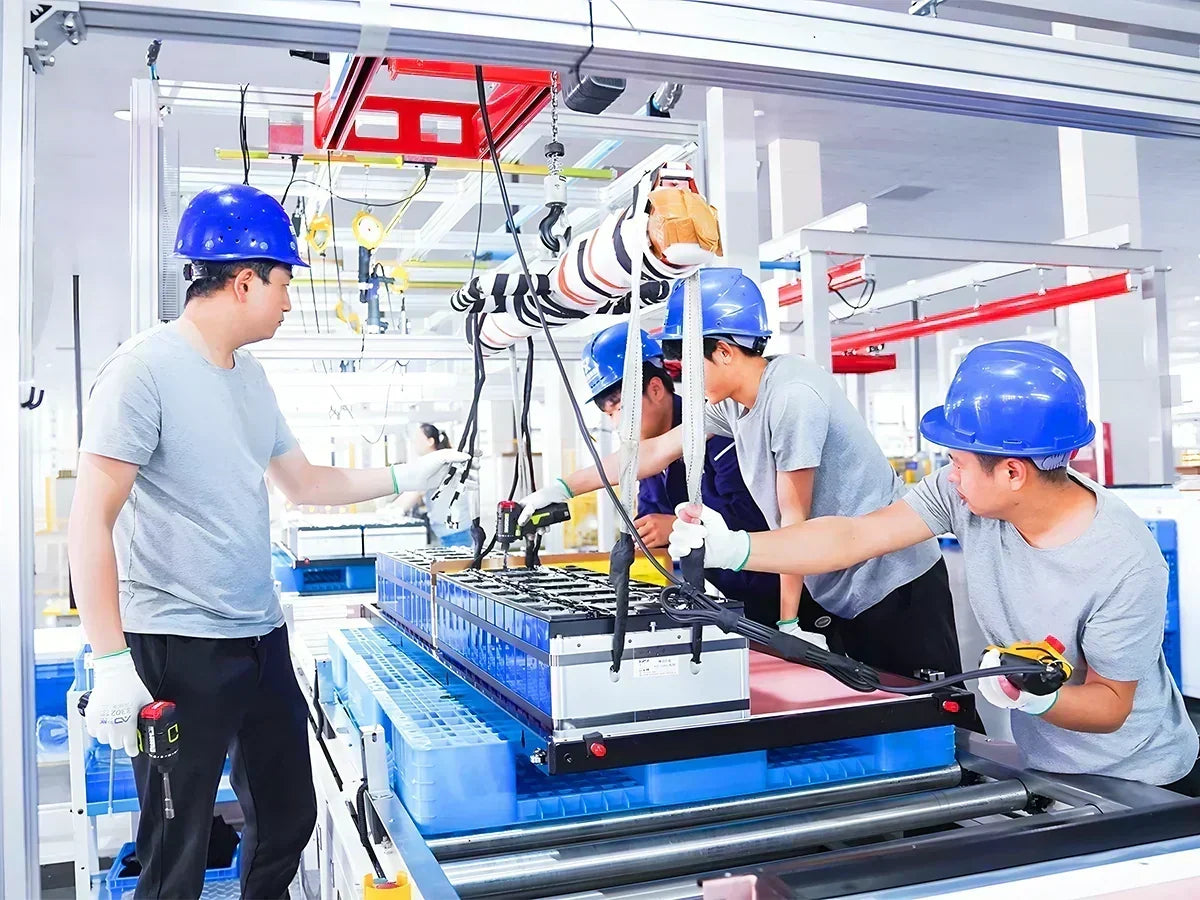

Semi-automated assembly is the current industry standard at most factories, not the fully robotic ideal that "automated assembly" often implies. In a typical semi-automated line, cell sorting and voltage/resistance testing are automated, spot welding is done with fixed or semi-automatic welding jigs that a human operator positions and triggers, and final inspection and packing are still manual. This hybrid approach captures most of the consistency gains of automation — particularly around weld energy and cell sorting — without the capital cost of a fully robotic line, which only makes economic sense at very high production volumes.

Fully automated assembly is reserved for commercial battery manufacturing at large scale. Robotic systems handle cell loading and orientation, automated spot welders or laser welders apply consistent energy to each joint, vision systems verify weld quality, and automated testers check every cell connection before the pack is closed.

Spot Welding vs. Bolted Connections

Spot welding is the dominant interconnection method for cylindrical and small prismatic lithium cells. A spot welder passes a high-current pulse through a nickel or nickel-plated steel strip pressed against the cell terminal, fusing the strip to the terminal without significantly heating the cell body. A good spot weld creates a low-resistance joint — typically under 1 mΩ — that is mechanically strong and permanent. The limitation: spot-welded connections aren't serviceable. Replacing a single cell requires cutting welds and re-welding.

Bolted or compression connections are used in large-format prismatic and LFP battery systems, including many EV battery modules and stationary storage racks. Threaded terminal bolts allow cells and busbars to be assembled and disassembled with standard tools, making individual cell replacement possible. The trade-off: bolted connections require periodic inspection and retorquing, since vibration and thermal cycling can loosen fasteners over time and increase contact resistance.

Thermal Management in Battery Pack Design

Heat is the single biggest driver of long-term degradation and safety risk in an assembled pack, so thermal management has to be designed in — not added after the fact.

• Passive cooling (air gap / potting): Spacing between cells combined with thermally conductive potting compound or gap-filler pads. Common in low-to-moderate discharge rate consumer and light e-mobility packs.
• Active air cooling: Fans forcing air across the cell stack or through ducted channels. Used where discharge rates and ambient temperatures are moderate but passive cooling isn't enough.
• Liquid cooling: Coolant plates or channels in direct or near-direct contact with cells or busbars. Standard in EV packs and high-discharge-rate industrial packs where heat density is too high for air cooling alone.
• Thermal fuses / cut-offs and fire-resistant barriers: Inter-cell fire barrier material (mica, ceramic fiber, or intumescent sheet) to slow propagation if one cell enters thermal runaway, limiting damage to neighboring cells.

Two assembly-stage decisions matter most for thermal performance: cell spacing (too tight and heat can't dissipate or propagate is faster; too loose and pack volume/energy density suffers) and thermal interface material selection (gap pads and potting must match the pack's actual heat load — under-specifying this is a common source of field failures in hot climates or high-drain use).

Structural Safety and Mechanical Design

A pack that is electrically sound but mechanically weak will fail in service — usually through weld fatigue, wiring abrasion, or cell movement under shock and vibration.

• Cell retention: Cells must be fully immobilized inside the enclosure using holders, compression plates, foam, or structural adhesive. Any play allows micro-movement that fatigues weld joints over thousands of vibration cycles.
• Enclosure material and rating: ABS plastic is adequate for low-risk, low-vibration consumer use; aluminum or steel enclosures are standard for e-mobility and vehicle applications where impact and crush resistance matter. Outdoor or exposed installations should meet an appropriate IP rating against dust and moisture ingress.
• Vibration and shock design: Mobile applications (e-bikes, scooters, vehicles, drones) should be validated against the vibration profile of their end use, not just assembled and assumed sound. Foam compression or adhesive generally outperforms rigid clips alone in high-vibration environments.
• Crush and impact protection: For packs mounted in vehicles or equipment where physical impact is plausible, the enclosure and internal bracing should be designed to prevent cell deformation, which is a direct trigger for internal short circuits.
• Wiring strain relief: All wiring, especially BMS balance leads, should be routed and secured so no connection point bears mechanical tension, and no wire can be pinched or abraded against an edge.

Tools and Materials Required

Preparing the correct tools and materials before starting assembly avoids mid-process improvisation that leads to quality compromises and safety risks.

Step-by-Step Lithium Battery Assembly Process

1. Cell Preparation and Matching

1. Measure the open-circuit voltage of every cell with a multimeter. Cells destined for the same parallel group must be within 10–20 mV of each other before connection — larger gaps equalize through high current flow when connected, generating heat and stressing both cells.
2. For critical applications, measure internal resistance with a dedicated battery internal resistance meter (not a standard multimeter) and group cells by both voltage and resistance within tight tolerances.
3. Inspect each cell visually for dents, wrapping damage, terminal contamination, or signs of prior venting. Reject any cell with physical damage or a voltage outside the chemistry's normal resting range — for example, a new NMC cell resting below 3.0V or above 4.25V signals a problem assembly won't fix.
4. Clean cell terminals with isopropyl alcohol before welding — oils, dust, or oxidation increase weld-joint contact resistance.
5. Trim damaged or overextended wrappers with a utility knife or scissors, being careful not to cut into the metal can or damage the insulating ring at the positive terminal. Replace damaged wrappers with heat shrink tubing.

2. Cell Connection and Configuration

1. Arrange cells in their holders per the target series-parallel configuration, and fix them in place with non-conductive adhesive, plastic pins, or spring clips before welding, so they can't shift mid-weld.
2. Mark polarity clearly before making any connection. Reversed polarity is the most consequential assembly error — it causes immediate cell damage and can initiate thermal runaway in a charged pack.
3. Apply insulating fish paper or Kapton tape to the positive terminal of each cylindrical cell before welding, to prevent the nickel strip from bridging the positive terminal to the cell body (a direct short circuit). Replace a damaged insulating ring before proceeding.
4. Spot weld nickel strips across parallel groups first, then connect series groups.
5. Test resistance across each weld with a milliohm meter, or check for a consistent weld appearance (two small circular impressions where the electrode tips contacted). Pull-test each weld with light finger pressure — it shouldn't peel away from the terminal.

3. BMS Installation

The BMS connects at four points: main positive input, main negative input, main output to the load connector, and balance leads — one per series group, each measuring that group's voltage independently.

1. Follow the BMS manufacturer's balance lead wiring diagram exactly. This is the most error-prone step: a lead connected out of order or to the wrong series group causes the BMS to misread group voltages, which can trigger false protection events or, worse, fail to trigger real ones.
2. Verify each lead's voltage against the expected group voltage with a multimeter before powering the BMS.
3. Confirm no balance lead is connected to a higher voltage point than its rated input.
4. Size main positive and negative leads for the pack's full continuous discharge current. Balance leads carry only microampere-level sensing current and can use thin wire (24–28 AWG), but must be routed to avoid pinching or abrasion that could short across series groups.

4. Packaging and Sealing

1. Secure the cell assembly inside the enclosure with holders, foam padding, or compression plates so cells cannot move relative to the enclosure — movement fatigues weld joints and eventually breaks connections.
2. Route all wiring away from sharp edges, with no wire under tension at its connection points.
3. Apply insulating kraft paper (or fish paper) over the cell stack and exposed busbars as an added insulation layer before potting, in addition to the terminal-level insulation applied during cell connection.
4. Run an in-process electrical check — continuity and insulation resistance between the cell stack and the enclosure — while everything is still accessible and any error can be corrected without cutting into cured potting or a sealed cover.
5. Apply potting compound (see Thermal Management) to fix the cells mechanically and improve heat transfer to the enclosure, then let it cure per the compound's datasheet before proceeding.
6. Close the enclosure cover, then seal the edges with adhesive. For packs that need an IP rating, this seal is what the airtightness and waterproofing test below actually validates — inconsistent adhesive application is the most common cause of a failed seal.
7. Connect the final output connector's positive lead last, and verify polarity against the connector's mating half before the first connection to any load.

Do not apply potting compound or close and seal the cover until the in-process electrical check above has passed — once potted and sealed, correcting a wiring error means cutting the pack open.

Series vs. Parallel Connection Explained

The electrical configuration of cells in a lithium battery pack determines its output voltage and total capacity.

In a series connection, cells connect positive-to-negative in a chain. Each cell's voltage adds to the total, while capacity stays equal to a single cell's capacity. Four 3.6V cells in series produce a 14.4V nominal pack. Series connection achieves the system voltage a load requires — a 48V e-bike motor needs a 13S NMC pack (13 × 3.6V = 46.8V nominal) or a 15S LFP pack (15 × 3.2V = 48V nominal).

In a parallel connection, cells connect positive-to-positive and negative-to-negative. Voltage stays equal to a single cell's voltage, while capacity multiplies by the number of cells. Three 3,000 mAh cells in parallel produce one 9,000 mAh group at 3.6V nominal. Parallel connection increases total capacity and reduces the current demand on any individual cell.

Most practical packs use both, described in "S×P" notation. A 4S3P pack has four series groups, each made of three parallel-connected cells: 4 × 3.6V = 14.4V nominal at 3 × cell capacity. As explained above, the BMS monitors each of the four series groups independently, and the weakest series group — not any single cell — sets the pack's real-world cut-off point (the wooden barrel effect).

Read more: Batteries in Parallel vs. Series

How to Test a Lithium Battery After Assembly

Testing confirms the assembled pack matches its design specifications and is safe to deploy. Some checks happen in-process, during packaging (see above); others are final checks run on the closed, finished pack. A pack that hasn't been through this sequence has unknown performance and unknown fault conditions.

Steps 1–4 are typically done in-process, before the enclosure is sealed. Steps 5–9 are final checks on the closed pack, and the aging test in particular is what catches early-life ("infant mortality") failures before a pack ships — it's the step most often skipped in rushed manual builds, and the one most worth keeping even under time pressure.

Common Mistakes in Lithium Battery Assembly

• Skipping cell matching: The most common cause of premature capacity loss. Even same-batch cells vary enough to cause meaningful imbalance if placed without sorting.
• Reversed cell polarity: Even one reversed cell in a series string is charged in reverse — permanently damaging it and potentially triggering thermal runaway. Always verify polarity before each series connection.
• Cold or weak spot welds: A weld that looks fine but hasn't fully fused creates a high-resistance joint. Pull-test every weld immediately and re-weld anything that peels.
• BMS balance lead wiring errors: Leads out of order or on the wrong series group cause the BMS to misread group voltages. The pack can appear to work normally in the short term while a cell group is driven outside its safe range on every cycle.
• Undersized main current wires: Causes heat buildup, voltage drop, and insulation failure. Size main leads for at least 125% of maximum continuous discharge current.
• Closing the pack before testing: Forces disassembly to fix any wiring error found afterward. Always test fully before final closure.
• Ignoring vibration and shock protection: In mobile applications, unsecured cells lead to premature weld fatigue and intermittent faults over time.
• Under-specifying thermal design: Treating cooling as an afterthought instead of sizing it to the pack's actual heat load leads to accelerated degradation and, in worst cases, thermal runaway risk.

Safety Precautions for Lithium Battery Assembly

Lithium cells store significant energy in a compact volume. A charged cylindrical NMC cell at 4.2V holds enough energy to sustain a fire if that energy is released rapidly — exactly what a short circuit, reversed connection, or overcharge condition causes.

• Work with cells at partial charge when possible: Storage voltage (~3.6V–3.8V for NMC) carries lower fire risk than a fully charged 4.2V cell.
• Keep metal tools clear of live terminals: A tool bridging positive to any negative surface is an immediate short. Work one connection at a time and insulate completed connections before moving on.
• Have a fire-safe container available: A metal bucket of dry sand or a lithium fire containment bag should be within reach. If a cell starts venting (hissing, acrid smell), move it into the containment vessel and outside immediately.
• Ventilate the work area: Venting cells release flammable and toxic gases. Work outdoors or in a well-ventilated space, especially with cells of uncertain provenance.
• Never solder directly to lithium cell terminals: Sustained heat can damage the internal separator and create an internal short that develops into thermal runaway hours or days later.
• Label polarity clearly before final closure: A reversed connection at the load destroys the load electronics instantly and may damage the pack.

Conclusion

Lithium battery assembly is a process where precision at every stage compounds into the quality of the finished pack. Cell matching, connection method, BMS integration, thermal and structural design, and post-assembly testing aren't independent steps — each builds on the last, and a shortcut at any stage creates problems that can't be fully corrected afterward.

For first-time builders, the core principles are simple: match cells before connecting them, verify polarity at every series connection, design in thermal and structural margin, never skip the BMS, and test completely before closing the pack. These practices eliminate most failures seen in poorly assembled lithium packs.

As scale increases from a single e-bike pack to batch production, the principles don't change — but the tools, quality controls, and documentation get more rigorous. Automated welding, inline resistance measurement, and capacity cycling of every finished pack are the commercial equivalents of the manual checks a careful DIY builder performs by hand.

Frequently Asked Questions

Is a BMS required for every lithium battery pack?

Yes. For any rechargeable lithium pack, a BMS is mandatory. It prevents overcharge, over-discharge, and short circuits — failure modes lithium chemistry cannot tolerate safely.

Can I assemble a lithium battery pack without a spot welder?

Not recommended. Soldering damages cells with heat; conductive adhesive or clamps produce unreliable, high-resistance joints. For regular use, a spot welder is the correct tool.

Why does cell matching matter in battery assembly?

Mismatched cells cause imbalance, forcing the BMS to cut off early and reducing usable pack capacity. Matched cells degrade more uniformly and last longer.

Why does one weak cell affect the whole pack?

A weak cell in a parallel group drags that group's apparent capacity down and makes it reach cut-off voltage faster than healthier groups. Because the BMS bases protection on series-group voltage, that one weak group — not the individual cell — determines when the entire pack's charge or discharge cuts off. This is the "wooden barrel effect": overall capacity is set by the weakest group, not the average.

Why does thermal management matter in assembly?

Heat accelerates internal resistance growth and cell degradation, and uneven cooling widens cell imbalance over time. Sizing cooling (passive, active air, or liquid) and fire-barrier material to the pack's actual heat load during assembly is what keeps that feedback loop from compounding over the pack's service life.

Is DIY lithium battery assembly safe?

Yes, if done correctly. With reputable cells, a properly sized BMS, cell matching, sound thermal/structural design, and thorough testing, DIY assembly can be as safe as commercial packs. Shortcuts are the real risk.

How long does lithium battery assembly take?

1–8 hours depending on size. A small 8-cell pack takes 1–2 hours; a 52-cell e-bike pack takes 4–8 hours. Cell matching is the most time-consuming step.
