How a Battery Stores Energy: Learn How Batteries Work

Batteries are used in many everyday devices such as phones, laptops, electric bikes, cars, toys, and home energy systems. Even though we use batteries daily, many people still do not understand how they work. This article explains how a battery stores energy and how that energy is released to power devices. It explains basic ideas like chemical energy, electrical energy, electrons, and current in an easy and clear way. No technical background is needed to understand this guide.

What is a battery?

A battery is a device that keeps energy inside it and releases that energy when we need power. The energy is stored as chemical energy and changed into electrical energy when the battery is used. To understand how a battery stores energy, it helps to know what is inside a battery. Most batteries contain one or more small cells. Each cell has two main parts called the anode (negative side) and the cathode (positive side). Between them is a liquid or gel called the electrolyte.

Explore cathode and anode here.

When a battery is connected to a device, electrons move from the negative side to the positive side through the circuit. This movement of electrons creates electricity that powers the device. Batteries come in many types, such as alkaline, lithium-ion, lead-acid, and nickel-metal hydride, but they all work in a similar way based on how a battery stores energy.

Energy forms: Chemical energy vs electrical energy

Before explaining how a battery stores energy, let’s talk about energy types.

• Chemical energy is energy stored in chemicals. For example, food stores chemical energy that our body uses.
• Electrical energy is energy caused by moving electrons, which powers electronic devices.

A battery works by converting chemical energy into electrical energy. When charging a rechargeable battery, the process is reversed: electrical energy is converted back into chemical energy and stored inside the battery.

This energy conversion is the key to understanding how a battery stores energy.

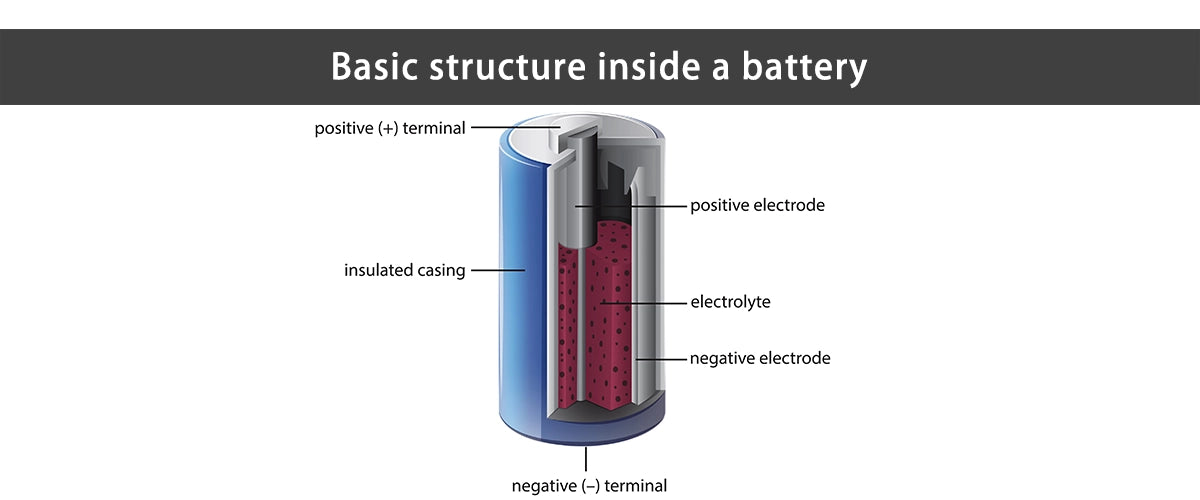

Basic structure inside a battery

No matter the size or type, most batteries have a similar internal structure.

• Anode (Negative Side)

The battery anode is the part of the battery where electrons are released during use. It is usually made from materials like graphite or zinc, depending on the battery type.

• Cathode (Positive Side)

The cathode receives electrons during battery use. Common cathode materials include lithium metal oxides, manganese dioxide, or nickel-based compounds.

• Electrolyte

The electrolyte is a chemical solution that allows ions to move between the anode and cathode. It does not allow electrons to pass directly, which is very important for safe operation.

Understanding these three parts makes it much easier to understand how a battery stores energy and releases it in a controlled way.

How the battery stores energy

How do batteries work? A battery works because of simple chemical actions happening inside it. These actions are controlled and happen in a safe way so energy can be stored and used when needed.

Energy storage inside the battery

A battery works because of chemical actions happening inside it. These actions store energy and later turn it into electricity.

Inside the battery:

• the anode (negative side) gives away electrons
• the cathode (positive side) receives electrons
• the electrolyte helps ions move inside the battery

When the battery is connected to a device:

• electrons leave the anode
• electrons move through the wire and the device
• electrons reach the cathode

This movement of electrons creates electric power. This is the basic idea of how a battery stores energy and releases it when needed.

What happens during use and charging

When a battery is being used, stored chemical energy slowly turns into electrical energy. As electrons move through the device, the battery’s stored energy decreases.

For rechargeable batteries, the process can go backward. When you plug in a charger, electricity is sent back into the battery. This pushes the electrons back to their original places and restores the chemical energy inside. This is how the battery becomes ready to use again.

This ability to store energy, release it, and store it again shows clearly how a battery stores energy and why rechargeable batteries are so useful in everyday life.

The role of electrons and ions

To fully understand how a battery stores energy, we must talk about electrons and ions.

• Electrons move through the external circuit and create electricity.
• Ions move inside the battery through the electrolyte to balance the chemical reaction.

The electrolyte allows ions to move but blocks electrons. This forces electrons to travel through your device instead, which is how useful work is done.

Common battery types and how they store energy

There are many types of battery sold today. Each battery type is made with different materials, so the way it keeps energy inside is not exactly the same. Below are some common battery types and a simple explanation of how they store energy.

• Lead-acid batteries
  These batteries store energy using lead-based plates inside a liquid solution. The energy stays in the battery as chemical energy and is released when the battery is used.
• Lithium-ion batteries
  Lithium-ion batteries store energy by moving lithium particles between two internal layers. This design allows them to store a lot of energy in a small and lightweight battery.
• Nickel-cadmium batteries
  In this type, energy is stored through chemical reactions between nickel and cadmium materials. These batteries are known for being strong and long-lasting.
• Nickel-metal hydride batteries
  These batteries store energy using special metal materials that can absorb and release hydrogen. They can hold more energy than nickel-cadmium batteries and are more environmentally friendly.

How non-rechargeable batteries store energy

Non-rechargeable batteries, like alkaline batteries, store energy in a similar way but with one big difference.

The chemical reactions inside these batteries are not easily reversible. Once the chemicals are used up, the battery cannot be recharged safely.

Even so, the basic idea of how a battery stores energy remains the same: chemical energy is converted into electrical energy.

What affects how a battery stores energy

Battery capacity tells us how much energy a battery can hold and how long it can power a device. Several things can change a battery’s capacity over time.

• Materials inside the battery
  The types of materials used inside a battery affect how much energy it can store. Different battery designs use different materials, which is why some batteries last longer than others.
• Battery size
  Larger batteries usually store more energy. This is because they have more space inside to hold energy-storing materials.
• Temperature conditions
  Cold weather can make a battery hold less energy and run out faster. Very hot temperatures may allow more energy at first, but they can damage the battery and shorten its life.
• Charging and discharging speed
  Charging or using a battery too quickly can reduce how much energy it can store. Slow and steady charging helps keep the battery healthy.
• Battery age
  As a battery gets older, it slowly loses its ability to store energy. This is a normal process that happens after many charge and use cycles.

Why do we need energy storage batteries?

Energy storage batteries play a key role in modern power systems. They help control electricity supply when demand changes and improve overall energy efficiency. By understanding how a battery stores energy, it becomes clear why these systems are essential today.

• Energy cost savings
  Energy storage allows electricity to be stored when prices are low and used when prices are high.
• Backup power during outages
  Storage batteries provide emergency power for homes, businesses, and critical systems.
• Support for electric vehicle charging
  Energy storage systems help manage EV charging demand and reduce pressure on the electrical grid.
• Power grid stability
  Energy storage batteries balance electricity supply and demand by storing extra power and releasing it when needed.
• Better use of renewable energy
  Batteries store excess solar and wind energy and provide power when renewable production is low, making clean energy more reliable.
• Lower peak electricity demand
  Stored energy can be used during high-demand hours, reducing strain on the grid and lowering energy costs.

Conclusion

Understanding how batteries store energy makes it easier to use batteries safely and correctly. Batteries store energy as chemical energy and turn it into electrical energy when in use. This process happens through chemical reactions inside the battery.

Although battery types are different, the basic way how batteries store energy remains the same. As batteries become more important in daily life and clean energy systems, learning how they work helps users make better and safer choices.

FAQs

How do batteries store and provide electricity?

Batteries store energy by holding electrons in a chemical form. When the battery is used, electrons flow through the circuit and the stored energy turns into electricity.

Why do different batteries store different amounts of energy?

Different batteries use different materials and designs, which affect how a battery stores energy and how long it can power a device.

Why does a battery lose energy over time?

A battery loses energy over time because the materials inside slowly wear out after many charging and discharging cycles. As these materials break down, how a battery stores energy becomes less efficient, and the battery can no longer hold as much power as before.

How long can a battery store energy without being used?

A battery can keep stored energy for many months or even years if it is not used. However, small chemical reactions still happen inside the battery, so how a battery stores energy slowly becomes weaker over time, even when the battery is sitting unused.

Why do rechargeable batteries last longer than single-use batteries?

Rechargeable batteries last longer because their chemical reactions can be reversed, allowing energy to be stored again.

What happens when a battery is fully discharged?

When a battery is fully discharged, most of its stored chemical energy has been used to produce electricity. At this point, how a battery stores energy is temporarily exhausted, so the battery must be recharged or replaced before it can power a device again.

Do batteries store AC or DC electricity?

If a device uses a battery, it works with DC power because all batteries provide direct current. Even if you plug the device into a wall outlet, the power inside the device is still DC, because the AC power from the outlet is changed into DC before the battery or device uses it.

Why can't we store AC in batteries?

Batteries can only store direct current because their chemical reactions allow electrons to flow in one direction. AC keeps changing direction many times per second, which cancels out the charging process and can damage the battery.
