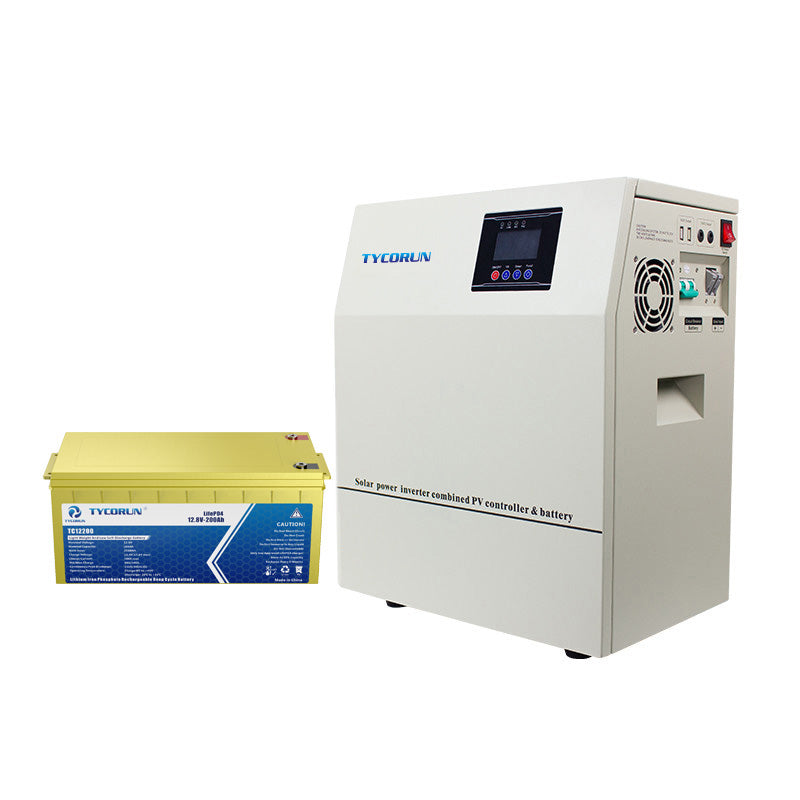

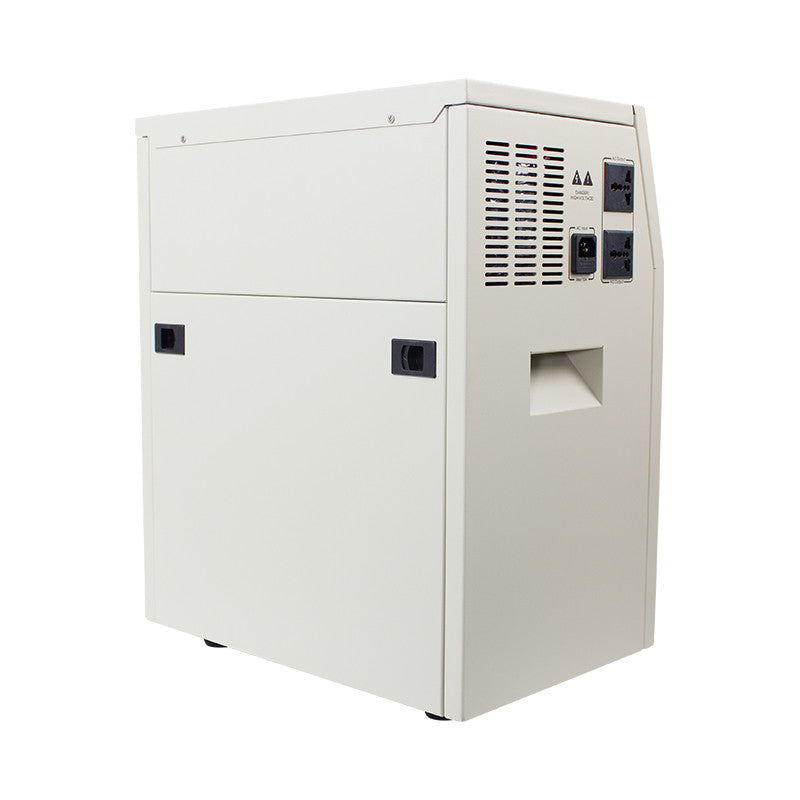

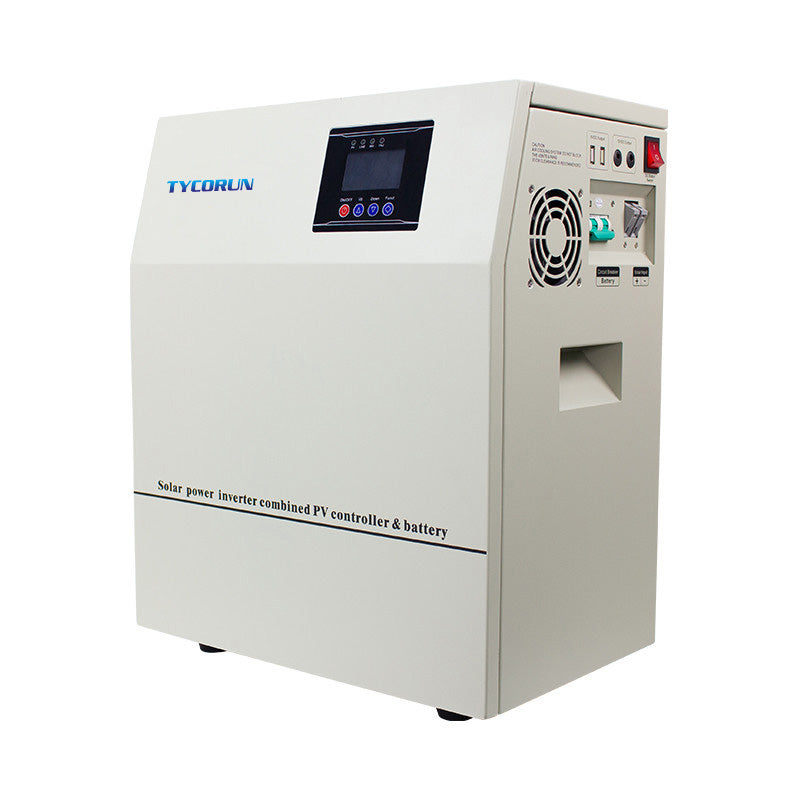

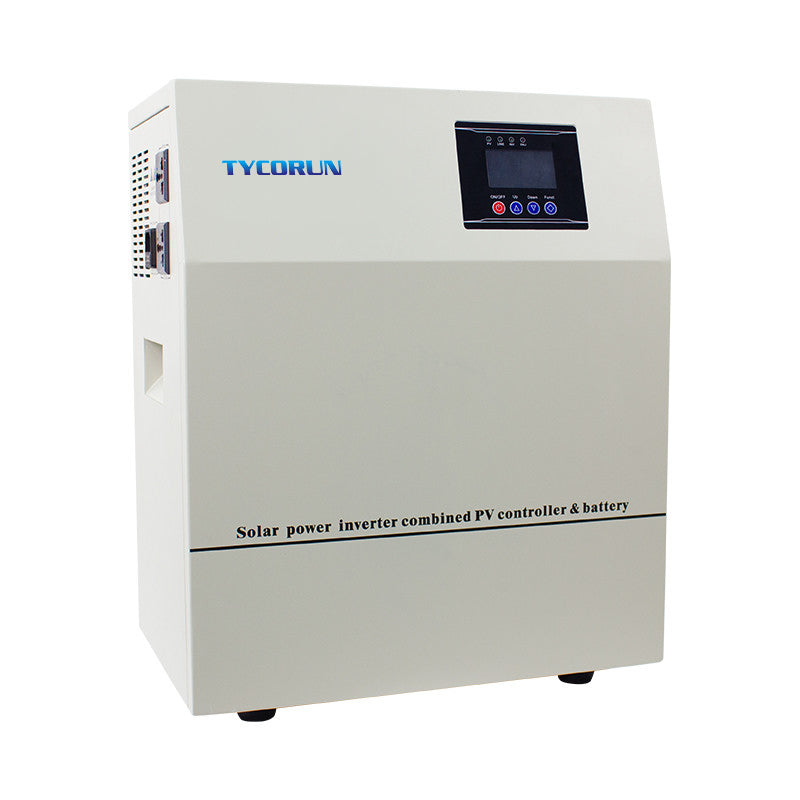

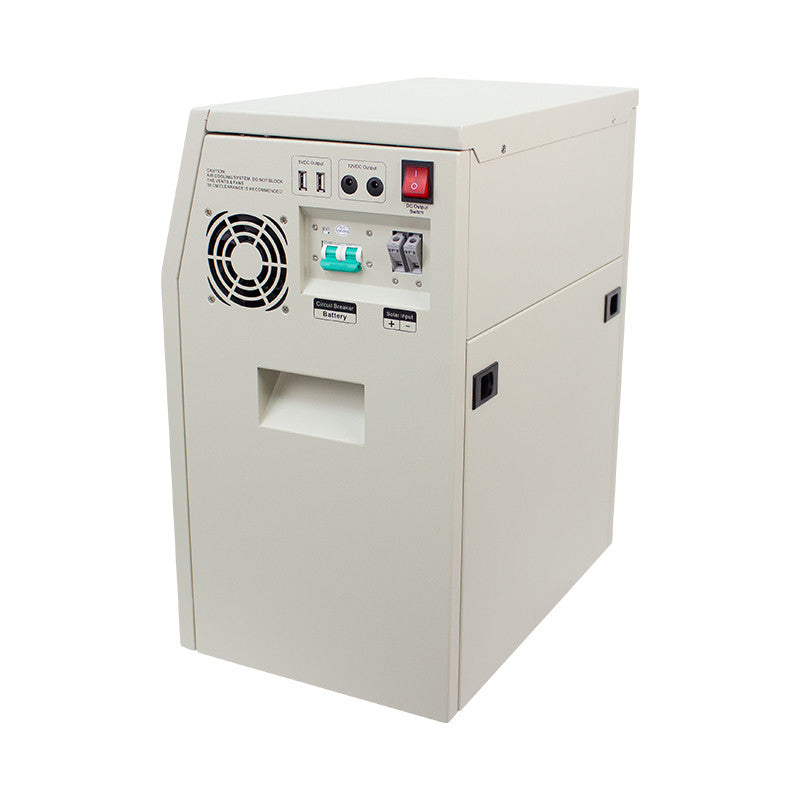

Tycorun 1200W Off Grid All In One LiFePO4 Battery Solar Power System For Home
|
Tycorun 1200W Off Grid All In One LiFePO4 Battery Solar Power System For Home Technology Parameter Sheet |
|
|
Model |
TC-SHS-1200 |
|
Battery rated voltage |
12.8VDC |
|
Battery Type |
Lifepo4(10 years) |
|
Battery Capacity |
100Ah |
|
Inverter |
|
|
Rated power |
1000W |
|
Input voltage range |
145-275VAC |
|
Input frequency |
45-65Hz |
|
Output voltage |
220VAC |
|
Output frequency |
50/60Hz |
|
Output wave |
Pure Sine Wave |
|
Specification of built-in battery |
1*100AH/12.8V |
|
Charge current |
10A |
|
MPPT Solar input |
|
|
MPPT Voltage Range |
15V-150VDC |
|
PV Power |
400W |
|
Rated charge current |
30A(Max) |
|
MPPT efficiency |
≥99% |
|
Floating charge voltage |
14.4VDC |
|
DC output |
|
|
Low voltage recovery voltage |
13.4VDC |
|
Low voltage protection voltage |
11.4VDC |
|
5VDC USB output |
2units/MAX 2A |
|
12VDC output ports |
2units/MAX 2A |
|
Heat dissipation/Cooling |
Temperature control by intelligent exhaust fan |
|
Operating ambient temperature |
-20 - +50℃ |
|
Storage ambient temperature |
-25 - +55℃ |
|
Operating/Storage ambient |
0-90% No condensation |
|
External size:W*D*H(mm) |
412*274*507 |
|
Package size:W*D*H(mm) |
512*375*616 |
|
Weight (kg) |
31 |
OEM & CUSTOMIZATION
Product specifications, interfaces and system configurations can be customized for different applications.
TECHNICAL SUPPORT
Get support with product selection, system integration, setup and after-sales service.
GLOBAL DELIVERY SUPPORT
Shipping and project delivery are arranged according to product type, order size and destination.
QUALITY & AFTER-SALES
Warranty, technical guidance and after-sales support are provided according to the product and project scope.
Tycorun 1200W Off Grid All In One LiFePO4 Battery Solar Power System For Home
Read more
TYCORUN PRODUCT PARAMETER
INTERIOR STRUCTURE
PRODUCT ADVANTAGE
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
Product Performance
1. This is a multi-function inverter/charger/solar system.
2. Combining functions of inverter, solar charger and battery to offer uninterruptible power support with portable size.
3. LCD display, configure input voltage range for home appliances and personal computers, configure battery charging current based on applications, configure AC/Solar Charge priority.
4. Compatible to mains voltage or generator power, auto restart while AC is recovering.
5. Users can flexibly match battery capacity, standard battery packages or external batteries.
6. It combines a wide PV input range MPPT controller, can convert solar energy from PV to loads directly.
7. Integrated design, Easy transportion and installation.
8. Overload/Over temperature/short circuit protection.
9. Our product are CE ,ROHS, ISO, FC approved, meeting various certification requirements for different countries.
