All you should know about battery hookup - ultimate guide to hook up batteries



A battery is an electronic device that stores energy. The energy is stored in chemical energy and converted into electrical power. The most used batteries nowadays are best lithium batteries. While discharging of Li-ion the lithium ions travels from anode to the cathode and it repeats the vice versa process while charging the lithium ion battery. Therefore, it is a kind of chargeable battery. These batteries have a high energy density, and it has an extremely low self-discharge rate of only 3.5% per month.

tycorun 12v 100ah lithium


Li ion batteries are an integral part of any power appliance nowadays. One cannot think of running an electronic device without the help of batteries. So how does the batteries hook up? Knowing how the battery hookup works will help you use the batteries more correctly to extend its life. This article will provide you with comprehensive information about battery hookup so that you can understand everything about battery hookup in depth.

1.What is the battery hookup? Are all battery hookup same?

The battery hookup is a way of hooking up two or more batteries together as a battery pack, by which the voltage or capacity of the batteries can be changed. The batteries can be hooked up in three ways. This article discusses these terms for a proper understanding of batteries and their usage. The battery hookups are conductors used to carry current between components in a battery circuit, they are located in the electrodes of a battery. From these hooks up, one battery can connect with the other.

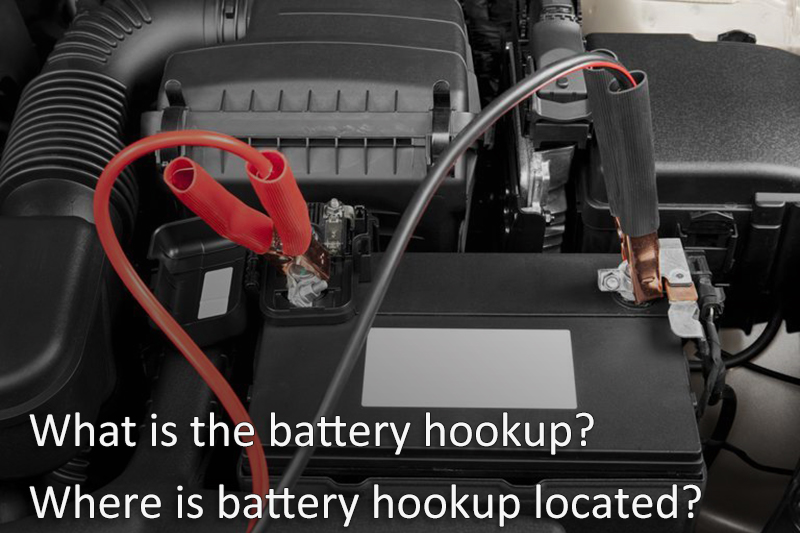

What is the battery hookup Where is battery hookup located


The term series connection of batteries refers to the links of the battery's positive terminal to the negative terminal of another battery; in batteries, current and voltage flow from higher potential to lower potential. The higher potential is positive, and the lower potential is negative. For instance, engineer is connecting batteries in series connection. He has six batteries each having specifications of 12V and 30Ah, for the proper hook up of batteries in series batteries must have equal voltage (12V) and capacity rates (30Ah).

Batteries connected in series cannot increase the overall capacity but only increase the overall voltage. To organize the batteries correctly, make sure the positive terminal of one end of battery is connected to the negative terminal of the other end of battery. Repeat the whole process until all the batteries are done. Afterwards, join a wire on the first battery's anode and to the end battery's cathode. Secondly, the term parallel connection of batteries refers to the connection of a battery when a positive terminal of one battery is connected with the positive terminal of another battery.

This type of connection is known as a parallel connection of batteries. This method of hooking up batteries increases the capacity of the battery pack. Furthermore, the third type of connection is known as a series-parallel connection. This type of battery hookup combine both series and parallel connections. One must take care by connecting the batteries in a wrong way or in a poor way that may result in the explosion of the battery and injury.

2.How do you hook up lithium-ion batteries?

Lithium-ion batteries are ubiquitous in the lives of many billion people around the globe. They are used from UPS to trolling motor and as golf cart batteries and RV batteries. There are also three hookup methods for lithium ion batteries. When hooking up lithium batteries in series, attention should be paid to voltage control. In a series circuit, the given voltage must be equal to the sum of all battery voltages before the battery can work normally. You first need to connect one end of the wire to the cathode of a lithium battery, connect the other end of the wire to the anode of another lithium battery, and connect all lithium batteries in turn until all lithium batteries are connected in the same circuit, and then apply voltage to the circuit.

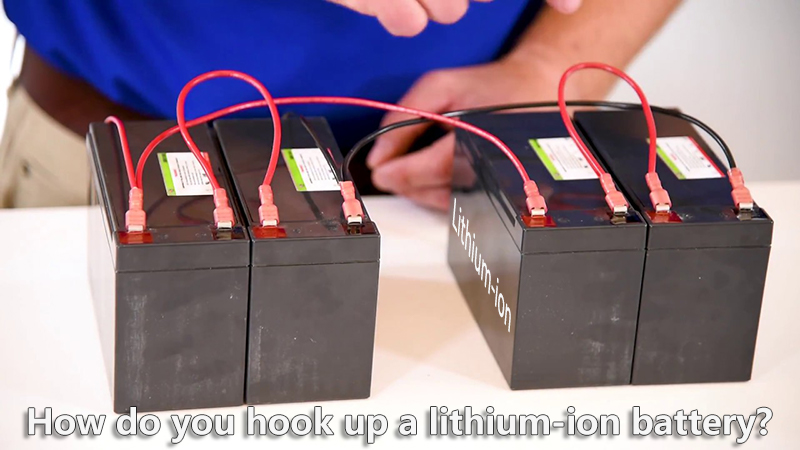

How do you hook up a lithium-ion battery


The method of connecting lithium batteries in parallel is to connect the cathode of one battery to the anode of another, and the anode to the another’s cathode. The parallel combination of batteries needs to be paired to ensure that the parameters such as voltage, built-in, and capacity are consistent, so as to ensure the best efficiency after battery combination. After being connected in parallel, the voltage of the lithium battery pack remains unchanged, and it is still the voltage of the single cell, and the battery capacity is the sum of the parallel batteries. Therefore, the function of the parallel connection of lithium batteries is to increase the capacity of the battery pack in order to achieve the required working time.

You should follow the following guidelines when connecting lithium batteries in parallel:

  • You must avoid the connections of batteries with entirely different chemistries. For instance, you cannot use ternarylithium-ion cells with a lithium iron phosphate battery. This is because these batteries are made with other chemistries.
  • While connecting the batteries in parallel connection, the voltage and ampere-hours must be same for all the batteries connected together.
  • Isolation fuse must be used to separate them. It would help if you took this precaution to be safer.
  • Connecting yourbatteries in parallel may require a number of things. Two or more batteries of the same voltages and specs to guarantee that the cells are adjusted, hence, maximizing the in overall utilization time.

3.What color do you hook up first on a battery? Is battery hookup red or black first?

What color do you hook up first on a battery Is battery hookup red or black first


Red battery cable is the cathode, and black is the anode. To hook up the red first and then black should be connected secondly. While removing the connection, one must remove black first and then red.

4.How to hookup a battery charger?

To connect appropriately, make sure the charger is off. The positive cable of the charger is connected to the positive terminal, which is red, and the negative cable of the charger is connected to the negative terminal in black.

5.How do you hook up a 24 volt battery?

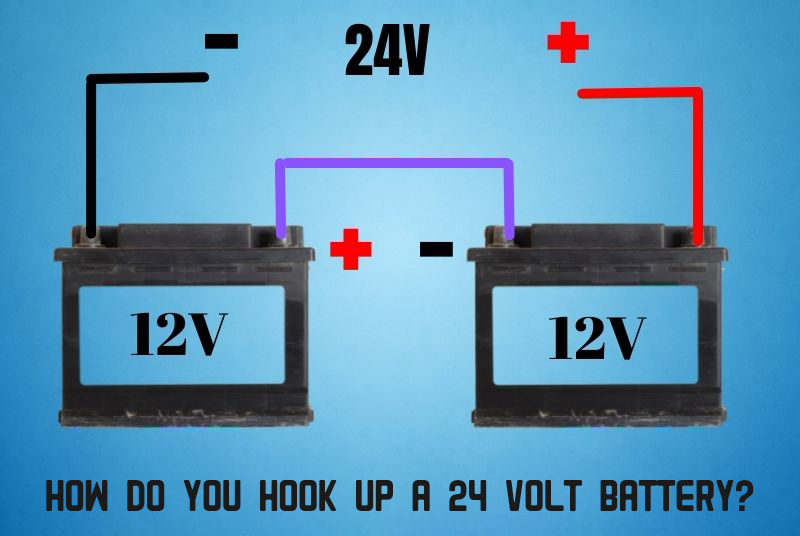

How do you hook up a 24 volt battery


To create the 24V, we need two batteries of 12V in series. Connect the cathode of the first battery to the anode of the second one. The ‘other’ positive and negative terminals will now give you 24 volts.

6.How should RV batteries be wired?

Due to the high requirements for battery capacity of RV batteries, only large-capacity batteries can meet the needs of RVs. Therefore, it is necessary to increase the battery capacity by connecting cells with higher voltage in parallel. At present, the batteries with higher single voltage are lithium iron phosphate batteries and ternary lithium batteries. Among them, the rated voltage of lithium iron phosphate monomer is 3.2V, and the rated voltage of ternary lithium battery is 3.7V.

How should RV batteries be wired What is the RV battery hookup diagram

7.How do you hook up a camper battery?

A camper needs high power batteries; the main issue is the size of the camper. In most cases, the camper comes with a plug so that you can hook that up with the camp power. The camper style is like other RVs and travel trailers made for recreational use.

8.Does battery performance is affected by battery hookup?

According to the study, poor hookups of batteries affect the overall performance of batteries. Due to the constraints of the voltage and capacity of the single battery, in order to meet the high voltage and large capacity requirements of electrical equipment and energy storage systems(such as home energy storage), batteries are usually used in series, parallel or a combination of series and parallel. However, inconsistencies will inevitably occur in the manufacturing process of batteries, and the degree of inconsistency will be gradually enlarged with the prolongation of use time and the increase of cycle life.
