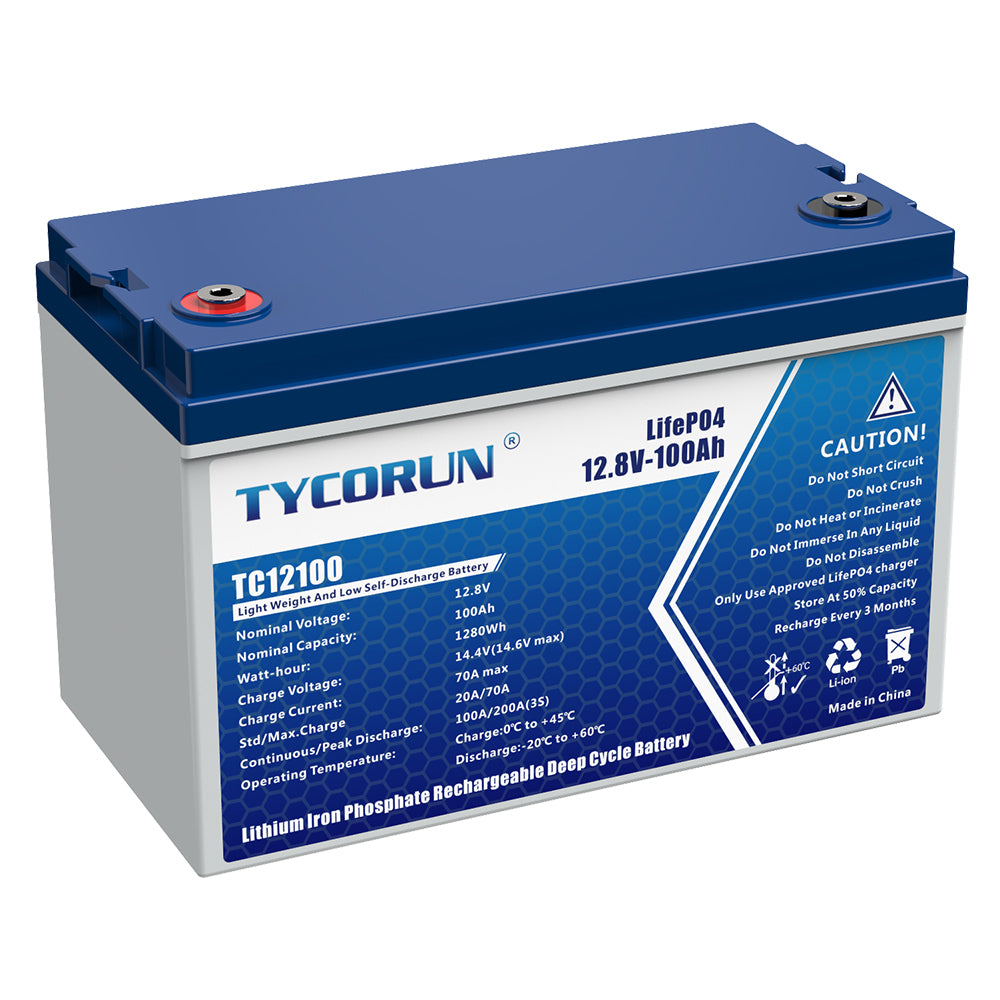

Tycorun 12V 100Ah Lithium Deep Cycle Battery

The strong discharge capacity means that the lithium battery can be discharged with a large current for a long time, which is a huge test for the protection board. Our protection board is written by an engineer, which is one of our core technologies. The more powerful the BMS system is, the better the safety of the lithium battery can be guaranteed. Generally speaking, BMS system provides at least five protections, over-current protection, over-voltage protection, low voltage protection, temperature protection, short circuit protection, etc.

Name

Tycorun 12V 100AH environmental protection lithium iron phosphate battery specifications

Nominal Voltage 12.8V
Nominal Current
100AH
Nominal Capacity 1280Wh
Size:(length×width×height) 328x172x215mm/13x6.8x8.5in
Weight 12.5Kg/27.6Lbs
Cycle Life >4000cycle(0.2C,25℃,90%DOD)
Ingress Protection Rating (IP65>IP55) IP65 (Highest level of protection from dust, protection from low pressure water spraying for 3 minutes)
Standard Charge Voltage 14.6±0.2V
Standard Charge Current 20A,5℃(41℉)<@T<55℃(131℉)
Allowed Max. Charge Current 100A,5℃(41℉)<@T<55℃(131℉)
Standard Discharge Current 100A,-15℃(5℉)<@T<70℃(158℉)
Allowed Max. Continuous Discharge Current 150A,-15℃(5℉)<@T<70℃(158℉)
Allowed Max. Pulse Discharge Current(long pulse) 200A,@T<3min or @T<70℃(158℉)
Allowed Max. Pulse Discharge Current(short pulse) 300A,@T<3s or @T<70℃(158℉)
Battery Ceryifications UN38.3(Battery)、Msds(Battery)、ios9001 (Brand Certification), etc
Long Cycle Life
High Safety
High Energy Density
Stable Discharge
Low Maintenance Cost
Environmentally Friendly

OEM & CUSTOMIZATION

Product specifications, interfaces and system configurations can be customized for different applications.

TECHNICAL SUPPORT

Get support with product selection, system integration, setup and after-sales service.

GLOBAL DELIVERY SUPPORT

Shipping and project delivery are arranged according to product type, order size and destination.

QUALITY & AFTER-SALES

Warranty, technical guidance and after-sales support are provided according to the product and project scope.
