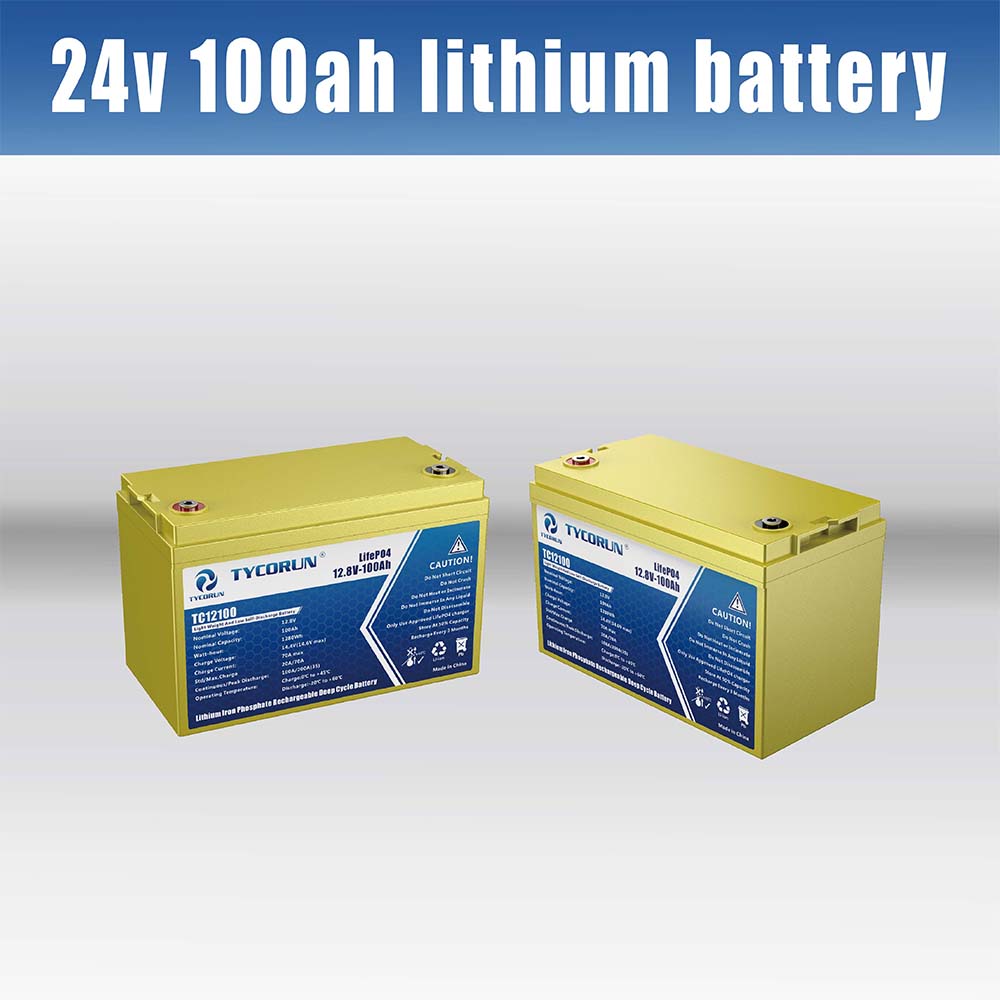

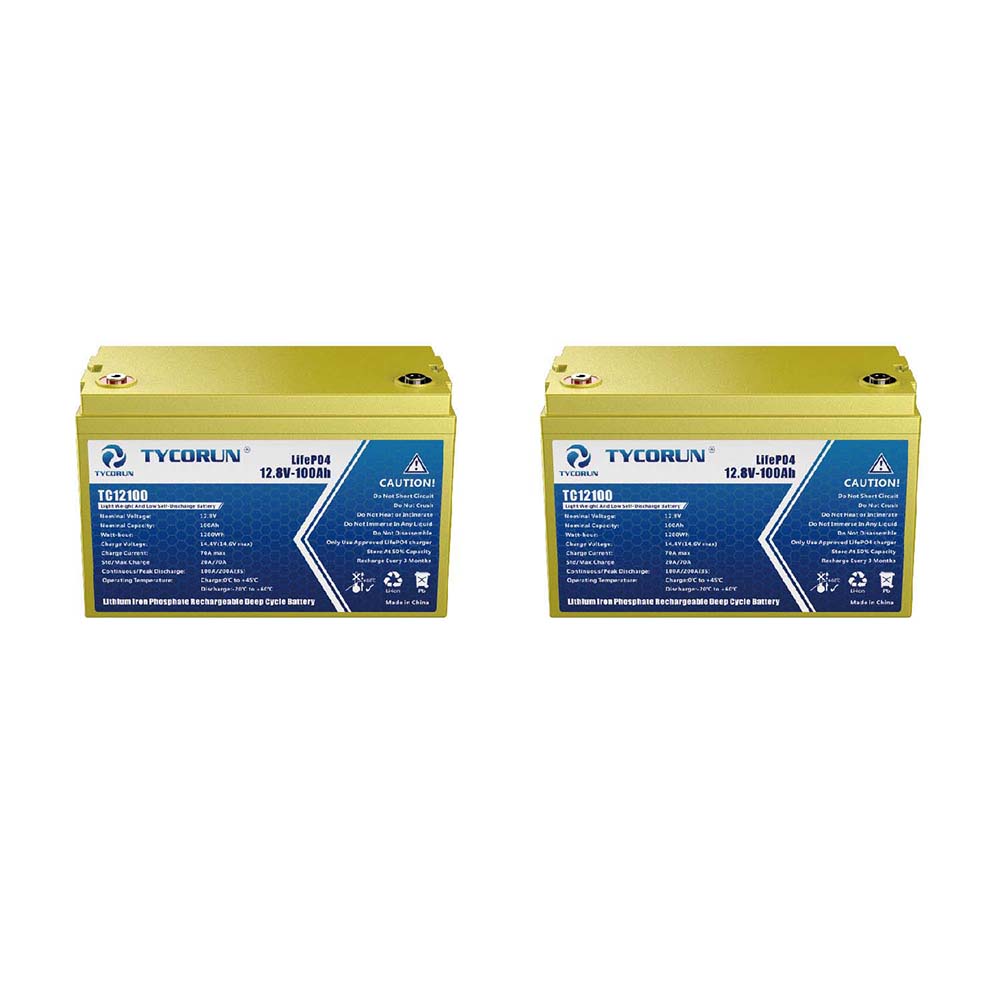

Tycorun 24V 100AH environmental protection lithium iron phosphate battery pack is composed of two 12V 100AH batteries connected in series. The following is the specification of a single Tycorun 12V 100AH environmental protection lithium iron phosphate battery.
Name |
Single Tycorun 12V 100AH environmental protection lithium iron phosphate battery specifications |
Nominal Voltage | 12.8V |
Nominal Capacity: |
100Ah@0.2C |
Energy | 1280Wh |
Internal Resistance | ≤40mΩ |
Cycle Life | >4000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity. |
Months Self Discharge | ≤3.5% per month at 25 ℃ |
Charge Voltage | 14.6±0.2V |
Charge Mode ( CC/CV ) |
At 0 ℃ ~45 ℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A. |
Charge Current | 20A |
Max Charge Current | 100A |
Discharge Current | 100A |
Max Continuous Current | 150A |
Max Pulse Current | 300A(<3S ) |
Disxcharge Cut-off Voltage | 10.8V |
Charge Temperature | 0 ℃ to 45 ℃ (32 ℉ to 113 ℉ ) @60±25% Relative Humidity |
Disxcharge Temperature | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉ ) @60±25% Relative Humidity |
Storage Temperature | 0 ℃ to 45 ℃ (32 ℉ to 113 ℉ ) @60±25% Relative Humidity |
Water Dust Resistance | IP65 |

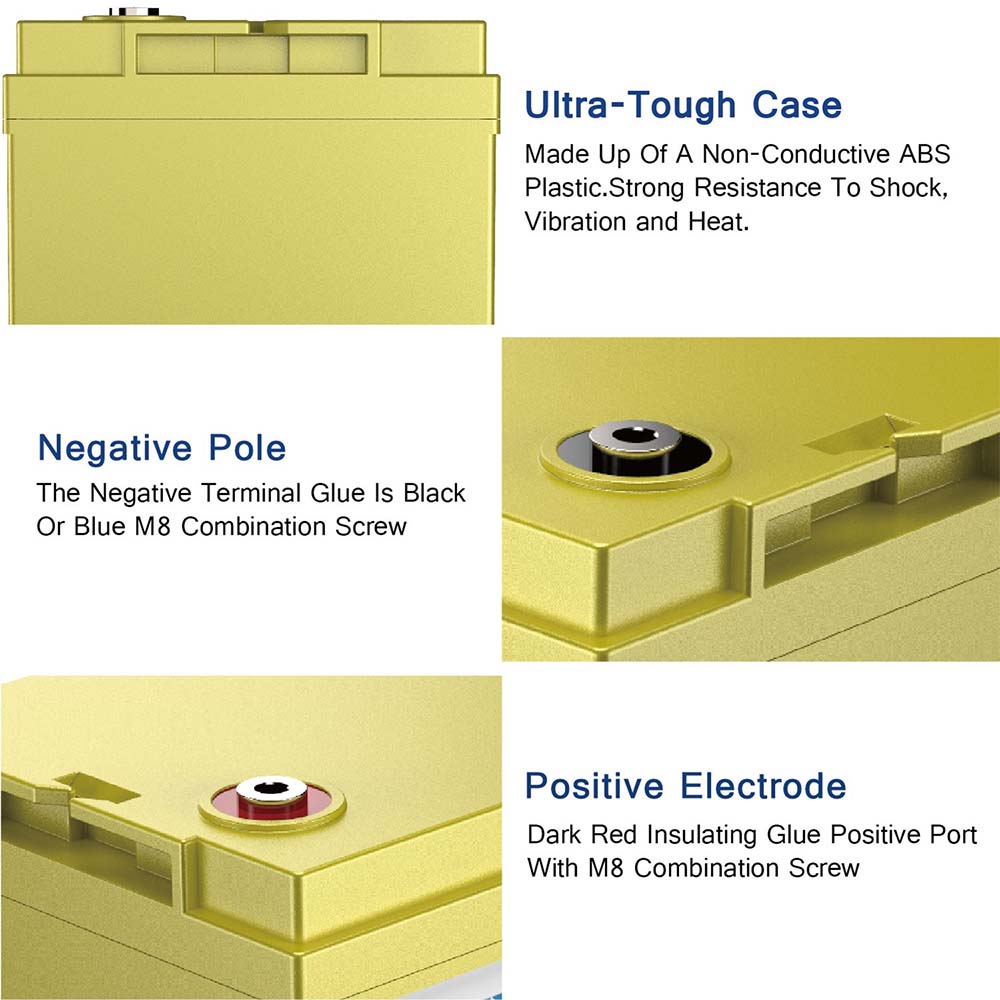

Plastic Case | ABS |

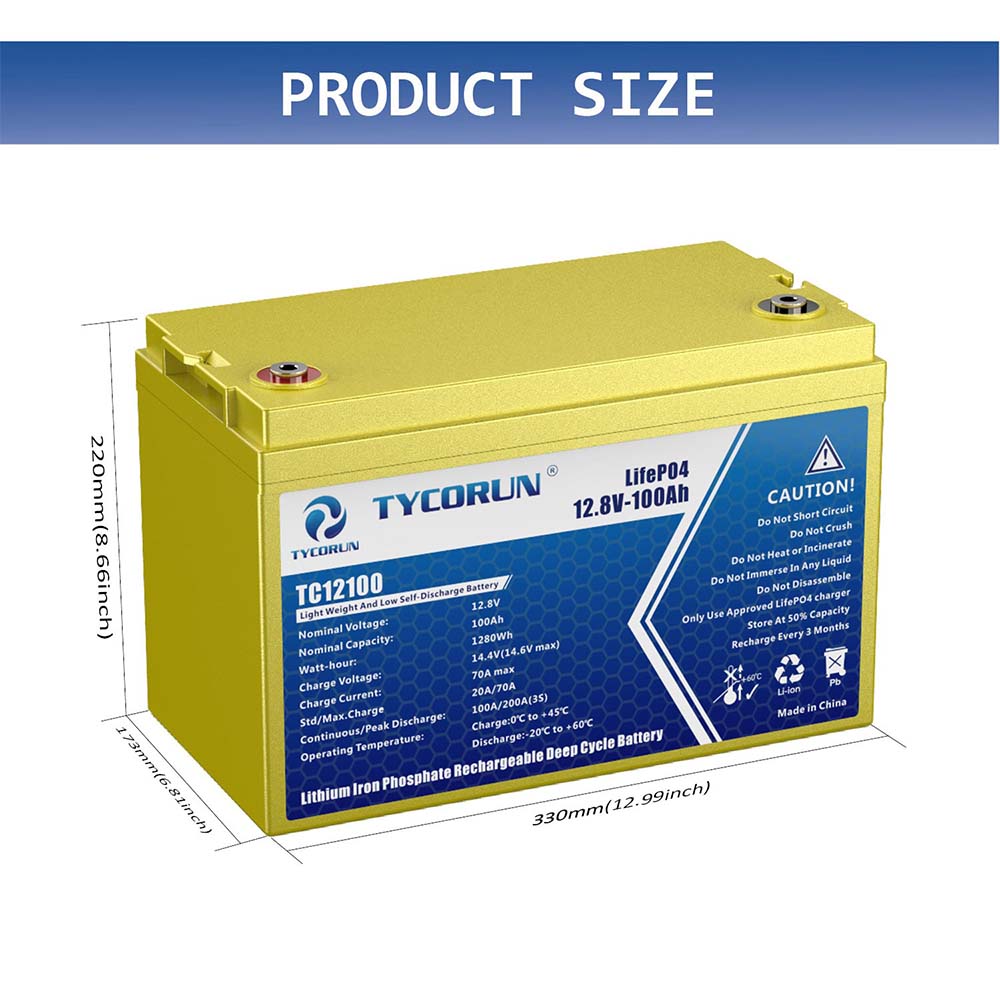

Dimension(L*W*H) | 330*173*212mm |
Weight | Approx. 12.5Kg |
Terminal | M8 |
