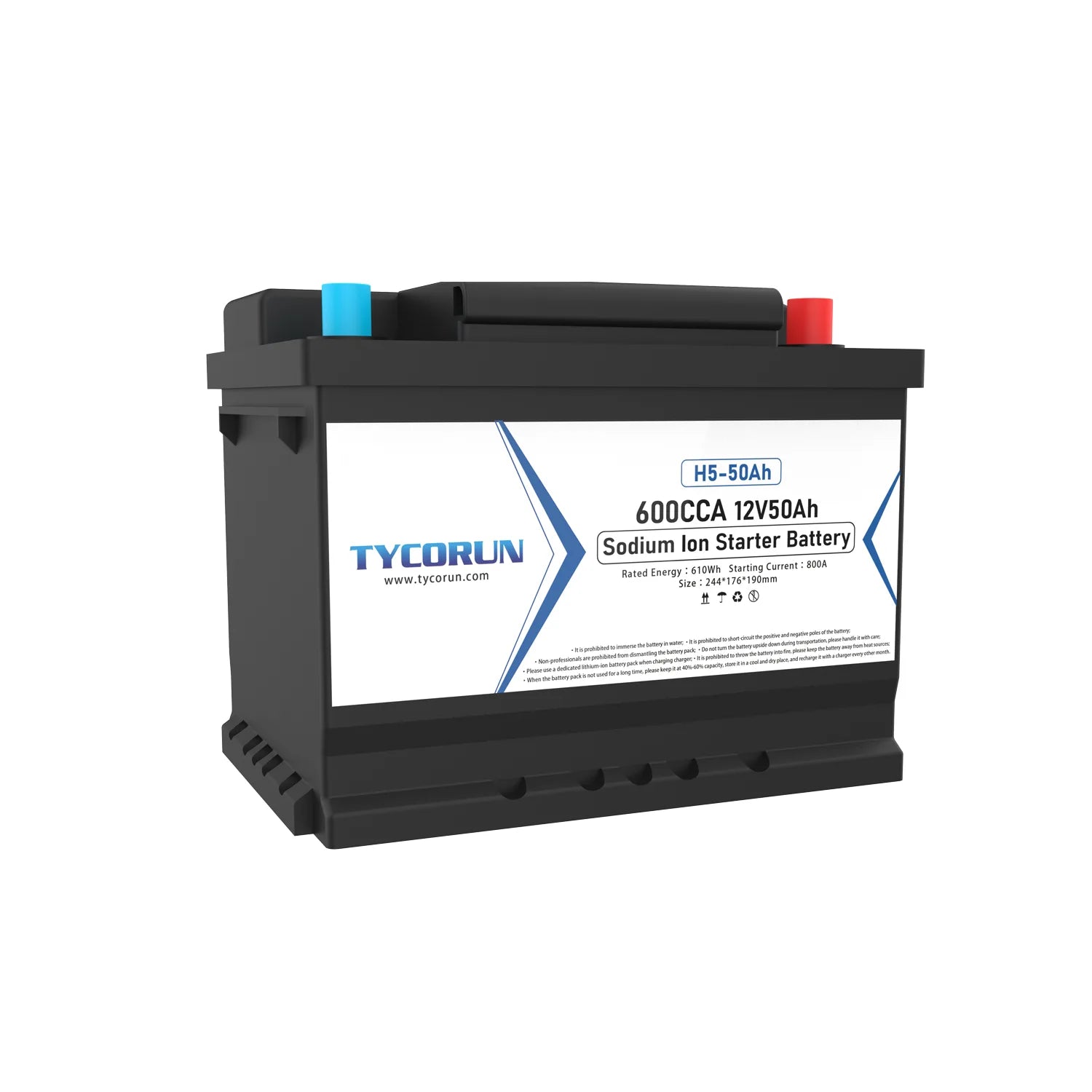

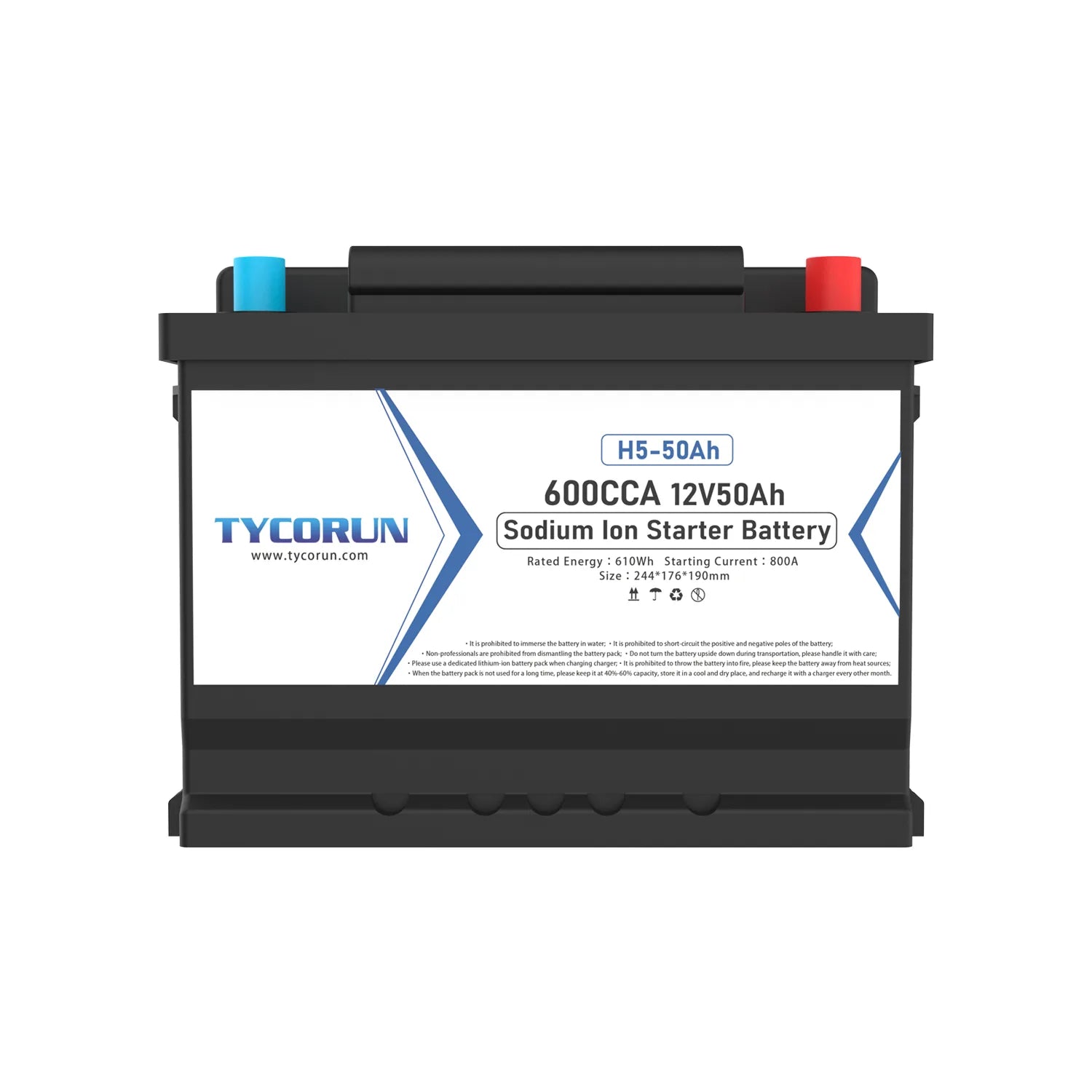

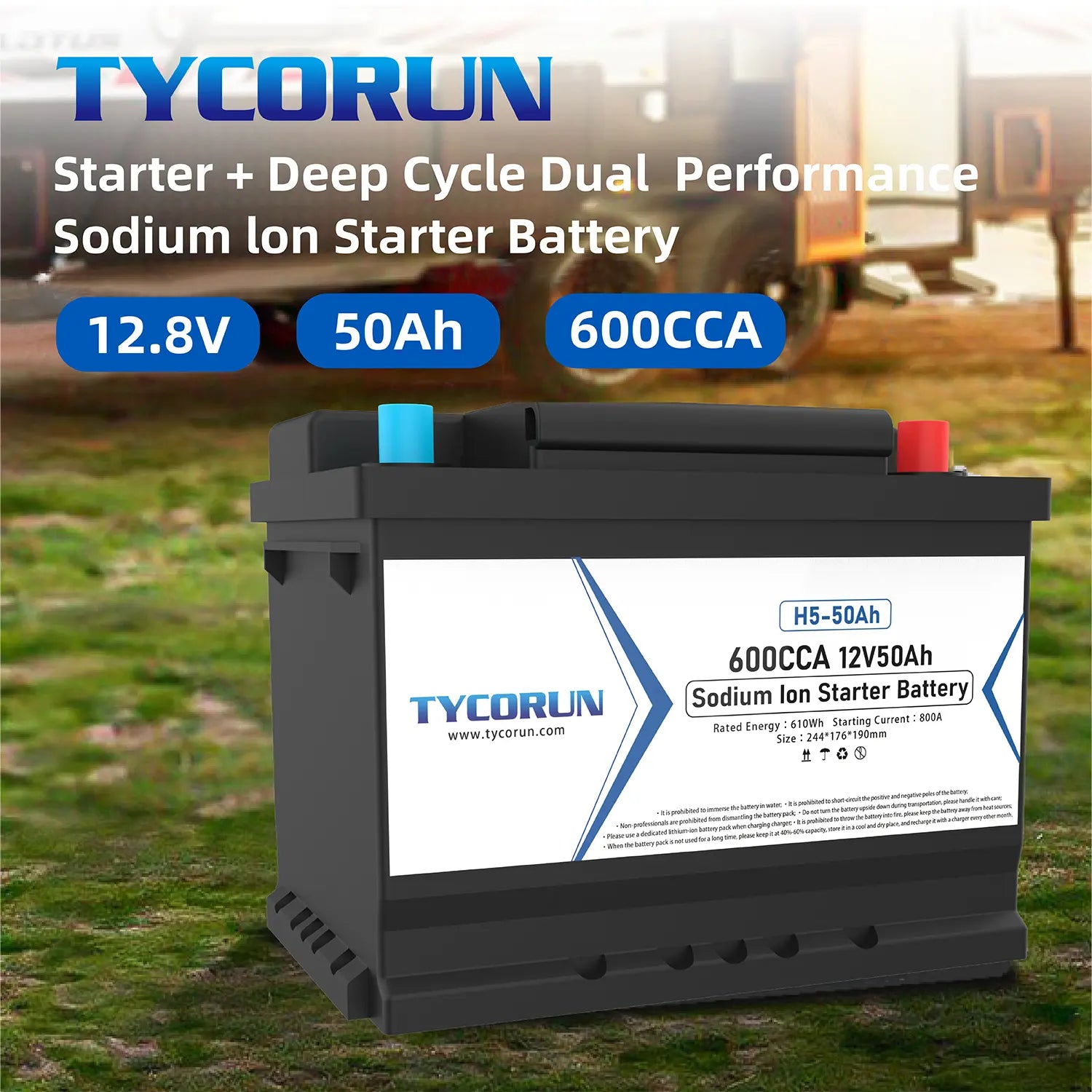

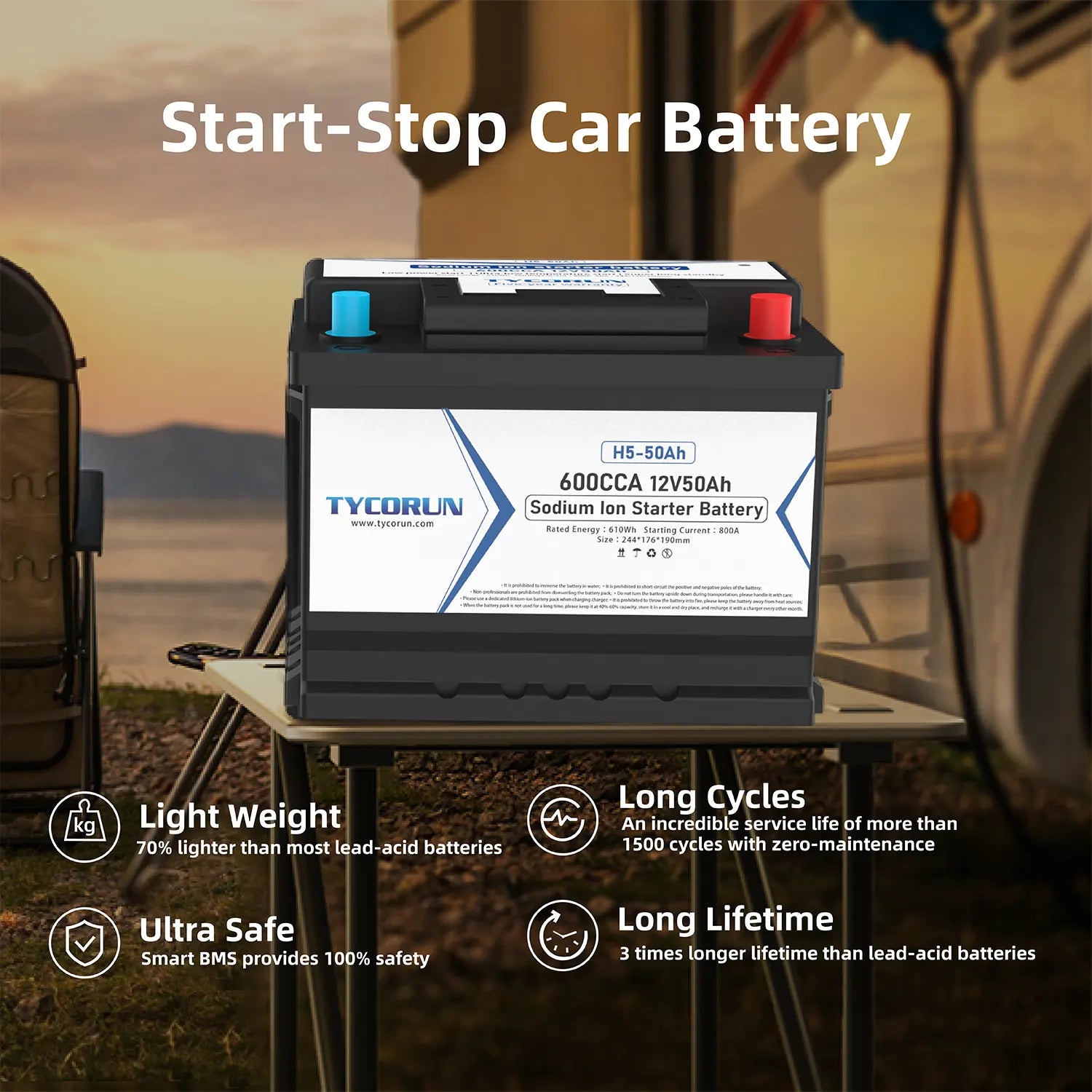

The stop start car batteries 12v 50AH 600CCA sodium ion battery can provide unparalleled performance and efficiency. With a higher energy density and a longer service life, it ensures a fast and reliable...
The stop start car batteries 12v 50AH 600CCA sodium ion battery can provide unparalleled performance and efficiency. With a higher energy density and a longer service life, it ensures a fast and reliable start at each ignition. It is also able to provide more sustainable and environmentally friendly power solutions for your vehicle. Use the stop start car batteries to enhance your driving experience.

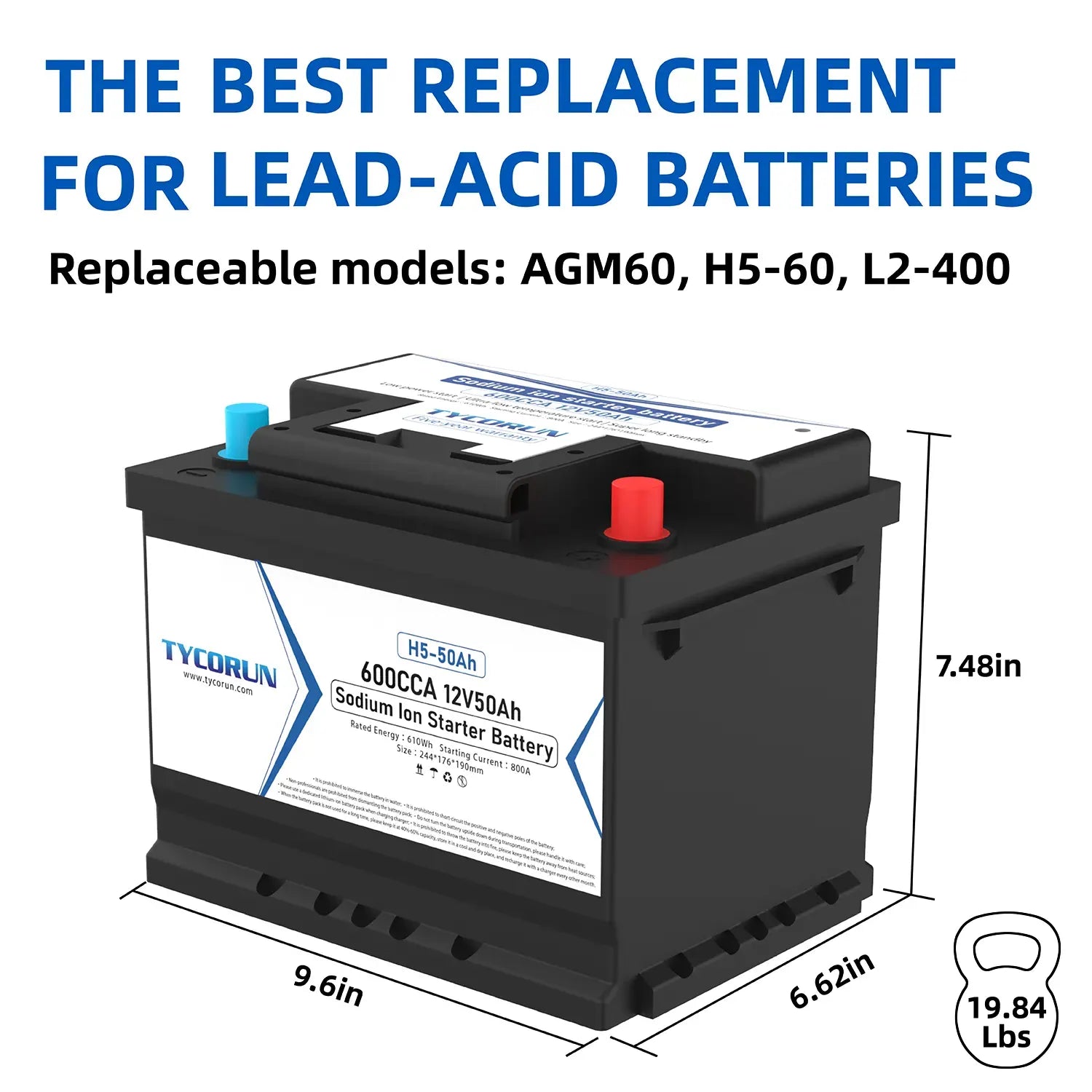

Stop start car batteries 12v 50ah 600cca sodium ion battery dimension
Size
244*176*190mm
Terminal polarity
Left-anode, Right-cathode
Alternative model
AGM60, H5-60, L2-400
Stop start car batteries specifications
Items
Characteristics
Nominal capacity
50Ah@charge 16.0V/discharge 8.0V
42Ah@charge15.4V/discharge9.2V
30Ah@charge 14.0V/discharge 10.0V
Mix. capacity
40Ah@charge 15.4V/discharge 9.2V
28Ah@charge14.0V/discharge 10.0V
Nominal energy
610Wh
Combination structure of battery
32140 - 4S5P
Nominal voltage
12.2V
End of discharge voltage
10.0V
Standard charge voltage
14.0V
Standard charge current
10A
Allowed Max. Charge current
40A
Peak charge current
100A@100 Sec
Standard discharge current
50A
Peak discharge current
800A@3 Sec
Internal Resistance
≤6.0mΩ
Weight
Approx. 9.0kg
Ex-factory capacity
Approx. 50% SOC
Operation temperature
Discharge
-40℃~60℃
Charge
-10℃~55℃
Storage environment
≤1Month
-20~+60℃、5~75%RH
≤6Month
10~+45℃、5~75%RH
Recommend environment
15~+35℃、5~75%RH
Stop start car batteries WARNING
Please read and follow the handling instructions before use. Improper use may cause heat, fire,rupture, damage or capacity deterioration of the battery.
Battery must be far away from heat source, high voltage, and no exposed in sunshine for long time.
Never throw the battery into water or fire.
Never reverse two electrodes when use the battery.
Never connect the positive and negative of battery with metal.
Never knock, throw or trample the battery.
Never disassemble the battery without manufacturer's permission and guidance.
Never use mixed with other type of battery.
Attention
Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some function and reduce the life.
When battery run out of power, please charge your battery timely (≤15day).
Please use the matched or suggested charger for this battery.
If battery emit peculiar smell, heating, distortion or appear any abnormity, please stop using.
If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately.
TYCORUN Lithium will ship your batteries for free anywhere in the lower 48 US States. Batteries ship UPS ground freight and will arrive in 5-7 days to most of the US. You will receive an email with a tracking number after your order ships. The USPS does not allow for batteries to be shipped to Post Office boxes (PO Box). Please use a street address. Larger batteries (over 300 watts) require hazmat shipping. We pay the cost of Hazmat and freight (typically $90 to $150 a battery). You pay $0 for shipping. Shipping to Alaska and Hawaii is higher due to federal law that requires that batteries ship Air Freight and have Hazmat protection. Shipping to Canada includes duty, GST and import fees.
Shipping to Canada?
TYCORUN Lithium can ship to most Canadian provinces served by UPS or FedEx. Canadian shipping is calculated at checkout and we pay for duty & GST fees for you. The fastest way to calculate your estimated shipping cost outside of the contiguous United States (“Lower 48”) would be to add the desired product(s) to your cart on our site and enter your shipping information. This will not complete the transaction, but will give the system enough information to calculate the cost. The total price and cost breakdown should update with the new totals.
Can I get my battery shipped to me faster?
TYCORUN Lithium can ship to most Canadian provinces served by UPS or FedEx. Canadian shipping is calculated at checkout and we pay for duty & GST fees for you. The fastest way to calculate your estimated shipping cost outside of the contiguous United States (“Lower 48”) would be to add the desired product(s) to your cart on our site and enter your shipping information. This will not complete the transaction, but will give the system enough information to calculate the cost. The total price and cost breakdown should update with the new totals.
1.How safe are Lithium Ion Batteries? Our LiFePo4 batteries are considered to be safe, non-flammable and non-hazardous by international and federally regulated standards.
2.What can I use a Lithium Battery for? Our Batteries are commonly used for marine, RV and golf cart applications. You can use our lithium batteries for any application that would normally use a single or multiple lead acid, GEL or AGM batteries.
3.How do I change my batteries to Lithium? After you take out your old batteries, place our batteries in the same way. You can use the same cables to reconnect into the Lithium Battery.
4.How do I charge a Lithium battery? Our lithium ion technology uses the latest and most advanced built-in battery protection system to prevent damage to the battery. You may utilize a standard charger for our products, although in some cases a lithium charger may be required to charge the batteries.
5.What battery do I need for my RV or Camper Van? The industry standard house battery size used in most RVs, Campers, and #VanLife builds is the 12v 100Ah battery. This is a drop in replacement for AGM and most lead acid batteries. If you are charging off your engine's alternator we recommend a Victron DC-DC smart charger. If charging off solar panels we recommend a Victron Smart Solar charge controller, or if you have a solar charge controller choose the lithium setting. A handy size chart for number of batteri
Inverter FAQ 1.Is a 3000W inverter safe? A 3000W inverter is generally safe, provided it is installed and used correctly. Following our user manual, purchasing recommendations, and local electrical regulations are key to ensuring safety. Make sure the inverter is not exposed to adverse environmental conditions such as high temperatures, high humidity, or direct sunlight, and keep it away from liquids to enhance safety. Additionally, avoid inserting metal objects into the inverter's ventilation ports and disconnect the power supply before operation.
2.Where can a 3000W inverter be used? A 3000W inverter is suitable for various applications, including but not limited to home backup power, solar power generation, camping and outdoor activities, and commercial use.
3.How do you use a 3000W inverter? Place the inverter in a well-ventilated location away from high temperatures and humidity. Connect the appropriate DC power source to the inverter's DC input port. Connect the devices you want to power to the inverter's AC output ports. Turn on the inverter, and monitor the indicator lights to check the operational status. During use, regularly inspect the inverter to ensure it is operating correctly.
4.How long can a 3000W inverter be used? The lifespan of a 3000W inverter varies depending on its quality and usage. Typically, it can last between 5 to 15 years. Regular maintenance and proper usage can extend the inverter's lifespan. Higher-quality inverters tend to be more durable and provide longer-term reliability.
5.How do you connect a 3000W inverter to a battery? Ensure the battery is in good working condition and has the required voltage and capacity. Use the correct cables to connect the positive/negative terminal of the battery to the positive/negative terminal of the inverter's DC input. Securely fasten the cables, ensuring they are not damaged or loose. Turn on the inverter to begin converting the battery's DC power into AC power.
Growing greenhouse gas emissions are becoming a topic of discussion. In the family, the car is a common means of transportation. How to save on travel costs and reduce greenhouse gas emissions?
This led to the creation of start stop car batteries that automatically stop car engines as the car stops and kick starts back on when the auto driver steps on the throttle to move the car. This article introduce the stop start car batteries and how to choose the best ones.
1. What is start stop technology
The start stop technology is an automated system that automatically shuts down the car engine during a momentary or prolonged stop while driving and instinctively puts the engine back on when the car is ready to move. In contrast, start stop batteries extend beyond just providing short bursts of high energy needed to ignite the engine.
During inactivity, when the vehicle is stationary with the engine off, this advanced device can also provide energy for a variety of electrical needs. It exhibits characteristics of substantial battery capacitance, facilitating rapid charging and discharging cycles.
During engine stasis, it ensures uninterrupted power supply to the electronic system, ensuring instantaneous availability for subsequent activation. Before start stop technology was introduced car owners were used to leaving the car engine running, while stuck in traffic, a practice that causes high fuel consumption and increased running costs. The start stop technology was designed to mitigate this situation.
2. What are start stop car batteries
Start stop car batteries are auto battery types designed for use with start stop technology. Batteries with stop start technology often require high power bursts and high peak charge current at intervals, which could damage or reduce the efficiency level of a conventional battery.
Start stop batteries are specially designed to handle such frequent cycling. When the vehicle switches between on and off, stop start car batteries have the capacity to keep supplying the electronic components of a car with enough power so they remain active.
3. How do start stop car batteries work
From the definitions above, you already know start stop technology is an automatic system. Therefore like another form of automation you might have come across, car batteries for stop start technology are activated by an action or trigger.
It is the brake that will send a signal to the stop start system in your car that the car engine needs to be turned off. Similarly, for your car engine to switch back on automatically, a signal has to be sent back to the stop start system that the engine needs to turn on. In this case, the car throttle will send that signal.
In urban traffic, the start stop system significantly reduces fuel consumption. Due to the apparent economic savings, the start stop car batteries are becoming increasingly popular and being implemented in more vehicles.
4. What is the difference between a start and stop battery and a normal battery
Here are the key differences between a start and stop car battery and a normal battery:
Cost
Compared to normal batteries, stop start batteries are designed with advanced technology. As a result, they are more expensive.
Durability
As you may have already predicted, stop start car batteries are designed for longevity. This is because start stop system is known for constant stop and start.
As a result, a battery that will be compatible with such an advanced level of technology must be able to handle variations in temperature, vibration, and surge in electrical loads. While stop start batteries are built for all these, normal batteries do not have such capabilities.
Cycle life
Start stop car batteries handle frequent cycling better than normal batteries. This constant cycling requires several intense discharges and recharges of batteries that could reduce the performance of a normal battery.

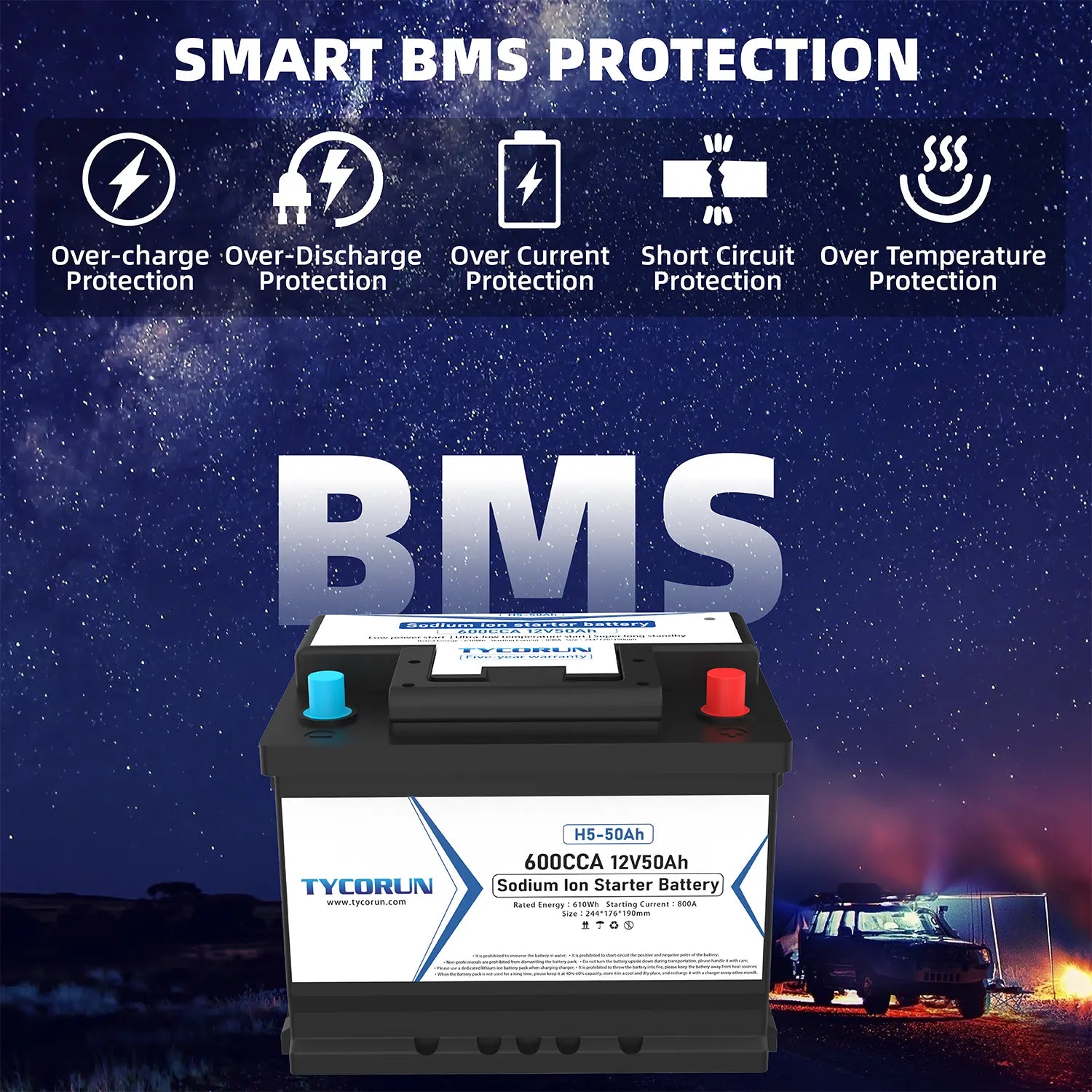

Battery management system
Stop start car batteries are constructed with an advanced management system compared to normal batteries. This management system ensures that a stop start car stays efficient by monitoring the battery's temperature, voltage, and charge status.
5. What are the types of start and stop car batteries
There are two main start and stop car battery types: Lead acid and lithium-ion. The lead acid battery is further sub-categorized into Gel, enhanced flooded battery (EFB), and absorbed glass mat (AGM). Sodium battery are the popular one currently.
① Lead acid vs lithium start stop battery - which is better
For our comparison, I will start by listing the differences between these two types of batteries and then draw a conclusion on which is better.
Life cycle
When it comes to the life cycle, lithium battery has higher longevity compared to lead acid. This is why they are commonly used with systems that require repeated charge.
Maintenance requirement
Unlike lead-acid batteries that require maintenance at intervals lithium batteries don’t need maintenance.
Energy density
Lithium start stop batteries are known for their higher energy density, which are better than lead-acid. Hence as start stop car batteries, they can exert excellent performance.
With all that has been said so far about the two battery types, it is a no-brainer that the lithium battery is the better option. However, lithium batteries are usually more expensive. So, you may want to consider your budget before deciding which one to settle for.
② Lithium vs sodium start stop battery - pros and cons
The lithium vs sodium battery belongs to the same subcategories of alkaline batteries, and they are also gaining some popularity in the auto industry. Here are a few pros and cons of these battery types.
Categories
Lithium start stop battery
Sodium start stop battery
Cycle life
Long
Relatively low(higher than lead acid battery)
Energy density
High
Relatively low
Cost
High
Low
Raw material
Limited
Abundant
Safety
Potential risks
More safer
Performance in extreme temperature
Limited
Better
Technical route
Mature
Developing
Lithium batteries
● Pros
Charges faster
In general, the standard charging current is higher. So, even if your battery drains due to multiple applications, it is only a matter of time before the battery is recharged.
Higher energy density
The energy density of lithium batteries is high, hence they have higher energy storage capacity.
Longer cycle life
Compared to other battery types, Lithium batteries have longer cycle life, this is why they are used in start stop systems.
● Cons
Scarcity of material
Cobalt is the primary material used in making lithium batteries. However, since cobalt is a rare material to find, lithium batteries are not usually produced masse like other battery types.
Cost
Lithium batteries are highly durable and efficient, and as a result, they are usually more expensive than other battery types.
Safety
Lithium-ion batteries are not as safe as sodium-ion batteries. It is relatively easier to develop the risk of bulging.
Sodium batteries
● Pros
Cost efficient
For industries that need large energy storage, sodium battery provides a cost-efficient solution so that they can as much energy as they can without spending out of budget.
Abundant material
Unlike lithium with a scarce resource, sodium can be found almost everywhere, which makes it easier for manufacturers to mass produce them.
Adaptability
Both lithium and sodium batteries share the same electrochemical properties. As a result, they are used as alternatives to existing technologies.
● Cons
Low degree of commercialization
The application of sodium-ion batteries is not as mature as lithium-ion, and the technology is still in the stage of development.
Low energy density
When compared with lithium batteries(12 volt 200ah lithium battery), the energy density of sodium batteries is low. This is one of the several reasons why their application is limited.
6. How long does stop start battery last
The expected lifespan of a stop-start battery is between 4 to 5 years. However, you need to know that how long the battery will last varies and depends on certain factors like:
Maintenance
Regular inspections and maintenance by qualified technicians can help detect any potential problems early.
Driving habits
Aggressive driving puts additional strain on the battery and other components, such as constant acceleration and sudden stops. It is advisable to maintain a smooth and moderate driving habit to minimize unnecessary stress on the battery.
The battery quality
Start stop batteries are often designed with enhanced functionality to withstand the demands of start stop system.
Temperature
High temperatures accelerate the chemical reactions inside the battery, while low temperatures reduce its overall performance.
7. Do I need a special battery for a stop-start car
Yes, you will need a special battery for a stop-start car. Stop-start cars are built with a stop start system or technology. This type of design requires frequent cycling on and off.
A process that will be too much for a normal battery to withstand. The engine will switched off several times during driving. During these phases, the battery continues to provide energy to all powered devices.
Conventional batteries are not designed for this charge output (i.e., continuous discharge and charge). Only batteries with start stop technology can meet these demands and withstand the pressure.
8. Can I put a stop start battery in a conventional vehicle
Yes, you can put a start stop battery in a conventional vehicle. Although using a start stop battery in a conventional car may not directly impact its performance. However, since they are not compatible with start stop system, it might not be efficient to use start stop battery because it will only work as a normal battery without any extra benefit.
9. How to buy the start stop battery
Check your car's battery requirement
Before you buy a start stop battery, ensure that your car supports stop start system. After that, check the car manual for the type of battery recommended for your car, by the manufacturer.
Go to the auto part store close to you or shopping on line
Ideally, you should be able to purchase any stop start car battery at any standard auto part store. So visit one in your neighborhood and tell them the exact type recommended by your automaker.
Even if you don't have information about the right start stop battery, a professional battery store should be able to guide you through making the right decision. All you have to do is provide the dealer with information like your car's model, year, make. And every other piece of information that is unique to your car. You can also access them on line.
Compare between brands and their prices
Just like regular shopping, it is best to look for trusted brands renowned for their qualities. However, in most cases, these brands sell at a higher price than most other brands. But the chances that you are going to get the worth of your money are very high. All in all, the most important factor here is your budget. So, find the brand that will sell at a price that suits your budget.
Check reviews
If you have a problem deciding between brands and prices, a good and convenient way of going about it reading online reviews. You can read reviews about different brands on Google or Yelp. This will provide insight into what people are saying about the battery brands. Use what you learn in the process to guide your decision.
Warranty
A warranty is a form of assurance from the manufacturer that you are paying for quality.
Installation
Ordinarily, installing a start stop battery is not so difficult. However, if you do not know how you can ask your auto dealer to help with installation. Most of them have professionals who can help with installations and the ones without any will likely have someone to recommend.
So, you might also benefit from buying from an auto shop that provides aftersales services like installation. Good quality and guaranteed start stop car batteries usually have a longer warranty.
10. Where can I find cheap stop start car batteries
Car parts stores
If you are looking for a cheap stop start car batteries, the place you should consider going is an auto part dealer shop. They could offer you a discount or know someone who wants to sell their battery at a cheaper rate.
Discount stores
Discount stores are another place you may get start stop car batteries at cheaper rates. This kind of store may have the exact type of battery you are looking for in their automotive section and may sell it to you at a discount or competitive rate. But you may buy a battery that has been sitting for a long time, and the quality is more difficult to guarantee.
Online marketplace
Sellers on online marketplaces like eBay, Amazon, and Etsy sell their products at a competitive rate to attract customers to buy from them. Or search for related products directly on Google and enter the battery website to buy. And also they offer lots of discounts, so you might want to check this place too if you need cheaper start stop car batteries.
Tycorun 12V 50Ah start stop batteries are also able to provide the best performance in the most demanding conditions, being able to do so with excellent starting power when in use. The higher cycle power and reliability make it a popular player in the market.
In addition, the advanced technology used in the start stop battery can be well matched to the vehicle and accessories to power it. And the batteries are able to last longer. Tycorun has always strived to innovate technology and develop customer service.
We know everything we need to know about start stop batteries and are also ready to provide products that satisfy our customers to support a stable power output during the trip.
12. FAQ about stop start car batteries
① Is stop start bad for the battery
Yes, it has an impact on the performance of ordinary batteries. Anytime you start and stop your car engine, you are putting extra strain on your car battery that could cause it to wear out over time. Consequently, it is advisable that you occasionally go on a long drive and also that you regularly maintain your battery to keep it working optimally.
② Do auto start stop cars have two batteries
Yes, both hybrid and electric vehicles have two batteries.
③ How are stop start batteries charged
You can recharge your stop start batteries with a smart battery charger that comes with selectable battery types. Also, your start stop car battery can be charged when the car is in motion.
13. Conclusion
Start-stop car batteries provide a cost-effective and eco-friendly way of using a car as it helps car owners reduce the cost of fuel and car emissions. The start stop system is intended to provide a more comfortable riding experience as well as a cost-effective and green travel solution.
