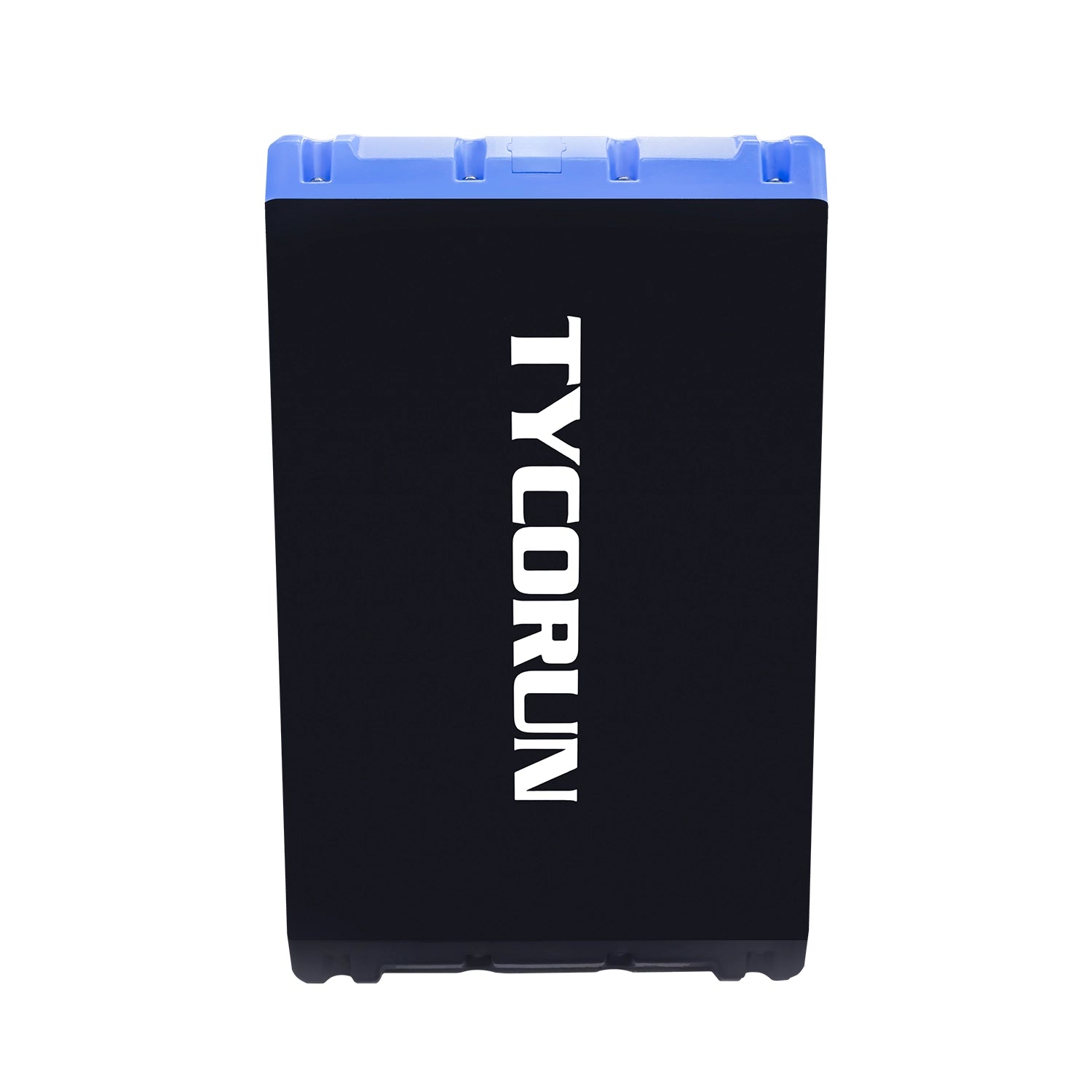

73V 30Ah semi-solid battery for Electric 2/3/4-wheelers
73V 30Ah semi-solid battery for Electric 2/3/4-wheelers

Custom 73V 30Ah Semi-solid Battery for Electric 2/3/4-wheelers

This 73V 30Ah battery, using semi-solid NCM technology, with its excellent safety, wide temperature adaptability and intelligent management system, perfectly meets the battery swapping needs of modern electric two-wheeled, three-wheeled and four-wheeled vehicles in high-intensity operating environments.

Specifications of 73V 30Ah Semi-solid Battery

Parameters Specification
Battery in parallel mode 1P20S
Nominal voltage of the system 73V
Nominal capacity of the system 30Ah
Rated power (w) ≥2190
Maximum operating voltage 87V
Minimum operating voltage 60V
Normal operating temperature range(charging) 0~55℃
Normal operating temperature range (discharge) -20~60℃
Standard charge and discharge current 0.5C / 1C
Maximum sustainable charge and discharge current 2C
Peak discharge current ≤3C, 30S
System shipping static pressure difference ≤30mV
Self-discharge ≤5%/M
Optimum storage temperature 25℃±2
Operating environment humidity 20%~80%
Altitude requirement <2000m
Shipped electricity 45%±5%SOC
Cycle life ≥1200Times
Short circuit protection Automatically disconnect the load after short circuit
Long Cycle Life
High Safety
High Energy Density
Stable Discharge
Low Maintenance Cost
Environmentally Friendly

OEM & CUSTOMIZATION

Product specifications, interfaces and system configurations can be customized for different applications.

TECHNICAL SUPPORT

Get support with product selection, system integration, setup and after-sales service.

GLOBAL DELIVERY SUPPORT

Shipping and project delivery are arranged according to product type, order size and destination.

QUALITY & AFTER-SALES

Warranty, technical guidance and after-sales support are provided according to the product and project scope.

Custom 73V 30Ah Semi-solid Battery for Electric 2/3/4-wheelers


Read more

This battery uses advanced semi-solid NCM material technology to meet the needs of battery swapping in low-temperature areas. At the same time, the semi-solid electrolyte has better tolerance to high temperatures than traditional liquid electrolytes, so it can maintain stable performance over a wider temperature range and reduce the risk of thermal runaway. It is especially suitable for electric motorcycles, electric scooters, etc., and is suitable for high-load and high-frequency use scenarios such as express delivery and urban logistics transportation.

The sturdy and durable shell greatly improves the battery's impact resistance, and can effectively prevent damage even during the rider's frequent and intense battery swapping operations. At the same time, built-in GPS and 4G network modules enable real-time positioning and remote monitoring, which facilitates operation management and vehicle scheduling.

In addition, the battery is equipped with an intelligent battery management system (BMS) to achieve accurate battery status monitoring and protection functions, including multiple safety protections such as overcharging, over-discharging, overcurrent, and short circuit, which effectively extends the battery life and ensures the safety of vehicle operation.

All our TYCORUN batteries have been strictly tested and certified, and meet international quality standards to ensure that customers can be provided with reliable and stable power support, helping electric travel to be more efficient and smarter.
