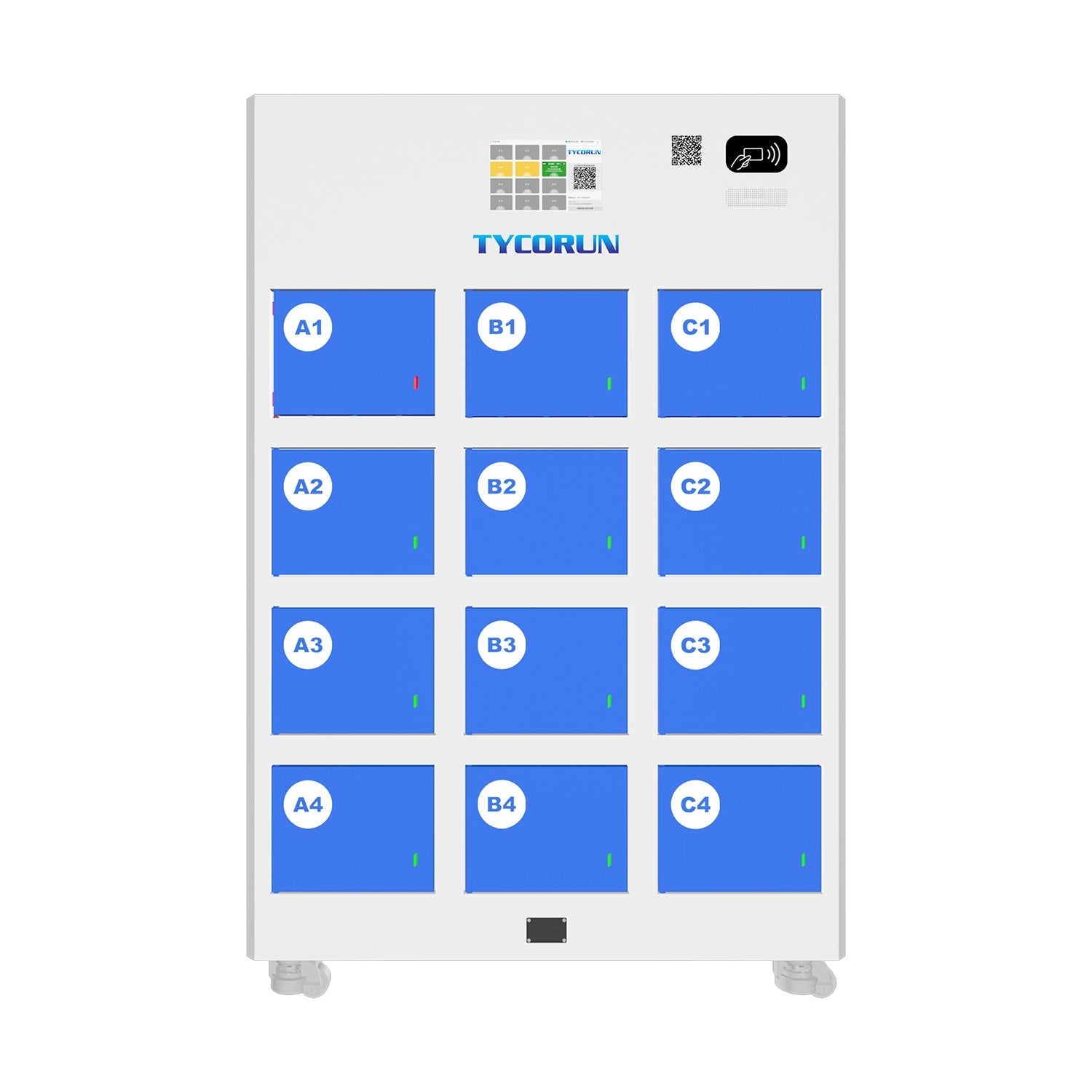

Custom 12-slot Battery Swap Cabinet for Electric 2/3/4-Wheelers

TYCORUN 12-slot battery swap cabinet supports a total power of 9600W, 800W output per slot, and 15A fast charging to achieve efficient battery turnover. 12 independent battery swap compartments can be charged and stored at the same time, and can support multiple voltage platforms (72V/60V/48V), greatly reducing the waiting time for high-frequency users such as takeout and logistics.

The battery entering the battery swap cabinet can upload health information such as voltage, current, temperature, and number of cycles to the background in real time. The background management platform remotely monitors all devices and batteries through 4G/WiFi/GPS, supports abnormal warning, charging management, battery tracking, fault diagnosis and other functions, and helps operators achieve battery life management and refined scheduling

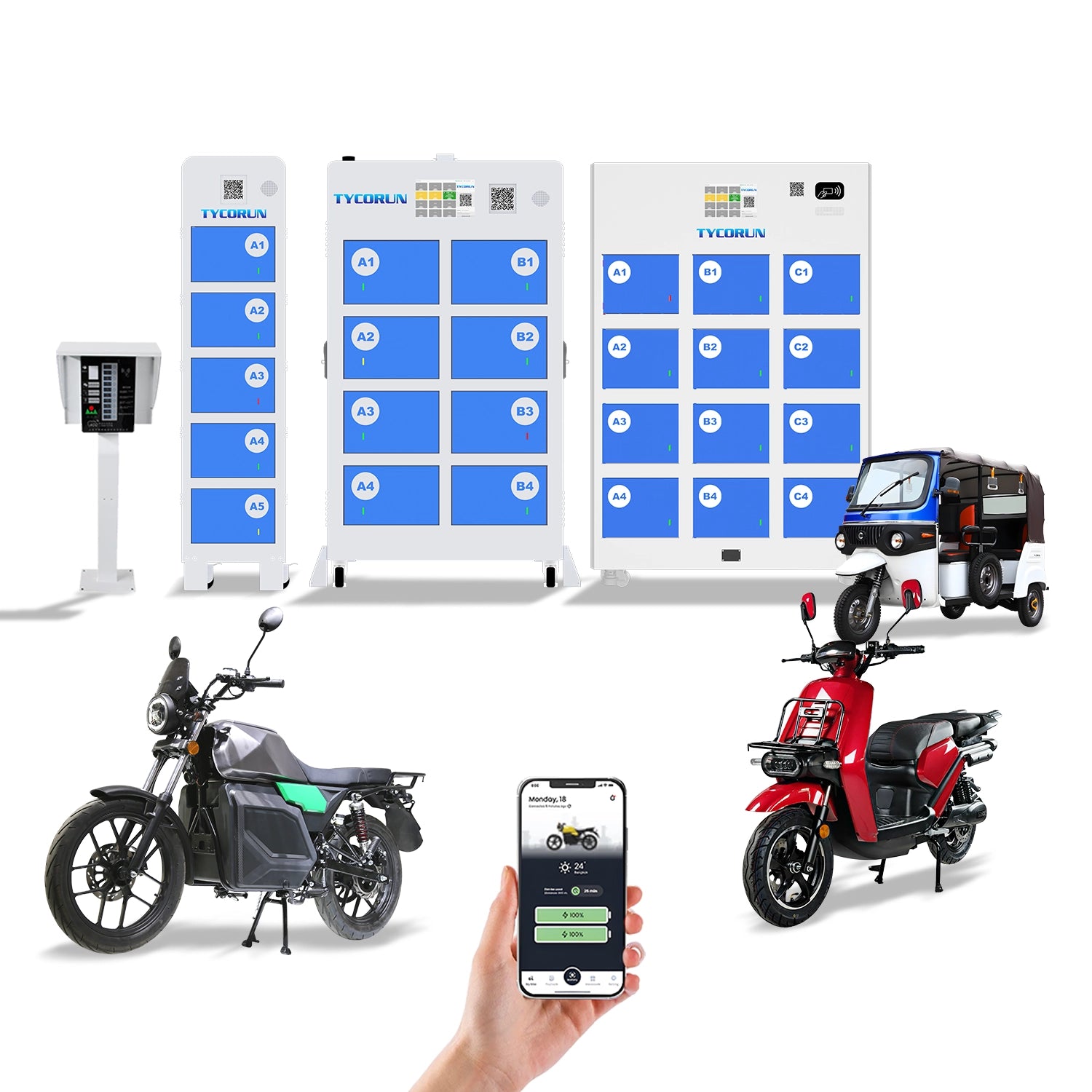

TYCORUN 12-slot smart battery swap cabinet is not only a battery swap device, but also an integrated solution that deeply links with electric motorcycles, battery systems, user APPs and operation backgrounds. Users can view the battery power, the location of nearby battery swap cabinets and the number of available batteries in real time through the APP, and support multiple operation methods such as scanning code for battery swapping and offline battery swapping to achieve a fast and convenient battery swapping experience. The NFC customization function makes it more efficient for riders to change batteries, greatly improving operational efficiency.

TYCORUN battery exchange cabinet supports various customization projects, including appearance customization, color customization and LOGO printing, to meet the needs of branded operations. Configuration and system parameters can be flexibly adjusted according to customer needs, and support a variety of optional accessories, such as air conditioning, cameras, reverse power supply modules, canopies, NFC modules, etc. It has multiple protection functions, including smoke alarm, high temperature warning, flood monitoring, aerosol fire extinguisher, air cooling system, etc., and can be equipped with water fire fighting system and sound and light alarm device to enhance safety protection in extreme environments.

The size is 600×1100×1632mm, with a compact structure and small footprint. It can be flexibly deployed in various scenarios such as store entrances, gas stations, and electric motorcycle centralized parking spots.

All TYCORUN battery exchange equipment undergoes standardized testing procedures before leaving the factory, including rain testing, to ensure the stability and reliability of the product. The screen size can be selected according to needs, it supports playing promotional videos, and is equipped with voice guidance function. The playback language and interface language can be customized to comprehensively enhance the user interaction experience and brand presentation effect.
