What Battery Cable Size Should l Use?

Choosing the right battery cable may seem simple, but it plays a critical role in any electrical system. Whether you are working with a car, RV, boat, solar setup, inverter, or backup battery, the correct battery cable size directly affects safety, performance, and efficiency.

Many beginners assume all battery cables are the same, but using the wrong size can cause voltage drop, overheating, weak performance, or even fire risks. Understanding battery cable size helps ensure your system runs safely and reliably. In this guide, you will learn how to measure battery cable size, why it matters, and how to choose the right one for your needs.

What is a battery cable?

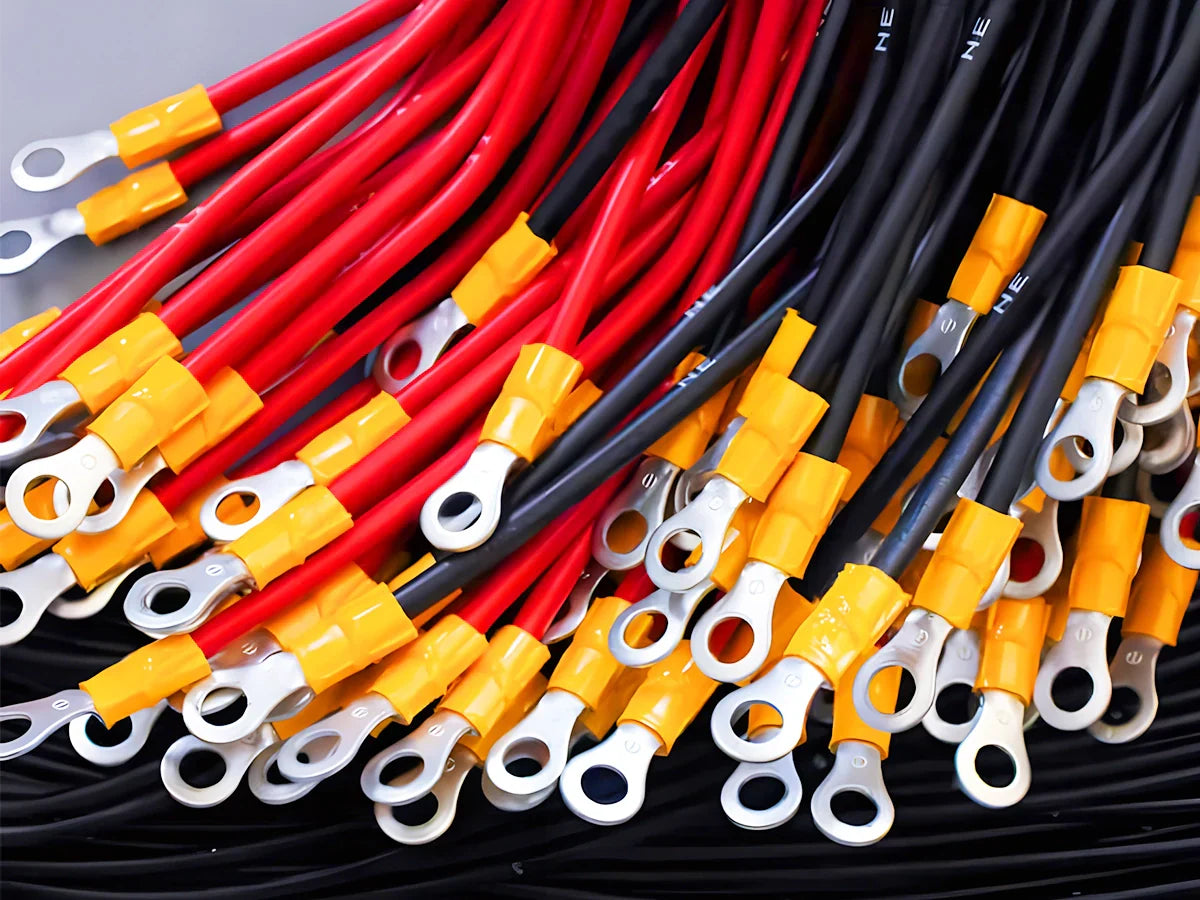

A battery cable is a thick electrical wire designed to carry power from a battery to a device, motor, inverter, or electrical system. Battery cables are built to handle high current safely and efficiently.

Unlike regular household wires, battery cables usually:

• Carry high amps
• Have thick copper conductors
• Use strong insulation to handle heat and vibration
• Are designed for DC (direct current) systems

The most important thing about a battery cable is its thickness, which determines how much current it can safely carry.

Types of battery cables

Battery cables come in different types based on their insulation and conductor material, and choosing the right type can affect safety and battery cable size requirements. A battery cable is a thick single-conductor wire, usually made of copper, with PVC insulation. It connects the battery to vehicle or system components using a positive and a negative lead.

Common types of battery cables include:

• SGX battery cable: Very flexible and designed for high temperatures. It has thick insulation and is often used where heat resistance is important.
• SGT battery cable: Uses PVC insulation and is stiffer than SGX. It is easier to shape and works well in tight spaces.
• Marine battery cable: Built for wet environments and high temperatures. It has a marine safety rating and is required for boat applications.
• Fuse link (fusible link): Acts like a slow-blow fuse to protect wiring from major electrical damage, often used near alternators.
• OFC (Oxygen-Free Copper): Made from high-purity copper for excellent conductivity and commonly used in high-power systems.
• CCA (Copper-Clad Aluminum): Lighter and cheaper than copper but needs a larger battery cable size to carry the same current safely.

Choosing the right cable type and material helps ensure the correct battery cable size for your system and improves safety and performance.

What does battery cable size mean?

Battery cable size refers to how thick the cable conductor is. Thicker cables can carry more current with less resistance, while thinner cables carry less current and heat up faster.

Why battery cable size is so important?

Using the correct cable size is critical for several reasons:

• Safety: If a cable is too small, it can overheat. Over time, this heat can melt insulation, damage nearby components, or cause a fire.
• Performance: A cable that is too thin causes voltage drop. This means your device may not get enough power, leading to weak performance or system shutdowns.
• Efficiency: Proper cable sizing reduces energy loss. Less resistance means more power reaches your device instead of turning into heat.
• Equipment Protection: Sensitive electronics, inverters, and motors rely on stable voltage. The wrong cable size can shorten their lifespan.

Standard for measuring cable thickness

Wire gauge is a way to describe how thick or thin a wire is. A smaller gauge number means the wire is thicker, while a larger number means the wire is thinner. In the United States, the most common system used to measure wire thickness is called the American Wire Gauge (AWG). This standard is used for round, solid wires made from materials like copper.

The thickness of a wire affects how electricity flows through it. Thicker wires can carry more power and create less resistance, while thinner wires carry less power and heat up faster. Knowing the wire gauge helps people choose the right wire for their needs and makes it easier for manufacturers and users to communicate clearly.

Cable size is usually measured using:

• AWG (American Wire Gauge) in most vehicles and small systems
• mm² (square millimeters) in some international systems

In AWG, the numbering system can be confusing:

• A smaller number means a thicker cable
• A larger number means a thinner cable

For example:

• 2 AWG is thicker than 6 AWG
• 1/0 AWG (also written as 0 AWG) is thicker than 2 AWG

Choosing the correct battery cable size ensures power flows smoothly without overheating or voltage loss.

What wire gauge is best for battery cables?

Choosing the right wire gauge for battery cables depends on how much current your system uses and how long the cable is. After you know the required current, measure the total cable length. Shorter cables are better because they cost less and reduce power loss. Once you have this information, you can use a wire size chart to select the correct cable size for your system.

However, there is no single wire gauge that works for every battery setup. The correct wire gauge depends on several factors, including the current (amps) your system uses, the cable length, and the system voltage. As these values increase, a thicker wire is needed to safely carry the power.

In general:

• 10–8 AWG: Suitable for small loads and short distances
• 6–4 AWG: Commonly used for medium loads, RVs, and small inverters
• 2–1/0 AWG: Best for high-power inverters, starter motors, and large battery banks

As a simple rule, the higher the current and the longer the cable, the thicker the wire you should use.

Battery cable amperage capacity

Battery cable amperage capacity means the maximum amount of electrical current (amps) a battery cable can safely carry without overheating or causing damage. This capacity depends on how thick the cable is, how long it is, and the system voltage.

Thicker cables can handle more amps, while thinner cables are only safe for lower current. If the amperage is higher than what the cable can handle, the cable may heat up, lose power, or become a safety risk. That is why choosing a cable with the correct amperage capacity is important for safe and reliable battery systems.

For example, an inverter may need 150 amps, while a small light may only need 10 amps. To find the total amperage, add together the current used by all connected devices. You can also calculate amps by dividing the device’s wattage by its voltage.

Select a battery cable size and check how much current it can handle over a certain cable length. For example, in a 12-volt system, a 6-gauge cable can safely carry about 50 amps for a maximum length of around 12 feet.

Key factors that determine battery cable size

Choose the correct battery cable size by linking current, cable thickness, and system voltage. Choosing the right cable depends on three main factors: how many amps the system uses, how thick the cable is, and the system voltage.

Several factors work together to determine the correct cable size for your system.

1. Current (Amps)

This is the most important factor. The more current your system uses, the thicker the cable must be.

Examples:

• Small accessories: 10–30 amps
• Car starter motors: 150–300 amps
• Inverters: 100–400+ amps
• Solar battery banks: varies by system size

Always check the maximum current your system may draw, not just the average.

2. Cable Length

Longer cables need to be thicker. The longer the wire, the more resistance it has.

For example:

• A 3-foot cable can be thinner than a 15-foot cable carrying the same current
• Voltage drop increases as cable length increases

Cable length includes both the positive and negative runs combined.

3. Voltage of the System

Lower-voltage systems require thicker cables.

Examples:

• 12V systems need thicker cables
• 24V systems need thinner cables for the same power
• 48V systems need even less thickness

This is why 12V battery systems often use very thick cables compared to higher-voltage setups.

4. Duty Cycle

Some systems run briefly, while others run continuously.

• Starter motors run for a few seconds
• Inverters may run for hours
• Solar systems often operate all day

Continuous use requires thicker cables to prevent heat buildup.

How to calculate the right battery cable size

You can follow a simple step-by-step approach:

Step 1: Find the Maximum Current

Look at your device’s rating or calculate current using:

Amps = Watts ÷ Volts

Example:

1200W inverter ÷ 12V = 100 amps

Step 2: Measure Cable Length

Measure the total length of both positive and negative cables.

Step 3: Check Voltage Drop Limits

Most systems aim for:

• 3% voltage drop for sensitive electronics
• 5% voltage drop for general use

Step 4: Use a Wire Gauge Chart

Match current and length to the correct cable size.

This method ensures your battery cable size is both safe and efficient.

Using a wire sizing guide, a wire sizing guide helps match battery cable size with current and cable length. Lower current and shorter distances allow for smaller cables, while higher current or longer distances require thicker cables. If you are unsure which size to choose, selecting the next larger cable is usually the safer option, especially for battery and inverter connections.

Explore: Inverter battery

Battery cable size for common applications

• Car and Truck Batteries

Car and truck batteries usually use thick starter cables, commonly between 2 AWG and 1/0 AWG. Colder climates often require thicker cables to provide enough starting power.

• RV and Camper Systems

RV and camper systems typically use 4 AWG to 2 AWG cables. Larger inverters may need thicker cables such as 1/0 AWG to handle higher current.

• Solar Power Systems

Solar systems use different cable sizes depending on voltage and current. Battery banks often need thick cables because DC current levels are high.

• Boats and Marine Systems

Marine systems usually use tinned copper cables for corrosion resistance. Cable sizes are often larger due to longer cable runs.

Conclusion

Selecting the right battery cable size is important to avoid voltage drop, overheating, and power loss. Using a cable that is too small or too large can cause problems and prevent your electrical system from working properly. Also you need to understand a battery cable size chart helps you choose the correct cable thickness based on the current and voltage needed by your appliances.

FAQs

Is 4 gauge good for battery cables?

Yes, a 4-gauge cable works well for many battery systems, including 36V, 48V, and 72V setups. Using higher-quality cables with more strands can improve performance and reliability.

What size of solar generator do I need?

The right solar generator size depends on how many appliances you use and how long you plan to run them. Add up the total wattage of your devices and choose a generator that can handle that load for the required time.

How do I figure out how many amps my RV will be using?

You can calculate the amps by dividing the total wattage of your RV appliances by the system voltage. For example, watts divided by volts equals amps.

How do I know what size battery cable I need?

You can determine the correct battery cable size by knowing how many amps your system uses and checking a battery cable sizing guide. Cable length also plays an important role.

What gauge wire should I use for a 12V battery?

For a 12-volt system, a 4-gauge wire is commonly used for loads around 100 to 150 amps. Higher current or longer cable runs may require a thicker wire.

What does AWG mean for battery cables?

AWG stands for American Wire Gauge, which is the standard used to measure wire thickness. A smaller AWG number means a thicker cable.

What happens if the battery cable size is too small?

If a battery cable is too small, it creates high resistance. This causes two main problems: voltage drop and heat buildup. Too much voltage drop can prevent devices from working properly, while excess heat can damage the cable insulation and increase fire risk. For safety and performance, battery cables must be thick enough to handle the current.

What happens if the battery cable size is too big?

Using a battery cable that is too thick is generally safe but has some downsides. Oversized cables cost more, weigh more, and are harder to handle during installation. While bigger is safer than too small, choosing an excessively large cable can add unnecessary cost and inconvenience.
