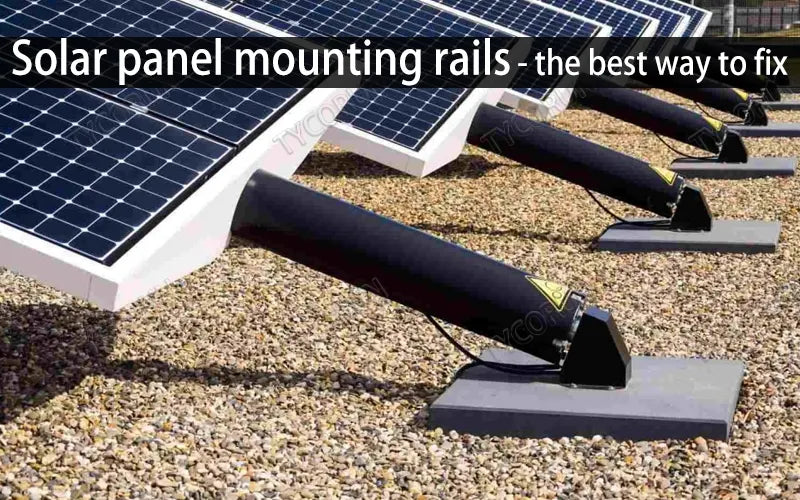

Solar panel mounting rails - the best way to fix



Recently, many homeowners have switched to renewable and energy-efficient electricity for their homes. They use clean energy generated by solar panels to power their homes. Solar panels are made of photovoltaic cells. These 12v 100ah lithium ion batteries are placed between layers of silicon, which are conductors.


Electricity is generated when sunlight hits the panels. A 3000w inverter mounted on a solar panel converts electrical energy into usable energy to run a variety of household appliances. Solar panel mounting rails are used to install solar panels on top of the roof or to support the ground mounting system.

1. What is a solar panel mounting rail

The solar panel mounting rails stabilize the solar panel so that it does not move from its position. Solar panel mounting rails are the next component that attaches to the borehole roof attachment. These rails hold and provide the necessary support for solar panels. These rails are available in different lengths and thicknesses.

You can use thicker rails to support more weight because it's stronger. On the other hand, thin rails are not suitable for use in climates with snowfall. You can also rack without rails, but many people choose to mount rails because of their ease of use. In addition, it allows you to adjust the entire solar power system at different angles.

2. The role of the solar panel mounting rails

Solar panel mounting rails are an important part of the solar photovoltaic power generation system, mainly used to support and fix solar panels. Its scope of work includes, but is not limited to:

  • Install solar panels

The main function of the solar panel mounting rail is to support and fix the solar panel, ensuring that it is installed in place in a stable and safe manner. It needs to be able to withstand the weight of solar panels, and have sufficient strength and stiffness to cope with a variety of harsh climatic and environmental conditions.

The role of the solar panel mounting rails

  • Adjust the angle of the solar panel

In order to maximize the absorption of sunlight, high efficiency solar panels often need to be angled according to the position of the sun. The solar panel mounting rails should be adjustable to meet the needs of different solar panel adjustment angles.

  • Protective cables and wiring

In the solar photovoltaic power generation system, it is also necessary to safely fix the cables and wiring on the photovoltaic rails to ensure the reliability and safety of power transmission. Solar panel mounting rails need to provide proper wiring ducts or channels so that photovoltaic cable and wiring can be routed neatly and not damaged by external factors.

3. Advantages of solar panel mounting rails

Light weight and high strength: It has the characteristics of light weight and high strength, and is easy to install and handle.

Corrosion resistance: good corrosion resistance, able to maintain stable performance in various harsh environments.

Long life: Good corrosion resistance and stability, so its service life is long, which can meet the long-term operation needs of photovoltaic systems.

Ease of maintenance: Low maintenance costs, just clean and maintain when necessary to keep its surface smooth.

4. Detailed explanation of the installation steps of the solar panel mounting rails

● Preparation

Before you can install it, you need to prepare: Confirm the number of connectors and prepare the necessary tools (screwdrivers, wrenches, drills, angle rulers, etc.) and related materials (e.g. screws, expansion tubes, etc.).

● How to install

  • Determine the location and number of PV panels and mark them with tools such as angle rulers, measuring tools, etc.
  • Use an electric drill to drill the hole and insert the expansion tube into the hole.
  • Place the PV rail in the mounting position and fix it with screws.
  • Install a 10 cm PV rail connector on each side of the PV rail.
  • According to the current situation, the installation method of photovoltaic panels can be determined, and the installation can be suspended, side clamp or back clip.
Installation steps of the solar panel mounting rails

    ● How to connect

    • Use screws to fasten the photovoltaic panel to the photovoltaic rail connector.
    • Check that the connection is secure to avoid loosening, misalignment, or other errors during installation.

    ● Precautions

    • Read the instructions carefully before installation to ensure that you understand the performance, specifications and installation methods of the connectors.
    • During the installation process, it is necessary to pay attention to electrical safety and the personal safety of personnel.
    • When determining the position and number of photovoltaic panels, it is necessary to ensure that the panels are oriented correctly to ensure that the light energy is fully utilized.
    • When connecting photovoltaic panels and guide rails, pay attention to the selection and use of screws to avoid breakage, overtightness or looseness.
    • If there are special requirements for the installation location or need to be adjusted according to specific conditions, it is necessary to evaluate it in advance to ensure safety and reliability.

    In short, when installing photovoltaic rail connectors, it is necessary to operate carefully and carefully to ensure the firmness and stability of the installation, and to ensure the effective operation and full utilization of photovoltaic panels.

    5. Practical application of solar panel mounting rails

    Home photovoltaic system: It is able to provide stable support for solar panels and ensure that they work properly in various natural environments.

    Large-scale photovoltaic power station: Due to the large number of panels in large-scale photovoltaic power station, more and more stable solar panel mounting rails need to be used to ensure the stable operation of the whole system.

    Mobile PV systems: In mobile PV systems, there are higher requirements for the lightness and flexibility of brackets due to the frequent movement and reconfiguration of the system. Due to its lightness and ease of installation, it is ideal for use in mobile photovoltaic systems.

    When choosing a rail mount, you must consider your budget and location in order to choose the right option for a fixed, angled, or angled solar panel mounting rail.

    6. Conclusion

    Solar panel mounting rails and brackets are devices that help to properly install the solar system in a safe place. Without proper solar panel mounting rails, the panels will not remain in place.

    If you do not use a quality mounting system, you may affect the stability of your roof. Therefore, when choosing an installation system, you must be sure that it can withstand all harsh climatic conditions.
