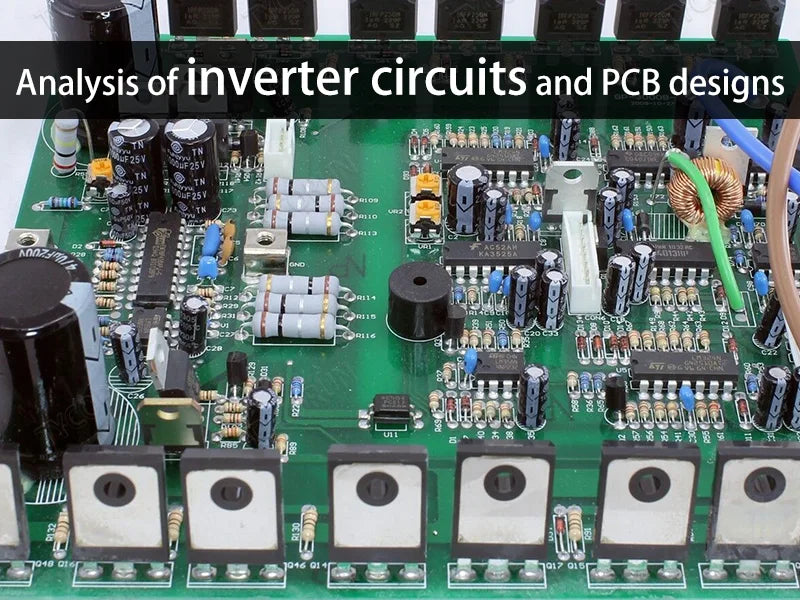

Analysis of inverter circuits and PCB designs



An inverter is a device that converts direct current into alternating current. Its main principle is to use the switching characteristics of semiconductor devices (such as field effect transistors or thyristors) to control the power supply voltage and current through fast switching, so as to realize the conversion of direct current to the corresponding frequency and voltage of alternating current.


Specifically, when the input DC passes through the semiconductor device in the inverter, it is divided into a series of pulse signals, which are filtered and adjusted to produce alternating current with the same frequency, amplitude, and waveform as the desired output. Inverters are widely used in solar power generation, wind power generation, household appliances, UPS and other fields.

1. Internal circuit structure

The PV inverter is divided into two parts, namely the control circuit and the power circuit. The control circuit mainly realizes the signal conditioning and control of the inverter, including controlling the switching state of the thyristor or MOSFET, generating high-frequency driving pulse signals, and providing protection.

Control circuits typically consist of microprocessors or complex circuit boards. The power circuit is the core component of the inverter, which converts the DC power supply into AC output, including rectifier circuit, filter circuit and inverter output circuit.

Internal circuit structure


The rectifier circuit converts the input alternating current into direct current, and the filter circuit smoothes the rectified DC filter. The inverter output circuit uses a semiconductor device to convert direct current into alternating current with the required voltage, frequency, and waveform.

2. PCB design and overall performance

In today's renewable energy industry, the design and application of high-power PV inverters is becoming increasingly important. The performance and reliability of the photovoltaic inverter, as a key equipment that converts the direct current generated by the solar panel into alternating current, directly affects the efficiency and stability of the entire photovoltaic system.

Especially in high power applications, PCB (printed circuit board) design is a key factor in determining the overall performance of the inverter. First of all, we need to understand the basic requirements of PV inverter PCB design.

Factors that must be considered when designing high-power PV inverters include thermal management, optimization of electrical performance, physical size, and cost-effectiveness. Thermal management is a key challenge in PCB design due to the large amount of heat generated by high-power devices during operation.

PCB design and overall performance


It is necessary to ensure that the PCB layout can effectively dissipate heat and prevent equipment failure caused by overheating. This is usually achieved through the use of materials with high thermal conductivity, optimized heat sink layout, and rational circuit design.

3. Optimization of electrical performance

In order to improve the efficiency of the 3000w inverter and reduce energy loss, every small detail in the PCB design cannot be overlooked. For example, the thickness of copper foil on a circuit board has a direct impact on the efficiency of current transfer and heat generation.

In high-power applications, thicker copper foil is often required to reduce resistance and heat loss. In addition, cabling design is critical, as improper cabling can lead to electromagnetic interference (EMI) and signal integrity issues.

Physical size and cost-effectiveness are also aspects that cannot be ignored in PV inverter PCB design. While ensuring performance, the physical size of the inverter should not be too large for easy installation and maintenance.

At the same time, it is also necessary to weigh cost and performance in terms of material selection and production process to find the most appropriate balance. In addition to the above basic requirements, the PCB design of high-power PV inverters involves some deeper technical details.

Optimization of electrical performance


For example, choosing the right inverter capacitor and inductor is critical to ensuring circuit stability. Capacitors must have sufficient voltage capacity and low equivalent series resistance (ESR) to support high frequency operation and minimize heat loss. Equally important is the choice of inductor, considering its saturation current, loss characteristics, and size.

4. Issues to consider in the design process

PCB design must also take into account reliability and long-term stability. Because these devices typically operate in outdoor environments, they must be able to withstand extreme temperatures, humidity, and other environmental factors.

Therefore, choosing the right material and protective coating, as well as ensuring good weld quality and mechanical strength, is essential to ensure the long-term reliability of the 2000w inverter.

On the basis of guaranteeing performance and reliability, innovation is also a key factor driving the advancement of PV inverter technology. For example, the use of advanced semiconductor materials such as silicon carbide (SiC) and gallium nitride (GaN) can significantly improve inverter efficiency and power density.

At the same time, integrated design, such as the integration of the drive circuit into the PCB, not only saves space but also improves the overall performance and reliability of the system.

Close collaboration with other engineering teams is also important during the actual design process. This collaboration ensures that the inverter's overall design is aligned and that issues identified during the design and testing process can be effectively addressed.

5. Conclusion

Last but not least, PCB design is a complex but extremely challenging task. Compliance with international standards and industry norms is essential to ensure product safety and compliance.

PV inverters must be designed and manufactured in accordance with relevant electrical safety and performance standards, such as IEC and UL standards. This is not only a legal requirement, but also the key to gaining customer trust and market recognition.
