Want to know how to build a lithium battery pack that is safe, reliable, and long-lasting? This guide answers your question directly, explaining the hierarchy of cells, modules, and packs, essential S/P configurations, proper BMS integration, electrical connections, and testing protocols. Learn how to choose the right cell type, assemble series/parallel structures, ensure thermal safety, and verify performance. By following these steps, you can create high-performing battery packs for cars, golf carts, or DIY projects, while avoiding common risks.
Main content:
- What is a Lithium Battery Pack
- Cell Selection: First Step in Building a Pack
- Series and Parallel Design
- Structure and Cell Arrangement
- Electrical Connections of Battery Packs
- Testing and Verification of Battery Packs
- Conclusion
-
FAQs
- How to make lithium ion battery for car
- How to build a 48v lithium battery pack
- How to build a 12v lithium battery pack
- How to build a lithium polymer battery pack
- How to build a 18650 lithium battery pack with bms
- How to build lithium battery pack for golf cart
- Is it cheaper to build your own battery?
- How many 18650 batteries does it take to make a car battery?
What is a Lithium Battery Pack
A lithium battery pack is an integrated system combining multiple cells or modules with a BMS, wiring, and enclosure, providing safe, stable, and usable energy for devices or vehicles.
Cell / Module / Pack Hierarchy
In a lithium battery system, cell / module / pack is not arbitrary terminology, but a clear lithium ion battery hierarchy that defines how energy units evolve into usable systems. The lowest level is the cell, which is the smallest energy storage unit. It can only provide a fixed voltage and capacity, and by itself cannot directly power devices. A single cell is more like a “brick”: it participates in the system but cannot independently perform system functions.
When multiple cells are combined in specific series and parallel arrangements, they form a module. At this stage, battery module assembly is key, not only summing voltage and capacity but also incorporating basic mechanical fixation, insulation, and local thermal management. The module provides scalability and acts as a bridge in cell to pack design.
Finally, multiple modules (or sometimes directly cells) are integrated with BMS, structural components, wiring, and enclosures to form a pack. At this point, the battery is no longer just an energy storage element but a full battery system integration, offering safety protection, power output, communication interfaces, and environmental adaptability. From an engineering perspective, this stage represents true energy storage system design, and it is the deliverable form that customers can use directly.
Why Not Use Single Cells
Many beginners ask: since lithium cells can output energy, why not use single lithium cell? The key is that a cell only solves “is there energy,” but not “can it be used safely, stably, and efficiently.”
A single lithium cell usually has a nominal voltage of only 3.6V or 3.7V, far below the working requirements of most devices or systems. This voltage mismatch lithium cells problem can prevent devices from starting or keep them in abnormal conditions for long periods.
Second is insufficient current and power capability. A single cell has limited discharge ability; under high load it can easily overcurrent, heat up, or fail, which is why cell overcurrent protection is necessary. Without series/parallel design and current-sharing mechanisms, a single cell in high-power applications faces significant lithium battery safety risks, not from the material itself but from uncontrolled usage.
The more critical issue is safety management. Bare cells do not have voltage monitoring, overcharge/overdischarge protection, or temperature detection, lacking the system-level safety logic emphasized by battery management system importance. If an abnormal situation occurs, the cell cannot actively intervene and can only fail passively, potentially causing chain reactions. This is why introducing a BMS or lithium cell protection circuit is essential; otherwise, it becomes a typical case of uncontrolled lithium battery risks. From an engineering and safety perspective, cells are never meant to be “used directly” but must be incorporated into a pack-level design to release their full performance potential.
Cell Selection: First Step in Building a Pack
Cell selection is critical for pack performance, considering factors like cell type (cylindrical, prismatic, pouch), capacity, discharge rate, internal resistance, mechanical strength, and thermal management requirements.
Main Lithium Cell Types
In practical engineering, choosing the right cell type is often more important than the brand. From the perspective of lithium battery cell types, mainstream lithium battery systems today revolve around three structures: cylindrical, prismatic, and pouch. These form typical lithium ion cell formats and are the core objects for battery cell form factor comparison.
Cylindrical cells were the first to achieve industrial-scale production, with common sizes including 18650, 21700, and the newer 4680. These cylindrical battery cells feature high standardization, mature automated production, and good consistency, making them widely used in tools, electric two-wheelers, energy storage, and some power systems. From an engineering standpoint, cylindrical cells have high mechanical strength, uniform internal stress, and good safety redundancy. However, when assembling a pack, their space utilization is relatively low and requires more structural parts and spot-welded connections.
Prismatic cells are advantageous in terms of “space efficiency.” These prismatic lithium battery cells improve volume utilization with flat geometry, suitable for systems with high spatial and structural integration requirements. Compared to cylindrical cells, prismatic cells can reduce the number of components in a pack, but they demand stricter case strength, thermal battery management, and consistency control. Any performance variation in a single cell will directly affect the system.
Pouch cells represent a path toward lightweight design and shape flexibility. Many applications value pouch lithium battery advantages, such as light weight, customizable thickness, and high energy density potential. However, pouch cells almost have no structural strength themselves, relying heavily on external constraints and protection. In the cylindrical vs prismatic vs pouch cells comparison, pouch cells shift more of the system design complexity “upstream” to the pack assembly, increasing the requirements for PACK engineering processes.
Key Cell Selection Parameters
No matter which cell format is used, the real success of building a pack depends on core performance parameters. First is the nominal battery voltage, commonly 3.6V or 3.7V. This is a typical lithium battery nominal voltage and does not represent fully charged or discharged voltage. It serves as the baseline reference for designing the number of series cells (S). Ignoring this during design can easily shift the system voltage platform.
The second key parameter is capacity, or battery capacity Ah. Capacity directly determines runtime, but in pack design, what matters more is “consistency of individual cell capacity.” Multiple cells with large capacity differences, even if nominally identical, can create hidden imbalance after series or parallel assembly, reducing usable energy. This is often overlooked when reviewing lithium battery specifications by beginners.
The third is discharge rate, also called C-rate lithium battery. The C-rate determines the current a cell can output stably, a critical factor for high-power applications. Many pack overheating or lifespan issues are not design errors but the result of selecting cells mismatched to the operating conditions, causing battery performance parameters to be continuously “stressed” in actual use.
Finally, internal resistance consistency is often underestimated but extremely important. Battery internal resistance affects efficiency, heat generation, and directly impacts parallel safety. Uneven resistance distribution can lead to unbalanced current in parallel branches, which is why lithium cell consistency is repeatedly emphasized in engineering practice.
The following table summarizes the key factors to consider when selecting lithium cells before building a lithium battery pack:
| Category | Type / Parameter | Key Points |
|---|---|---|
| Cell Types | Cylindrical | Standardized, high mechanical strength, mature production. Examples: 18650, 21700, 4680. Lower space utilization, requires spot welding. |
| Prismatic | Flat geometry, high space efficiency, fewer components. Requires strict case strength, thermal management, and consistency control. | |
| Pouch | Lightweight, flexible shape, high energy density potential. Needs external support, increases pack assembly complexity. | |
| Key Parameters | Nominal Voltage | Typically 3.6V or 3.7V; determines series cell design and overall system voltage. |
| Capacity (Ah) | Affects runtime; consistency among cells is crucial to avoid imbalance and reduce usable energy. | |
| Discharge Rate (C-rate) | Defines stable current output; critical for high-power applications and preventing overheating. | |
| Internal Resistance | Consistency affects efficiency, heat generation, and parallel safety; uneven resistance can cause unbalanced current. |
Series and Parallel Design
Series – Increase Voltage
In a lithium pack, the main purpose of series connection is to raise system voltage. The calculation is straightforward: system voltage equals cell voltage multiplied by the number of series cells
V_total = n × V_cell, meaning the voltage increases with each additional series cell.
For example, for a device requiring a 24V supply, a single 3.7V cell cannot meet the requirement. By connecting six cells in series (6S), the nominal system voltage reaches about 22.2V, and with full charge at 25.2V, it covers most 24V system operation ranges. For 48V storage or power applications, a 12S structure is common, achieving a nominal voltage of about 44.4V, matching the voltage range of inverters, motor controllers, or DC-DC modules.
It is important to note that series connection does not change capacity. If each cell is 3Ah, whether 6S or 12S, the system capacity remains 3Ah. Therefore, series design only solves “is the voltage sufficient” but does not extend runtime.
Parallel – Increase Capacity and Current
Parallel design aims to increase system capacity and output current. The basic relationship is Ah_total = n × Ah_cell, meaning capacity accumulates as more cells are paralleled.
For example, suppose a device needs to run continuously for 2 hours at 24V with a load of 10A, requiring at least 20Ah of effective capacity. Using a single 3Ah cell, even if voltage is met via series, runtime is insufficient. Introducing parallel connections, such as 4 cells in parallel (4P) per series string, increases the single string capacity to 12Ah. Adjusting the total number of parallel strings allows the system to meet runtime goals.
Parallel connection also shares current stress. If the system needs a 40A discharge, a 4P structure means each cell only handles about 10A, much safer than a single cell taking 40A. However, increasing parallel numbers amplifies the requirement for cell consistency. If one branch has lower resistance, it will carry more current long-term, becoming a potential system risk.
Series/Parallel Combination Method
In real pack design, S and P are not independently chosen but derived using a “reverse engineering” approach. For example, for an electric device requiring a 36V input, the first step is determining series cells, usually 10S or 12S, to cover the operating voltage range. Then, based on desired runtime and maximum current, the total required capacity and discharge capability are calculated to determine the parallel number.
For instance, if the system peak current is 60A and a single cell can continuously discharge 15A, at least 4P is needed to meet current demand. If runtime is still insufficient with 4P, parallel numbers must be increased while keeping current safety in mind. The final S/P combination is a balance of voltage platform, current capability, and usage duration, not simply “maximizing numbers.”
Structure and Cell Arrangement
In lithium pack design, how cells are “organized” directly affects energy density, reliability, and maintenance difficulty. Common approaches are Brick Battery Pack and modular design, not as right or wrong, but trade-offs for different applications.
Brick Battery Pack Features
A Brick Battery Pack is a “block-style” structure where cells are fixed directly in the pack without independent modules. Its main advantage is simplicity, fewer parts, and compressed intermediate layers between cells and casing, resulting in a compact system. For the same volume, Brick Pack usually achieves higher energy density, making it suitable for space-constrained applications.
However, this structure requires strict craftsmanship. With cells almost “directly in the pack,” poor fixation or adhesive design can make thermal expansion, vibration, or long-term stress act directly on the cells. Therefore, Brick Pack demands high mechanical fixation and adhesive precision, with almost no flexibility for later disassembly or maintenance.
Cell Fixation Methods
In assembly, fixing cells is not “just gluing.” The recommended method is plastic cell holders, which maintain position accuracy, allow heat dissipation and buffering space, and reduce stress on the cell casing, making it a mature and controllable engineering solution.
Inside parallel groups, hot melt glue may be used for local fixation to prevent minor shifts between cells. Glue quantity and placement must be strictly controlled to avoid affecting heat dissipation or future inspection. Between different cell groups or layers, neutral silicone is commonly used. It is flexible, aging-resistant, and provides fixation while absorbing vibration and deformation, reducing long-term risk.
Insulation Materials
Insulation is not solved by “sticking a tape somewhere”; it is a system-wide design. Fishpaper is often used around cell terminals and casing edges as basic insulation and anti-abrasion material, low-cost and reliable. Kapton tape is applied to high-temperature zones or near welds, offering excellent heat resistance. Fiberglass tape is used near structural fixes or wiring for mechanical strength and wear resistance, also providing insulation. These materials are complementary, each serving its function in combination.
Electrical Connections of Battery Packs
If structure determines “can it fit,” then the electrical connection system decides “can it be used safely and long-term.” Many battery pack issues ultimately trace back to improper connection methods.
Why Not Solder Cells Directly
In DIY or non-professional scenarios, people often try soldering lithium battery cells, but from an engineering perspective, this approach has obvious lithium battery soldering risks. The soldering process requires high temperatures, which quickly transfer heat along the cell casing, causing battery cell heat damage. Even if the exterior seems fine, the internal structure may already be compromised.
Overheating can also change the tab or internal connection structure, manifesting over time as internal resistance increase, accelerating heat generation and performance decay. More seriously, direct soldering lacks consistency and control, easily introducing hidden defects, which is a typical case of unsafe battery assembly. Therefore, this method is generally avoided in professional pack design.
Nickel Strip Spot Welding
The most common and reliable method is spot welding with nickel strips. Strip thickness should be selected based on system current, commonly 0.15 mm or 0.2 mm, balancing current capacity and welding difficulty. The quality of welds is judged by firmness, uniform weld marks, and the absence of cold or excessive welding.
Common errors include too few weld points, misaligned welds, or edges of the nickel strip lifting. Under vibration or high current, these issues can easily lead to poor contact or even short circuits. Therefore, spot welding is a critical part of pack reliability.
High-Current Path Design
In high-current applications, ordinary nickel strips may not suffice for safety and efficiency. Low-impedance solutions, such as wider nickel strips or copper bars, are often introduced in main discharge paths. Main positive and negative cables should not connect at a single point only; multi-point connections or full-length welds help reduce local current concentration.
Engineering emphasizes avoiding “single-point discharge.” If the main current is forced through one weld or path, that location becomes a long-term hotspot, affecting pack lifespan and safety margins.
Testing and Verification of Battery Packs
No matter how well the design is, without testing and verification, a battery pack can only be considered “structurally complete,” not a complete system.
Basic Electrical Testing

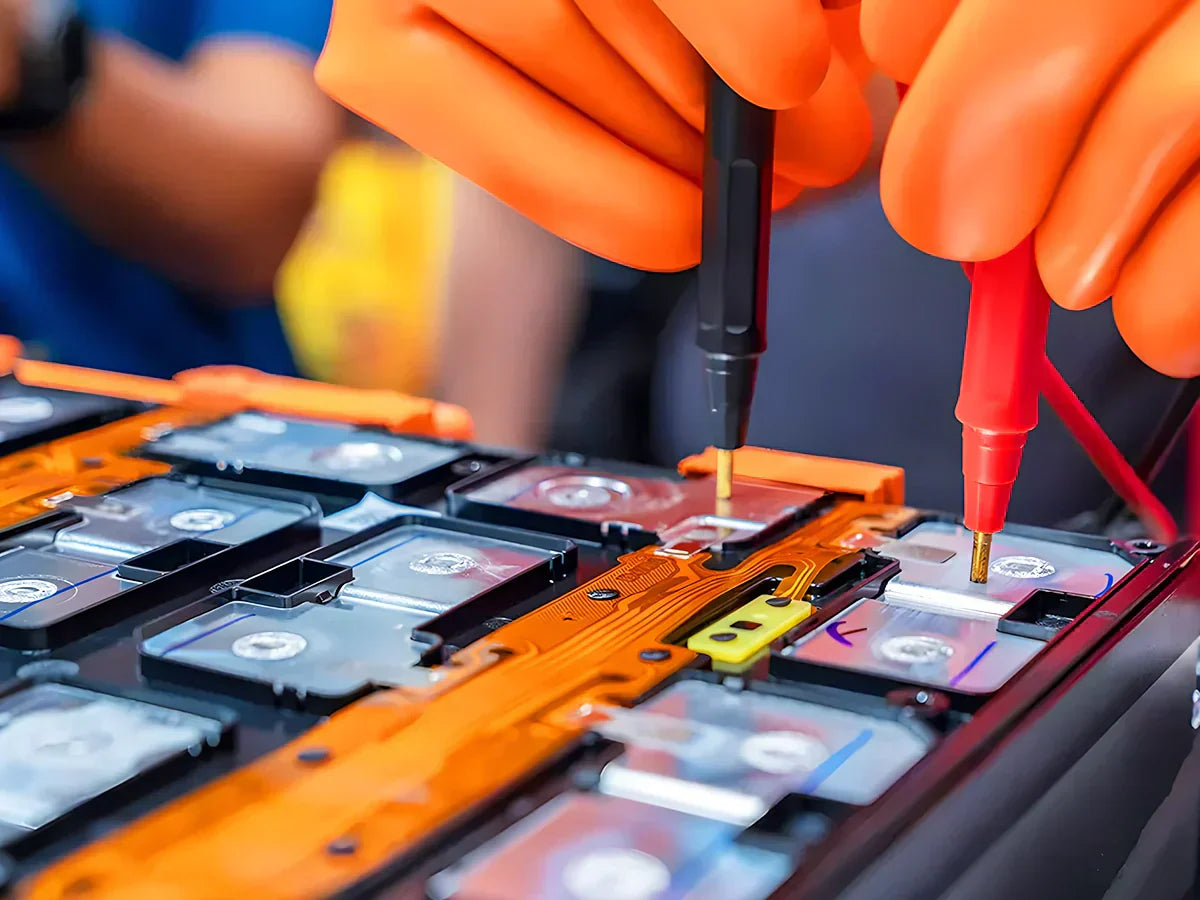

The first step of battery pack testing usually includes single-string voltage check, full pack voltage confirmation, and battery capacity test. Lithium battery voltage test can quickly detect series anomalies or contact issues, while capacity testing verifies whether usable energy meets design expectations. This is a core part of battery performance verification.
Thermal Imaging and Hotspot Inspection
Thermal imaging under load can visually reveal potential risk points. Focus on weld locations and main current paths. Localized overheating often indicates excessive contact resistance or uneven current distribution. If not addressed at this stage, these issues will be magnified in later operation.
Cycle Life Testing
Cycle charge-discharge tests evaluate long-term performance decay. Engineers usually consider 80% of initial capacity as the end of life. This step verifies not only the cells themselves but also the pack assembly, connections, and thermal management, making it a key part of battery pack quality control.
Conclusion
Building a lithium battery pack may seem complex, but with the right knowledge, tools, and attention to safety, anyone can start creating reliable power solutions. Take action today, experiment carefully, and explore our website for more expert guides and insights on battery assembly, performance optimization, and safety best practices. Empower your projects with confidence and precision!
FAQs
How to make lithium ion battery for car
Building a lithium-ion battery for a car involves selecting automotive-grade cells, designing proper series and parallel configurations, integrating a BMS, ensuring thermal management, and complying with safety standards.
How to build a 48v lithium battery pack
A 48V lithium battery pack is typically built using 13 series lithium-ion cells, combined with parallel groups to reach the desired capacity, along with a compatible 48V BMS.
How to build a 12v lithium battery pack
A 12V lithium battery pack usually consists of 3 or 4 cells in series depending on chemistry, with parallel connections added for higher capacity.
How to build a lithium polymer battery pack
Lithium polymer battery packs require careful pouch cell handling, mechanical support, cell voltage balancing, and a BMS designed specifically for LiPo chemistry.
How to build a 18650 lithium battery pack with bms
To build a 18650 lithium battery pack with BMS, select matched 18650 cells, assemble them in series/parallel for desired voltage and capacity, spot-weld nickel strips for connections, install a BMS for protection, and secure cells with holders and insulation for safety and stability.
How to build lithium battery pack for golf cart
Golf cart lithium battery packs require high-capacity cells, vibration-resistant structure, and a high-current BMS to replace traditional lead-acid systems.
Is it cheaper to build your own battery?
Building your own battery can be cheaper for small projects, but for high-capacity or automotive applications, professionally manufactured packs are often safer and more cost-effective.
How many 18650 batteries does it take to make a car battery?
A car battery pack can require hundreds to thousands of 18650 cells, depending on the vehicle’s voltage, capacity, and energy requirements.
