What’s the optimal 2000 watt inverter wire size?





When using a 2000 watt inverter, choosing the appropriate wire size is crucial for ensuring the safe and efficient operation of the device. The thickness of the wire not only affects power transmission efficiency but also directly impacts the safety of the equipment. Selecting the correct wire size can effectively reduce inverter voltage drop, prevent overheating, and avoid potential electrical fires.

This article will provide detailed information on how to choose the appropriate 2000 watt inverter wire size for different voltage systems and offer additional tips for selecting the right wire.

Units of 2000 watt inverter wire size

Units of 2000 watt inverter wire size



AWG (American Wire Gauge) is the standard unit used in the United States to specify wire thickness. A smaller AWG number indicates a thicker wire, while a larger number indicates a thinner wire. The common range of AWG sizes is from 0 AWG to 40 AWG. For high-current applications, such as a 2000 watt inverter, smaller AWG values (e.g., 2 AWG, 4 AWG) are typically used. AWG is the most widely used wire gauge system in North America, suitable for various power and electronic devices.

Relationship between power, current, and wire thickness

To select the correct 2000 watt inverter wire size, it's essential to understand the relationship between power and current. The wattage of an inverter indicates the maximum power it can provide. By using the formula Current (Amps) = Power (Watts) / Voltage (Volts), we can calculate the current required by the inverter.

Relationship between power, current, and wire thickness


The higher the current, the thicker the wire needed to carry the current safely and prevent overheating.

Factors for choosing 2000 watt inverter wire size

The primary factors in determining 2000 watt inverter wire size are as follows:

Voltage level: Low-voltage systems (e.g., 12V systems) produce higher currents, necessitating thicker wires. Systems with 24V or 48V produce lower currents, allowing the use of thinner wires. Higher current levels require thicker wires to handle the load and prevent overheating or damage. In contrast, high-voltage systems have lower currents, allowing for thinner wires.

Wire length: The length of the wire directly affects its resistance. Longer wires have higher resistance, leading to increased voltage drop. Voltage drop impacts power transmission efficiency and may prevent the energy storage inverter from providing sufficient voltage, affecting device operation. Therefore, longer cables require thicker wires to reduce resistance and prevent excessive voltage drop.

Factors for choosing 2000 watt inverter wire size


Current strength: Current strength refers to the amount of current the wire needs to carry. The higher the current, the thicker the wire must be to transmit the current safely without overheating or creating hazards. When choosing 2000 watt inverter wire size, especially when operating at low voltages (e.g., 12V), the current will be high, necessitating very thick wires.

The American Wire Gauge (AWG) system is used to measure wire thickness. The following table provides recommended wire sizes for a 2000 watt inverter based on different voltages and cable lengths:

12V system (low voltage, high current): In a 12V system, the high power inverter generates a relatively high current, approximately 167 amps. To ensure safety and performance, thicker wires are required.

Cable Length (Feet)



Recommended 2000 watt inverter wire size (AWG)

1-10 Feet

2/0 AWG

10-20 Feet

3/0 AWG

20-30 Feet

4/0 AWG



Recommended 2000 watt inverter wire size



24V system (medium voltage, medium current): In a 24V system, the 2000 watt inverter generates approximately 83 amps. Wire sizes can be slightly reduced.

Cable Length (Feet)



Recommended 2000 watt inverter wire size (AWG)

1-10 Feet

4 AWG

10-20 Feet

2 AWG

20-30 Feet

1/0 AWG



48V system (high voltage, low current): In a 48V system, the 2000 watt inverter generates a lower current, approximately 42 amps, so thinner wires can be used.

Cable Length (Feet)



Recommended 2000 watt inverter wire size (AWG)

1-10 Feet

8 AWG

10-20 Feet

6 AWG

20-30 Feet

4 AWG

Additional tips for selecting wire

In addition to choosing the right 2000 watt inverter wire size, the following factors should be considered.

Material choice: Copper wires are preferable to aluminum wires due to their lower resistance and better conductivity. Copper wires can carry more current without excessive heat. Additionally, copper is more corrosion-resistant and has a longer lifespan compared to aluminum, which can oxidize over time, increasing resistance and decreasing conductivity.

Insulation: Ensure the wire has appropriate insulation to prevent short circuits and electrical fires. Choose insulation materials like PVC, PE, or XLPE based on environmental conditions and voltage levels. Insulation should have sufficient heat resistance and chemical corrosion resistance to suit the inverter’s operating environment.

Voltage drop: Consider voltage drop when selecting wire size. Excessive voltage drop may prevent the inverter from functioning correctly. Choose an appropriate 2000 watt inverter wire size to minimize voltage drop. Thicker wires have lower resistance and thus less voltage drop. Selecting the right wire size is crucial to minimize voltage drop based on current and cable length.

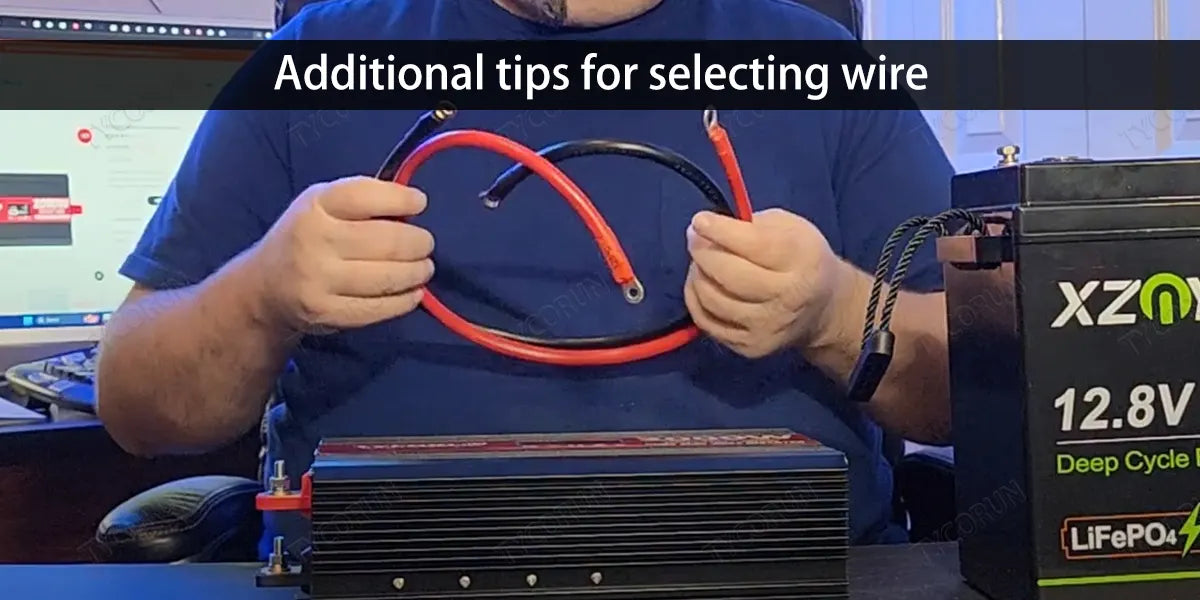

Additional tips for selecting wire


Environmental conditions: Take into account the environmental conditions the wire may be exposed to, such as temperature, humidity, and chemicals. Choose suitable wire types and insulation materials for these conditions. For instance, in humid environments, use waterproof and moisture-resistant insulation to prevent deterioration. For exposure to chemicals, select insulation with chemical resistance to avoid corrosion.

Fuses or circuit breakers: Use appropriate fuses or circuit breakers to protect the circuit from overloads and short circuits. Ensure these devices are in good working condition and perform regular checks and maintenance as needed.

Conclusion

Selecting the correct 2000 watt inverter wire size is crucial for the proper operation and safety of a 2000 watt inverter. By understanding the relationship between power, current, and wire thickness, and choosing the appropriate wire size based on voltage level, wire length, and current strength, you can effectively avoid issues such as overheating and excessive voltage drop.
