TYCORUN 1000w Inverter Pure Sine Wave delivers outstanding performance for back-up power and off-grid system, which is widely used in emergencies or household. And the 1000 watt pure sine wave inverter advanced pure sine...
TYCORUN 1000w Inverter Pure Sine Wave delivers outstanding performance for back-up power and off-grid system, which is widely used in emergencies or household. And the 1000 watt pure sine wave inverter advanced pure sine wave technology provide cleaner, smoother and more reliable power for sensitive equipment without any interference. Brilliant design using top electronic materials makes grid tie inverter 1000w safe, stable with long machine-life.

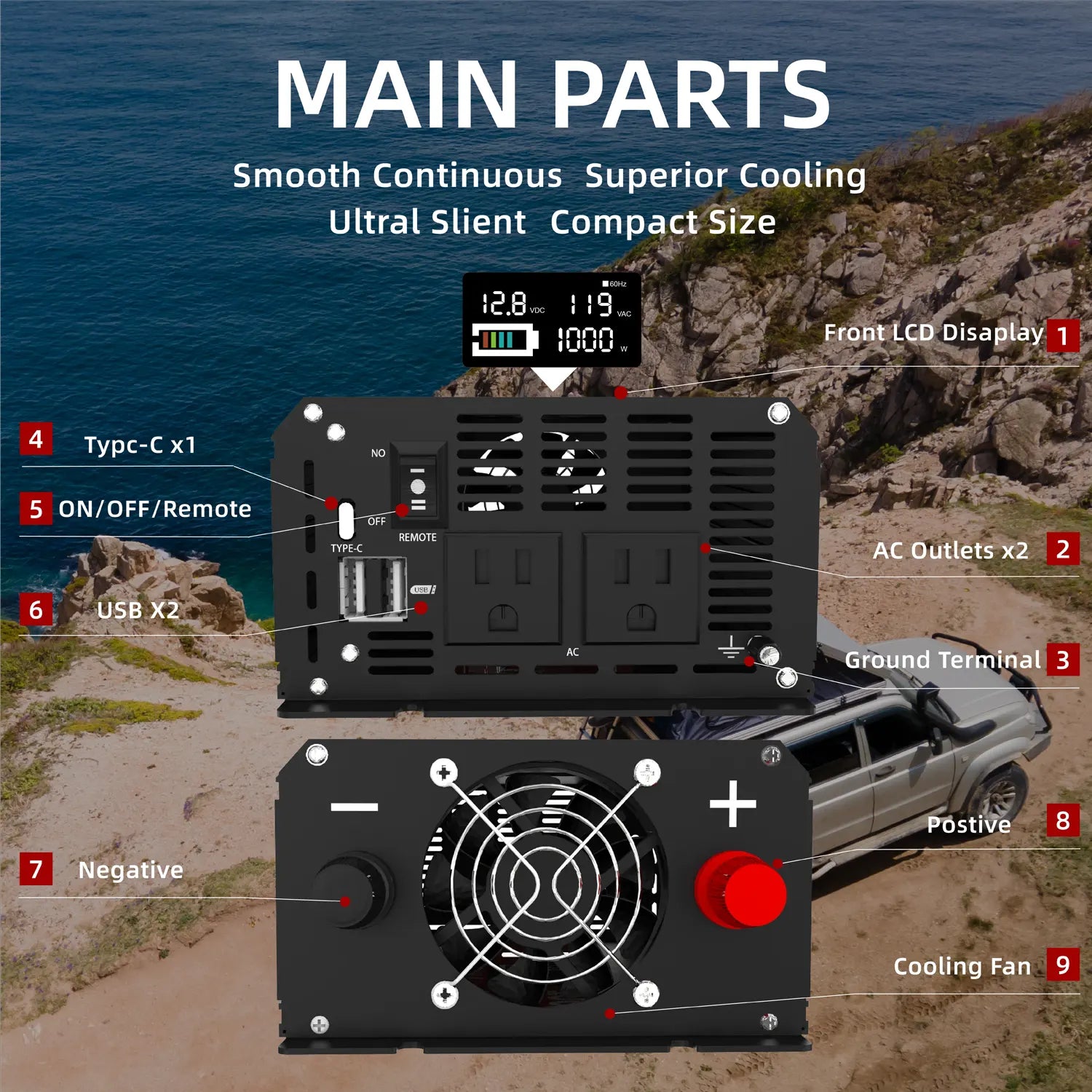

Key features of TYCORUN 1000w Inverter Pure Sine Wave 12V DC to AC Power Inverter for Car, Rv, Off Grid, Camp, Solar System
Compact, lightweight and robust design
Optimized for 12 VDC system voltage
Smooth power for safe operation of sensitive electronics
Leading easy-to-read LCD indicator display
Integrative safety protection (under-voltage, over-voltage, AC Over-load, Over Heating,
Short Circuit and Reverse connect)
Excellent surge rating : 2 × the power rating
Ground-fault circuit interrupter protection
Ultra-silent cooling system
Ergonomics design wireless remote control
Build-in AC sockets, USB ports, type-C port
TYCORUN 1000w Inverter Pure Sine Wave specifications
Model
TYCORUN 1000w Inverter Pure Sine Wave 12V DC to AC Power Inverter for Car, Rv, Off Grid, Camp, Solar System
Rated Input Voltage
12VDC
Continuous Power
1000W
Peak Power
2000W
Input Voltage Range
9.5-16VDC
Over Voltage Shutdown
16VDC
Low Voltage Shutdown
9.5VDC
Low Voltage Alarm
10VDC
No Load Current
1.3A
Over Load Protection
1000W
Output Voltage
¨110V / ¨120V
AC±10%(Refer to label)
Frequency
¨60Hz ±1Hz
Wave Form
Pure Sine Wave
Efficiency
≥ 90%
Over Heat Protection
149℉±8℉
Short Circuit Protection
Yes
Display
LCD
USB
5VDC, 0-2.4A × 2 MAX 3.4A
Type-C
Max 20W
Cooling Fan
Thermal controlled cooling fan.
It works only when the inverter housing temperature reaches 104°F.
Operating Temperature (Automatic Recovery/ Shutdown)
32-113℉
Storage Temperature
14-113℉
TYCORUN 1000w Inverter Pure Sine Wave 12V DC to AC Power Inverter for Car, Rv, Off Grid, Camp, Solar System
Pure Sine Wave
The TYCORUN 1kw inverter output a pure sine wave waveform, which has the same quality as utility or domestic power. This smooth pure sine wave allows you to operate sensitive electronic devices that require a high quality waveform with little harmonic distortion. Almost any electronic device could be powered using TYCORUN power inverter 1000w.
TYCORUN 1000 watt inverter is more efficient(high efficiency 90%) which able to use less energy and allow more devices to be used. More energy savings from low no-load losses. Superb load shock resistance will not harming your equipment when running.
Soft Start Technology
Thyristor soft start technology included can effectively reduce the starting inrush current of the pure sine wave inverter 1000w, reduce the impact on the power grid, improve the quality of power and the appliance life. Overall, inverter 12 220v 1000w improve the stability and reliability of the system which is especially necessary for equipment that has an inductive load or electrical motor. To better protect the machine, you'd better turn on the switch of the appliance first before starting the 1000 watt power inverter.
TYCORUN Lithium will ship your batteries for free anywhere in the lower 48 US States. Batteries ship UPS ground freight and will arrive in 5-7 days to most of the US. You will receive an email with a tracking number after your order ships. The USPS does not allow for batteries to be shipped to Post Office boxes (PO Box). Please use a street address. Larger batteries (over 300 watts) require hazmat shipping. We pay the cost of Hazmat and freight (typically $90 to $150 a battery). You pay $0 for shipping. Shipping to Alaska and Hawaii is higher due to federal law that requires that batteries ship Air Freight and have Hazmat protection. Shipping to Canada includes duty, GST and import fees.
Shipping to Canada?
TYCORUN Lithium can ship to most Canadian provinces served by UPS or FedEx. Canadian shipping is calculated at checkout and we pay for duty & GST fees for you. The fastest way to calculate your estimated shipping cost outside of the contiguous United States (“Lower 48”) would be to add the desired product(s) to your cart on our site and enter your shipping information. This will not complete the transaction, but will give the system enough information to calculate the cost. The total price and cost breakdown should update with the new totals.
Can I get my battery shipped to me faster?
TYCORUN Lithium can ship to most Canadian provinces served by UPS or FedEx. Canadian shipping is calculated at checkout and we pay for duty & GST fees for you. The fastest way to calculate your estimated shipping cost outside of the contiguous United States (“Lower 48”) would be to add the desired product(s) to your cart on our site and enter your shipping information. This will not complete the transaction, but will give the system enough information to calculate the cost. The total price and cost breakdown should update with the new totals.
1.How safe are Lithium Ion Batteries? Our LiFePo4 batteries are considered to be safe, non-flammable and non-hazardous by international and federally regulated standards.
2.What can I use a Lithium Battery for? Our Batteries are commonly used for marine, RV and golf cart applications. You can use our lithium batteries for any application that would normally use a single or multiple lead acid, GEL or AGM batteries.
3.How do I change my batteries to Lithium? After you take out your old batteries, place our batteries in the same way. You can use the same cables to reconnect into the Lithium Battery.
4.How do I charge a Lithium battery? Our lithium ion technology uses the latest and most advanced built-in battery protection system to prevent damage to the battery. You may utilize a standard charger for our products, although in some cases a lithium charger may be required to charge the batteries.
5.What battery do I need for my RV or Camper Van? The industry standard house battery size used in most RVs, Campers, and #VanLife builds is the 12v 100Ah battery. This is a drop in replacement for AGM and most lead acid batteries. If you are charging off your engine's alternator we recommend a Victron DC-DC smart charger. If charging off solar panels we recommend a Victron Smart Solar charge controller, or if you have a solar charge controller choose the lithium setting. A handy size chart for number of batteri
Inverter FAQ 1.Is a 3000W inverter safe? A 3000W inverter is generally safe, provided it is installed and used correctly. Following our user manual, purchasing recommendations, and local electrical regulations are key to ensuring safety. Make sure the inverter is not exposed to adverse environmental conditions such as high temperatures, high humidity, or direct sunlight, and keep it away from liquids to enhance safety. Additionally, avoid inserting metal objects into the inverter's ventilation ports and disconnect the power supply before operation.
2.Where can a 3000W inverter be used? A 3000W inverter is suitable for various applications, including but not limited to home backup power, solar power generation, camping and outdoor activities, and commercial use.
3.How do you use a 3000W inverter? Place the inverter in a well-ventilated location away from high temperatures and humidity. Connect the appropriate DC power source to the inverter's DC input port. Connect the devices you want to power to the inverter's AC output ports. Turn on the inverter, and monitor the indicator lights to check the operational status. During use, regularly inspect the inverter to ensure it is operating correctly.
4.How long can a 3000W inverter be used? The lifespan of a 3000W inverter varies depending on its quality and usage. Typically, it can last between 5 to 15 years. Regular maintenance and proper usage can extend the inverter's lifespan. Higher-quality inverters tend to be more durable and provide longer-term reliability.
5.How do you connect a 3000W inverter to a battery? Ensure the battery is in good working condition and has the required voltage and capacity. Use the correct cables to connect the positive/negative terminal of the battery to the positive/negative terminal of the inverter's DC input. Securely fasten the cables, ensuring they are not damaged or loose. Turn on the inverter to begin converting the battery's DC power into AC power.
I have been using this pure sine wave inverter for a while now and it has exceeded my expectations. Excellent surge rating is a significant advantage. I find it really can provide reliable power and improve the stability of my electrical system. With ground fault circuit break protection, the inverters I purchased previously would not have this. They introduced and understood my needs and offered me a solution. Finally, I bought a 1000w pure sine wave inverter. Inverters are relatively small and uncomplicated and can do it themselves.
If you're on the hunt for a reliable power conversion unit that can handle your electrical needs, a 1000w inverter might be just what you need. This guide aims to provide comprehensive answers. Are you in the market for a 1000W inverter?
Whether you need it for your solar setup, off-grid lifestyle, or to run several devices and appliances simultaneously, making the right choice can feel overwhelming given the multitude of options available.
Don't worry, we're here to help! In this comprehensive guide, we'll explore different 1000w inverters, how you can use them, and provide useful advice to help you choose the right one for your needs.
1. What is a 1000w inverter
Let's start at the beginning. A 1000w inverter is a versatile power conversion device that takes direct current (DC) and transforms it into alternating current (AC) with a capacity of 1000 watts.
This portable equipment allows you to run various appliances and devices by using battery or other DC power sources.
2. What are the advantages of a 1000w inverter
Let's explore why a power inverter 1000w is a compelling choice:
● Versatility
One of the standout features of a 1000w inverter is its versatility. It's a workhorse that can handle a broad spectrum of electrical devices, making it an excellent choice for various applications.
● Portability
Many 1000w inverters are designed with portability in mind. They're typically compact and lightweight, so you can take them on the road for camping trips, use them in your RV, also can be used in RV solar power system.
● Emergency power(with 12v battery)
During power outages, a 1000 watt pure sine wave inverter is essential. When your primary power source fails, you can connect it to a battery or other power supply to keep crucial devices running.
Also bear in mind that the combination of 12V DC to AC sine wave inverter and 12v battery is used where power consumption is not large. Here are the suitable 12v battery collections that you can consider.
RV enthusiasts and those with home solar systems can benefit significantly from a 1000w inverter. It allows you to use your appliances and devices even when you're off the grid or away from traditional power sources.
3. What will a 1000w inverter run
You're curious about what you can run with a 1000w inverter. While the specific devices can depend on their power requirements, here are some common examples:
Laptops and computers: A 1000w inverter can easily handle the power needs of your laptop or desktop computer.
Lights and small appliances: It's perfect for lighting appliances that light up your space and operating small appliances like fans, blenders, or coffee makers.
Power tools (with lower wattage): Many power tools fall within the 1000-watt range, making a 1000w inverter a handy companion for DIY projects.
These are just a few examples, and the vast possibilities make a 1000w inverter a versatile addition to your electrical setup.
4. How to use a 1000 watt power inverter
Now that you're familiar with what a 1000 watt power inverter is and what it can power, let's delve into how to make the most of this powerful device.
① How to connect the 1000w inverter with the battery and load
To use a 1000w inverter effectively, you'll need to connect it properly to the power source (usually a battery) and the device you want to power. This involves ensuring secure connections proper wiring, and taking necessary precautions to avoid electrical mishaps.
To connect a 1000W inverter to a battery and load:
Link the inverter's terminals to the battery, with a fuse for protection.
Connect your appliances to the inverter's AC outlets.
Carefully monitor the battery's voltage to prevent over-discharge, which could damage the battery.
These steps ensure a safe and efficient connection of your inverter to both the power source and the devices you want to run.
② How to use a 1000w inverter in an RV system
Integrating a 1kw inverter into your recreational vehicle can significantly enhance your on-the-road experience if you're an RV enthusiast. We'll walk you through the steps to seamlessly incorporate it into your RV's electrical system.
To use a 1kW inverter in an RV system, follow these steps:
Connect the 1kW inverter to your RV's battery system using appropriate cables and connectors.
Ensure the inverter is properly grounded and securely mounted to prevent vibration or movement.
Plug your RV's appliances or devices into the inverter's AC outlets, making sure not to exceed the 1kW (1000W) power rating.
Monitor your battery levels to prevent over-discharging, and consider adding a battery charger to replenish power when needed.
③ How to use a 1000w inverter in a home solar system
For homeowners with solar power setups, a 1000w inverter can help optimize your solar energy usage. Learn how to integrate it into your home solar system to effectively harness the sun's power.
Using a 1000W inverter in a home solar system involves the following steps:
Solar panel connection: Connect your solar panels to a charge controller that is compatible with your inverter.
Battery connection: If your home solar system uses batteries to store excess energy, connect the inverter to the battery bank using appropriate cables.
Inverter installation: Mount and install the 1000W inverter in a well-ventilated, safe location. Ensure proper grounding and follow the manufacturer's instructions for installation.
AC load connection: Connect your household appliances or devices to the AC outlets on the inverter, ensuring that the total power load does not exceed 1000W.
Monitoring and maintenance: Regularly monitor the performance of your solar system and inverter. Maintenance may include checking for loose connections, cleaning solar panels, and ensuring the battery bank's health (if used).
5. How long will a 1000w inverter run
The runtime of your grid tie inverter 1000w hinges on several factors. It's not just about the inverter's capacity. The size and condition of the connected battery and the power drawn from your devices play critical roles. Runtime of a power inverter 1000w depends on:
Battery capacity: Higher capacity means longer runtime.
Load power: Total power consumption of connected devices.
Battery type: Lithium-ion batteries often provide longer runtime.
Inverter efficiency: Not all power is converted, affecting runtime.
Continuous vs. peak load: Running devices at continuous power uses less energy.
Inverter shutdown: Some inverters shut down at low battery voltage.
Load profile: Usage patterns impact runtime.
Climate: Extreme temperatures can reduce inverter efficiency.
Maintenance: Proper care extends inverter life.
In summary, runtime varies based on these factors, ranging from minutes to hours or more.
6. How many batteries do I need for a 1000w inverter
For a 1000W inverter, you typically need at least one deep-cycle battery with a capacity of around 100Ah for short-term use. Consider multiple batteries for more extended use or higher loads and ensure that they are connected in parallel to meet the power requirements and extend runtime.
7. How long will a 12v battery last with a 1000w inverter
A 12V battery powering a pure sine wave inverter 1000w inverter can last around 1.2 hours under a continuous 1000W load. Moreover, the inverter 12 120v 1000w converts 12V DC to 120V AC power, drawing about 83.33 amps from the battery. However, real-world factors such as battery age and efficiency losses can affect the actual runtime.
8. Can you run a TV off a 1000w inverter
Entertainment matters, even when you're off the grid. Yes, you can typically run a TV off a 1000W inverter. Most modern LED or LCD TVs have a power consumption of well below 1000 watts, often in the range of 50-200 watts, depending on the size and features of the TV.
9. What is the amperage of a 1000-watt inverter
To calculate the amperage drawn by a 1000 watt inverter, you can use the formula:
Amperage (A) = Power (W) / Voltage (V)
Assuming the standard voltage in most cases is 120V in the United States:
Amperage = 1000W / 120V ≈ 8.33 amps
So, a 1000-watt inverter draws approximately 8.33 amps(what are amps) when operating at its total 1000-watt capacity on a 120V system. Keep in mind that there will be some additional amperage drawn to account for inverter inefficiencies, so it's a good idea to check the product specifications for the exact amperage draw of your specific inverter.
10. How can I find the lowest 1000w inverter price
Online price comparison: Compare 1000w inverter prices on websites like Amazon, eBay, and Walmart. Also this is our online shop that aims to help you get the lowest 1000w inverter price.
Set a budget: Determine your budget for the inverter.
Check local retailers: Visit electronics or hardware stores for in-store prices.
Consider refurbished or used: Look for certified refurbished or used inverters.
Subscribe to deal alerts: Sign up for alerts from deal-finding websites.
Shop during sales events: Look for deals during Black Friday, Cyber Monday, etc.
Read reviews: Check customer reviews for product quality.
Consider brand and warranty: Stick to reputable brands with good warranties.
Shipping costs: Be aware of shipping fees when comparing prices.
Bundle deals: Look for inverter bundles with additional components.
Local classifieds: Check local classifieds for second-hand inverters.
Patience: Wait for the 1kw inverter price drop if possible.
11. How to choose the best 1000 watt inverter
Step 1: Calculate your power needs.
Step 2: Decide between pure sine wave and modified sine wave.
Step 3: Match the input voltage to your battery.
Step 4: Check continuous and surge power ratings.
Step 5: Prioritize safety features.
Step 6: Consider size and portability.
Step 7: Ensure the correct input/output connections.
Step 8: Check for noise levels.
Step 9: Choose a reputable brand with a warranty.
Step 10: Read user reviews and ratings.
Step 11: Stay within your budget.
Step 12: Think about future power needs.
Step 13: Ensure compatibility with your battery and charging system.
Step 14: Consult an expert if unsure.
In the choice of specific 1000w inverter, Tycorun is the first to be recommended. You can choose according to the actual needs of your home. Widely used in emergencies or families. Advanced pure sine wave technology provides cleaner, smoother, and more reliable power to sensitive equipment to provide electricity needs for homes.
If the energy storage battery is connected, when these basic applications are met, the remaining power will go into the battery. Prepare for energy demand at night and cloudy weather to ensure the efficient operation of the entire home energy storage system.
12. Conclusion
With this comprehensive guide, you'll have a firm grasp of what a 1000w inverter is and the knowledge and know-how to use it effectively and make informed purchasing decisions. Whether you're gearing up for an outdoor RV adventure, preparing for power outages, or optimizing your solar energy setup, your journey with a 1000w inverter starts here.
