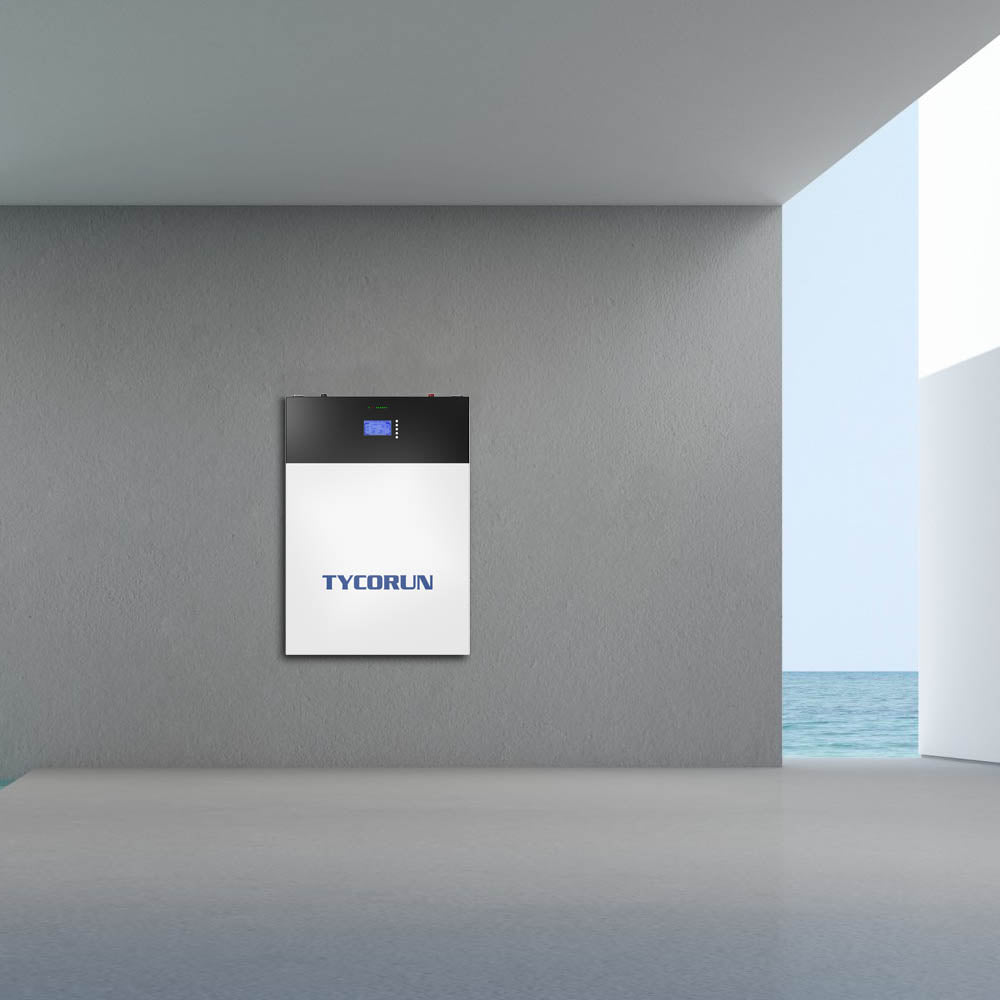

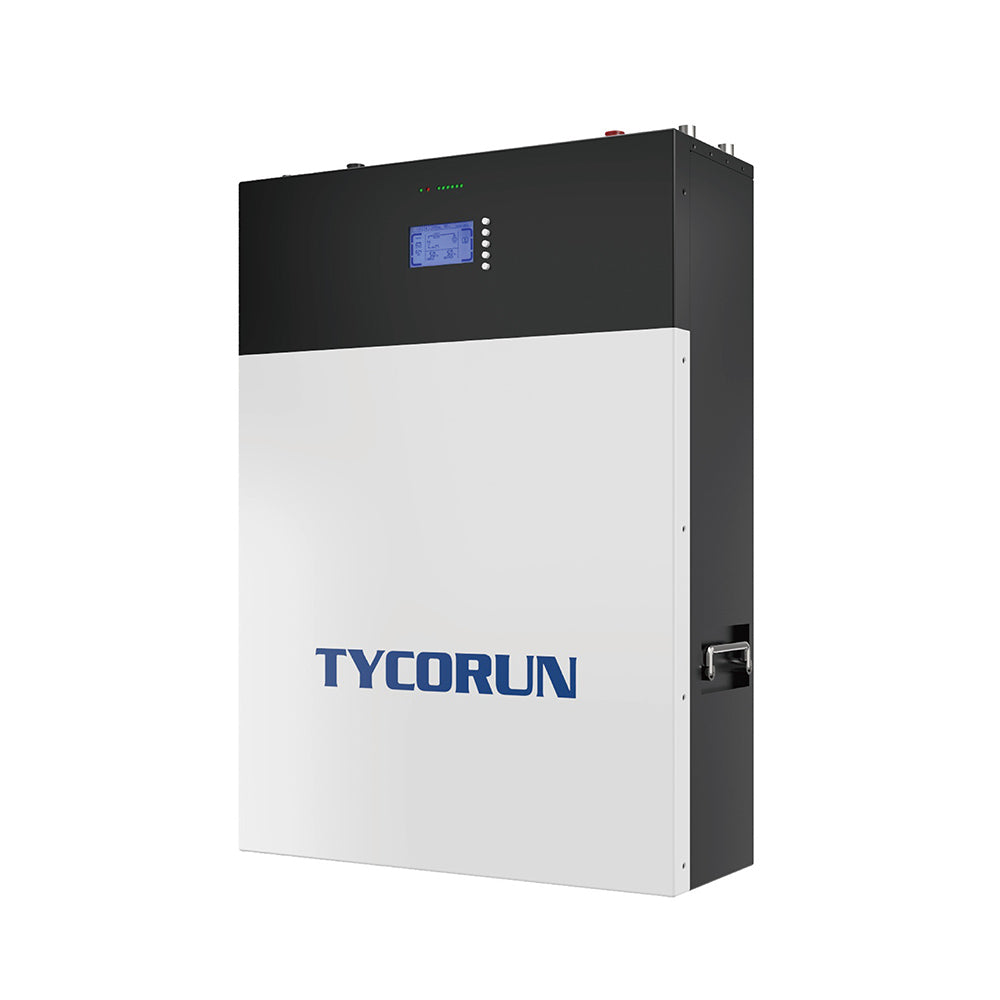

Tycorun 51.2Volt 200Ah Deep Cycle Wall Mounted Lithium Battery

Name: Tycorun 51.2Volt 200Ah Deep Cycle Wall Mounted Lithium Battery
Brand: tycorun
SKU: TC51200
Price: 1699.99 USD
Availability: OutOfStock

Five advantages will make you like our 51.2V 200Ah lithium ion battery:

Very powerful: fast start-up, powerful discharge capacity, and high-rate instantaneous discharge capacity can easily drive your load.

Long battery life: The natural characteristics of lithium iron phosphate batteries can last three times longer than lead-acid batteries.

Ultra-safe: Excellent and powerful BMS protection system, providing a variety of protections to ensure the safety of the battery, and at the same time let you use it more confidently

Ultra-lightweight: small size, light weight, easy to use.

About Tycorun 51.2Volt 200Ah Lithium Deep Cycle Wall Mounted Battery

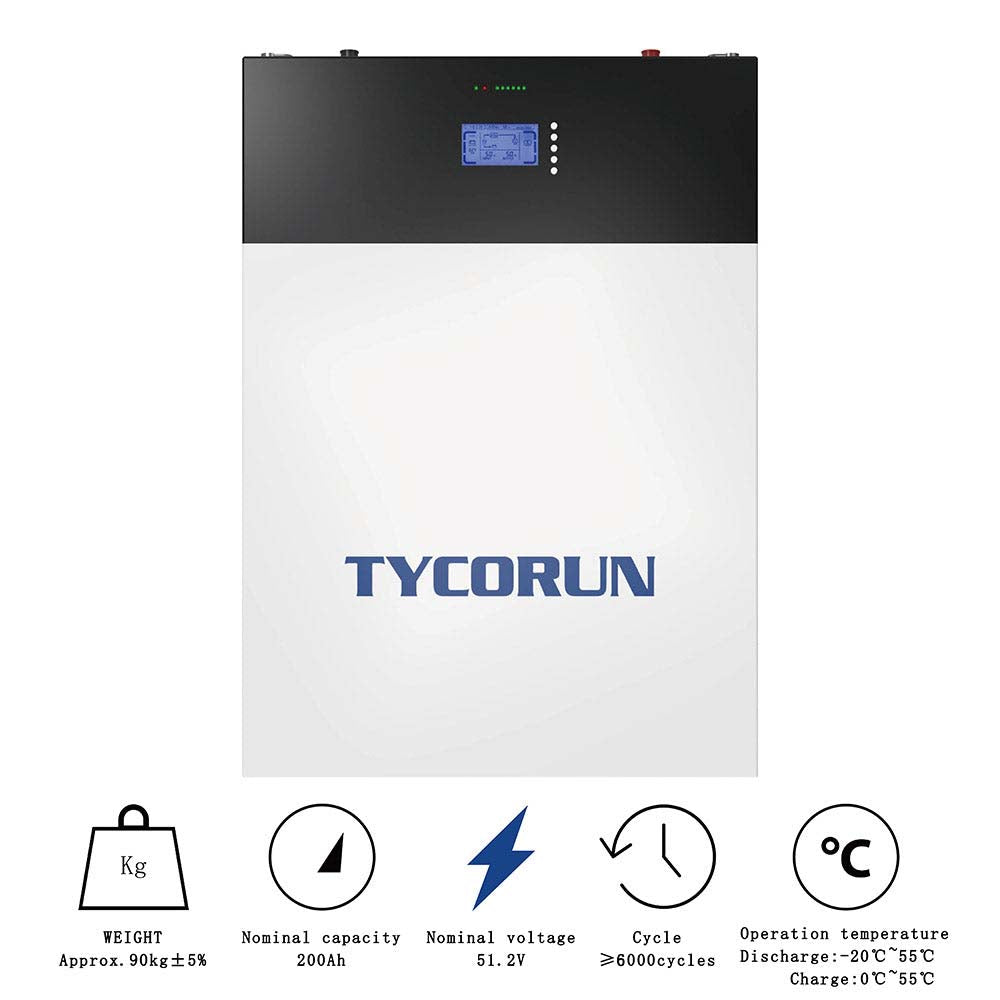

Name	Tycorun 51.2V 200AH environmental protection lithium iron phosphate battery specifications
Nominal Voltage	51.2V
Nominal Capacity:	200Ah@0.2C
Energy	10240Wh
Internal Resistance	≤100mΩ (Under 20±5℃ Environment Temperature , the Usage Frequency of Fully Charge( 1KHz) , Use AC Internal Impedance test machine to test)
Cycle Life	>6000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.
Voltage at end of Discharge	<=43.2V (Discharge Cut-off Voltage)
Charging Voltage	57V
Max Charging Current(Icm)	100A (Ampere-meter ,Maximum allowable charging current of the battery pack)
Limited Charging Voltage(Ucl)	57.6V (Volta-meter (Serial*3.6V) ,Battery pack safe charging voltage)
Max Discharging current	100A (Maximum discharge current allowed by the battery pack)
Discharge Cut-off voltage(Udo)	43.2V (Voltage of the battery when the discharge is stopped)
Charge Temperature	0 ℃ to 55 ℃ Recommend（25±3℃）；≤85%RH storage moisture range.
Disxcharge Temperature	-20 ℃ to 55 ℃ Recommend（25±3℃）；≤85%RH storage moisture range.
Storage Temperature	-20 ℃ to 25 ℃ Recommend（25±3℃）；≤85%RH storage moisture range.
Plastic Case	ABS

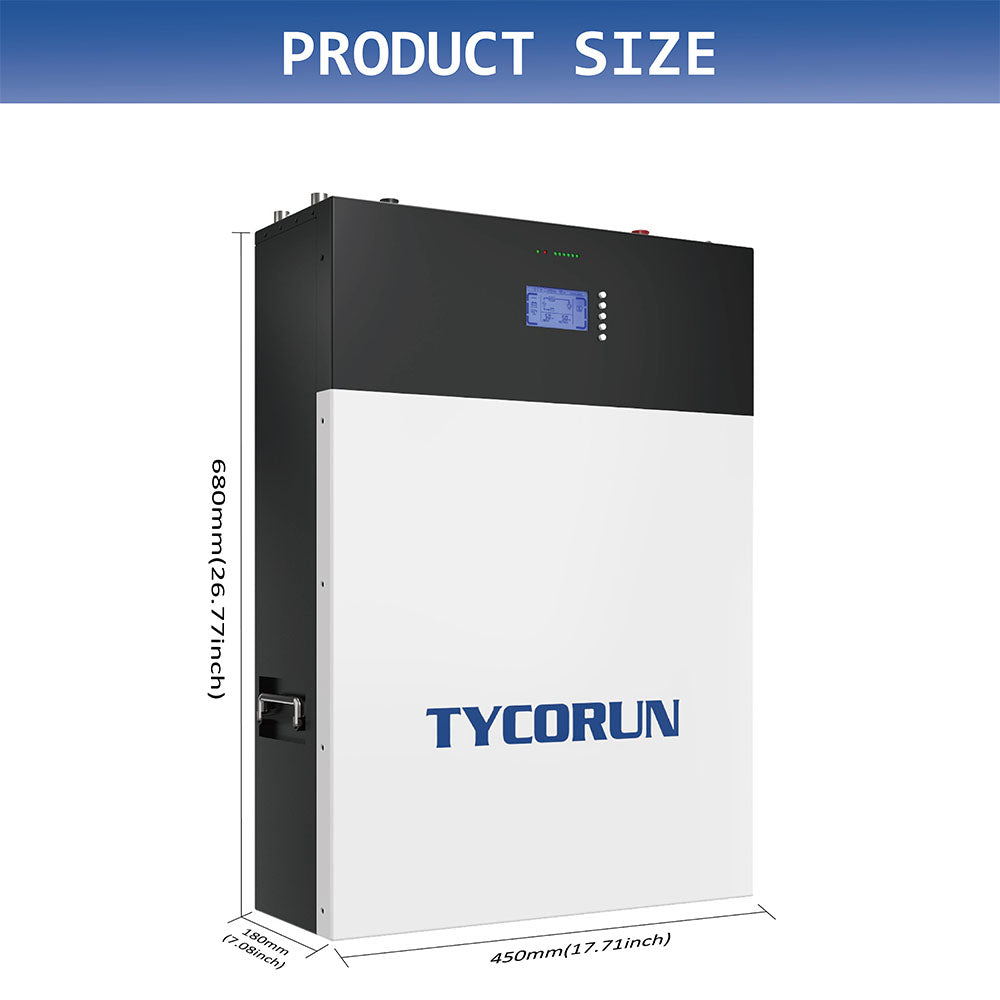

Dimension(LWH)	680485180mm
Weight	Approx. 90Kg

Long Cycle Life

High Safety

High Energy Density

Stable Discharge

Low Maintenance Cost

Environmentally Friendly

OEM & CUSTOMIZATION

Product specifications, interfaces and system configurations can be customized for different applications.

TECHNICAL SUPPORT

Get support with product selection, system integration, setup and after-sales service.

GLOBAL DELIVERY SUPPORT

Shipping and project delivery are arranged according to product type, order size and destination.

QUALITY & AFTER-SALES

Warranty, technical guidance and after-sales support are provided according to the product and project scope.
