About Tycorun 48V 150A 7KWH Powerwall Home Battery Deep Cycle Wall Mounted Lifepo4 Battery Storage FEATURES & BENEFITS
- 1:LiFePO4 composition – provides exceptional safety and longevity
- 2:High safety and reliability
- 3:6,000cycles/10 year service life
- 4:Consistent performance over wide temperature range

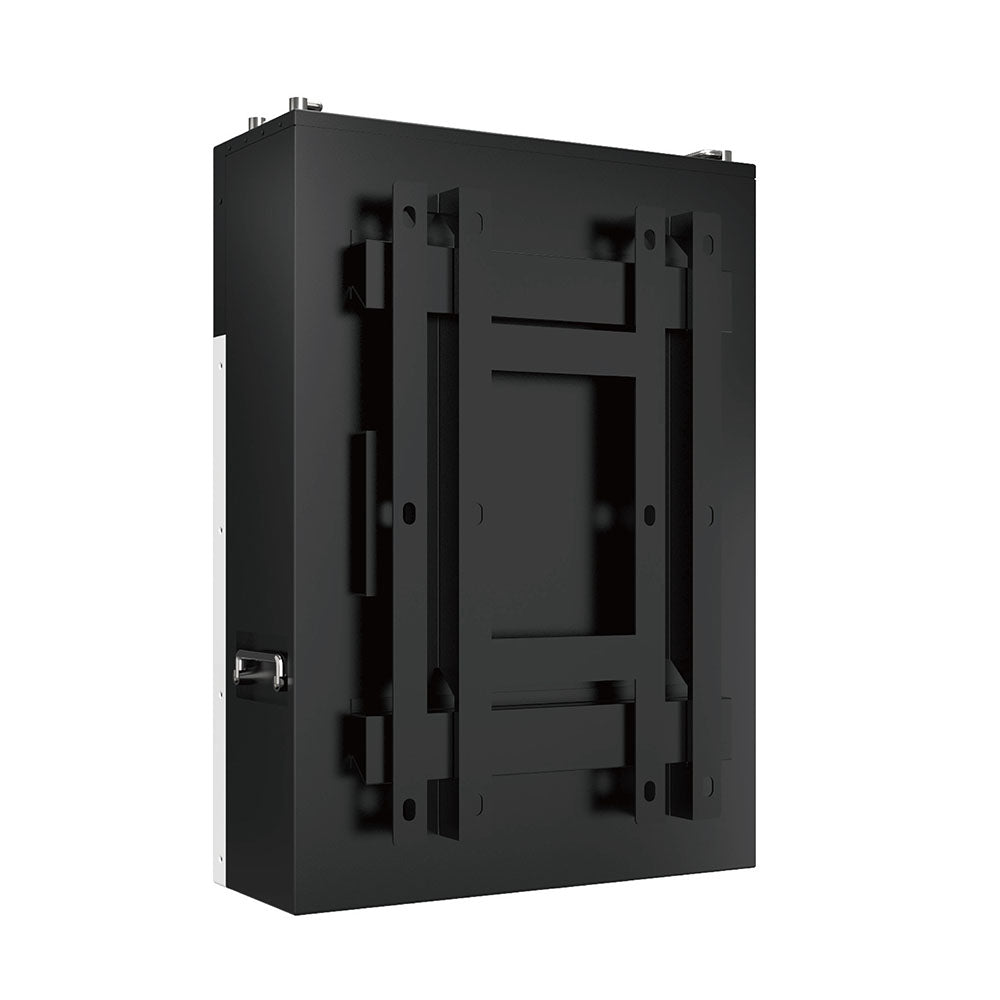

- 5:Wall-mounted, convenient installation
- 6:Integrated state-of-the-art BMS to manage and monitor battery information including voltage, current and temperature as well as balance cell charging/discharging rates
- 7:5 year warranty
APPLICATION
Home System
Tycorun 48V 150A 7KWH Powerwall Home Battery Deep Cycle Wall Mounted Lifepo4 Battery Storage Battery Specifications |
|
Model No |
TC-7kWh |
Nominal Parameters |
|
Voltage |
48V |
Capacity |
150Ah |
Energy |
7.2kWh |

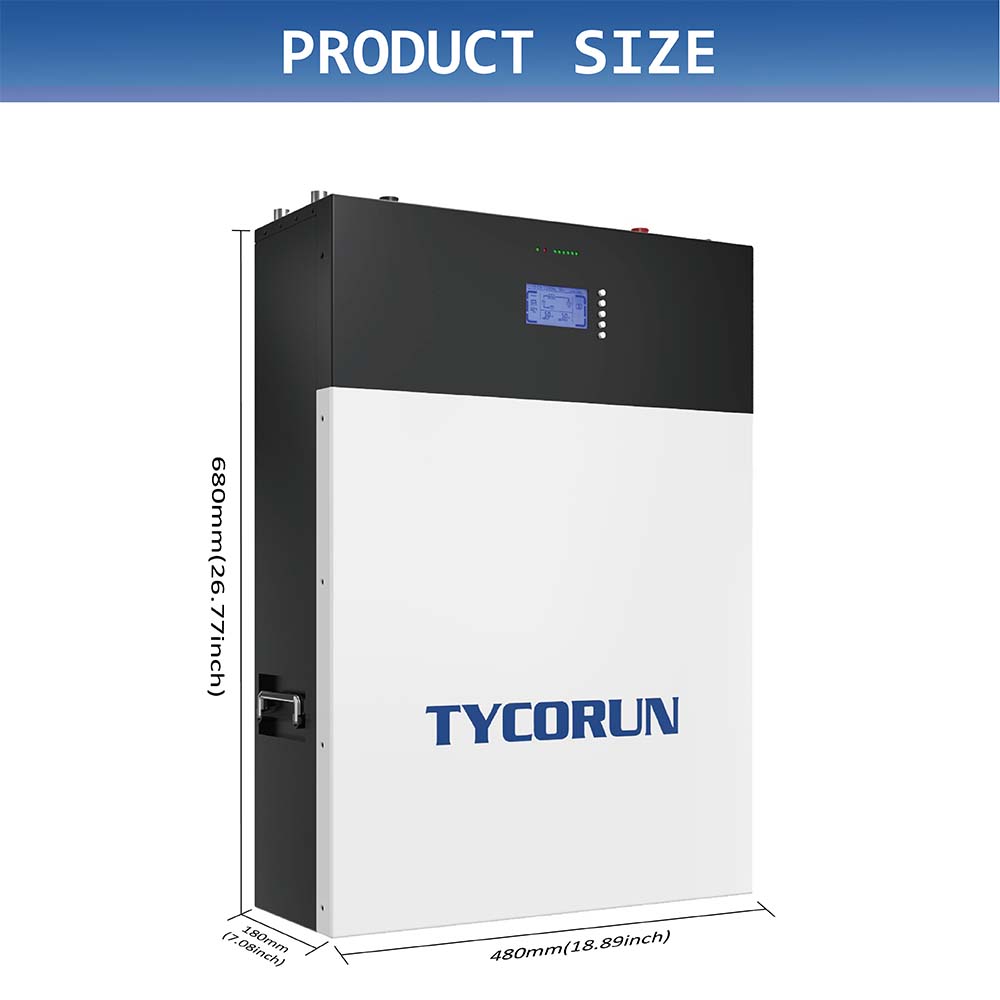

Dimensions (L x W x H) |
680 x480 x180(220)mm |
Weight |
72kg |
Basic Parameters |
|
Life time(25°C) |
5 years |
Life cycles(80% DOD, 25°C) |
6000Cycles |
Storage time / temperature |
5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C |
Operation temperature |
-20°C to 60°C @60+/-25% Relative Humidity |
Storage temperature |
0°C to 45°C @60+/-25% Relative Humidity |
Lithium Battery Standard |
IEC62619,UN38.3,ROHS,CE-EMC |
Enclosure protection rating |
IP21 |
Electrical Parameters |
|
Operation voltage |
42-53.5 Vdc |
Max. charging voltage |
53.5 Vdc |
Max. charging and discharging current |
100A |
Max Power |
4800W |
Details |
Standard |
Overcharge detection voltage |
3.65±0.025V |
Overcharge detection delay time |
Typical:1.0s |
Overcharge release voltage |
3.38±0.02V |
Over-discharge detection voltage |
2.5±0.02V |
Over-discharge detection delay time |
Typical:1.0s |
Over-discharge release voltage |
2.9±0.02V or charge release |
discharge Over-current protection current1 |
130±10A |
discharge Over-current detection delay time 1 |
1S |
discharge Over-current protection current 2 |
150±10A |
discharge Over-current detection delay time 2 |
≤100m±50ms |
Charge OC protection current |
130±10A |
Short protection current |
350±10A |
Protection condition |
Load short |
Detection delay time |
≤300us |
Protection release condition |
Charging release |
Charge high T protection |
55±3℃ |
Charge high T recover |
50±5℃ |
Discharge high T protection |
65±5℃ |
Discharge high T recover |
60±5℃ |
Charge low T protection |
-5±5℃ |
Charge low T recover |
0±5℃ |
Discharge low T protection |
-20±5℃ |
Discharge low T recover |
-15±5℃ |
Balance threshold voltage |
3.45V |
Communication |
It has RS232 /RS485 and Canbus standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage, current, environment temperature, and charging/discharging current. |
Alarm |
It has over-temperature, over charge, under-voltage, over-current, short circuit alarm Function. |
