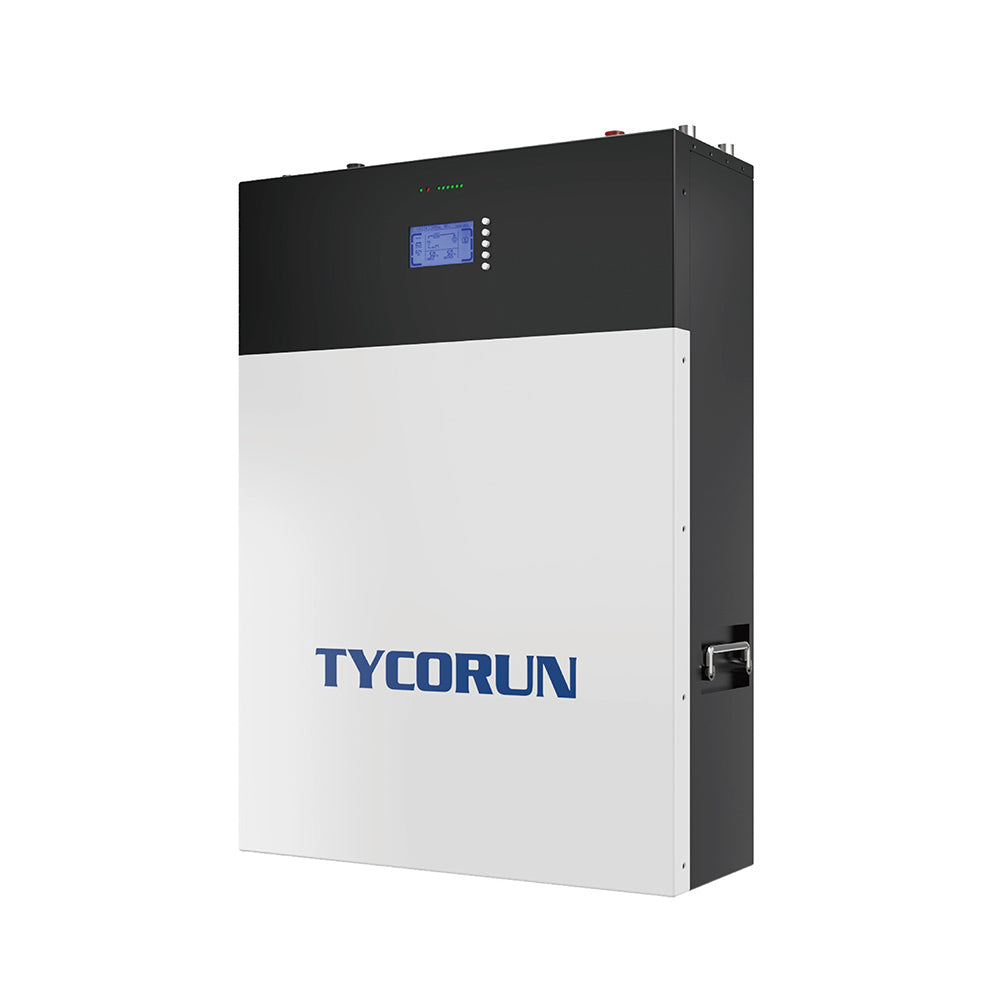

Tycorun 10KWh PowerWall 48V 200Ah Deep Cycle Wall Mounted Lifepo4 Battery For Home System

LiFePO4 composition – provides exceptional safety and longevity
High safety and reliability
6,000cycles/10 year service life
Consistent performance over wide temperature range

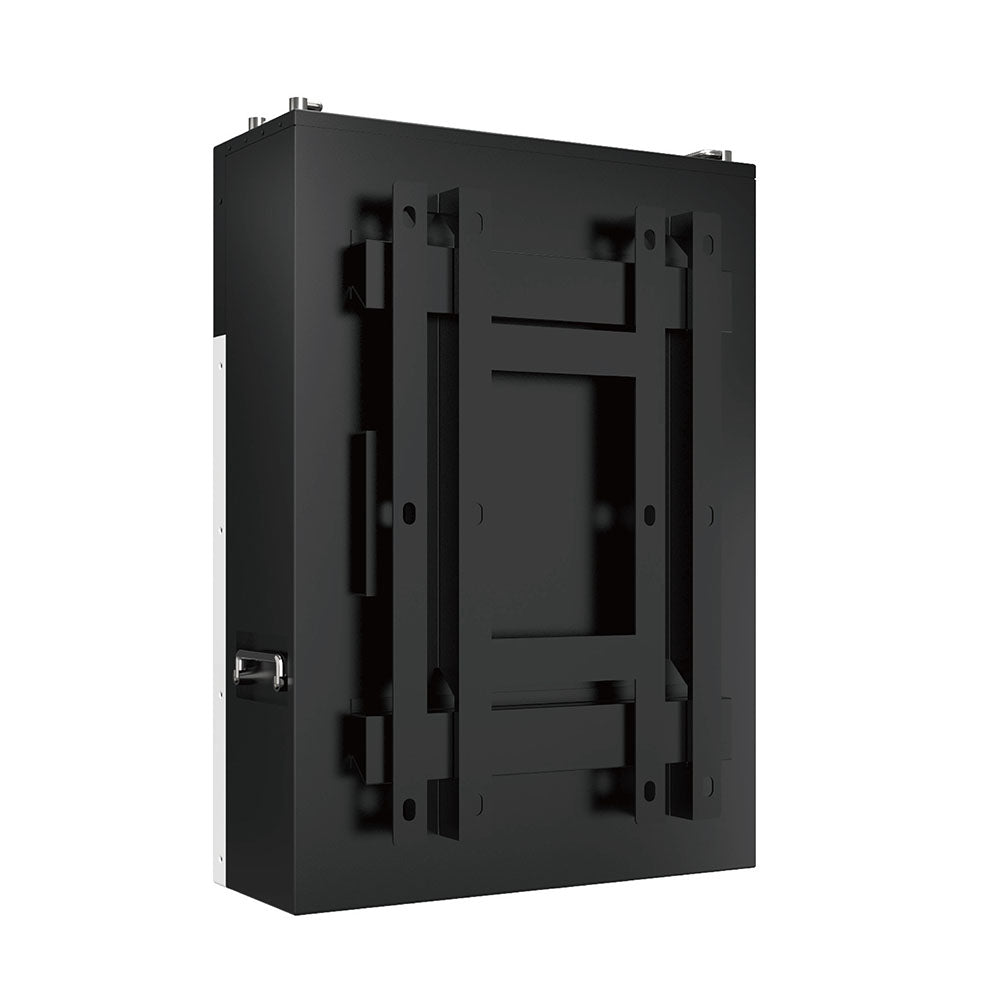

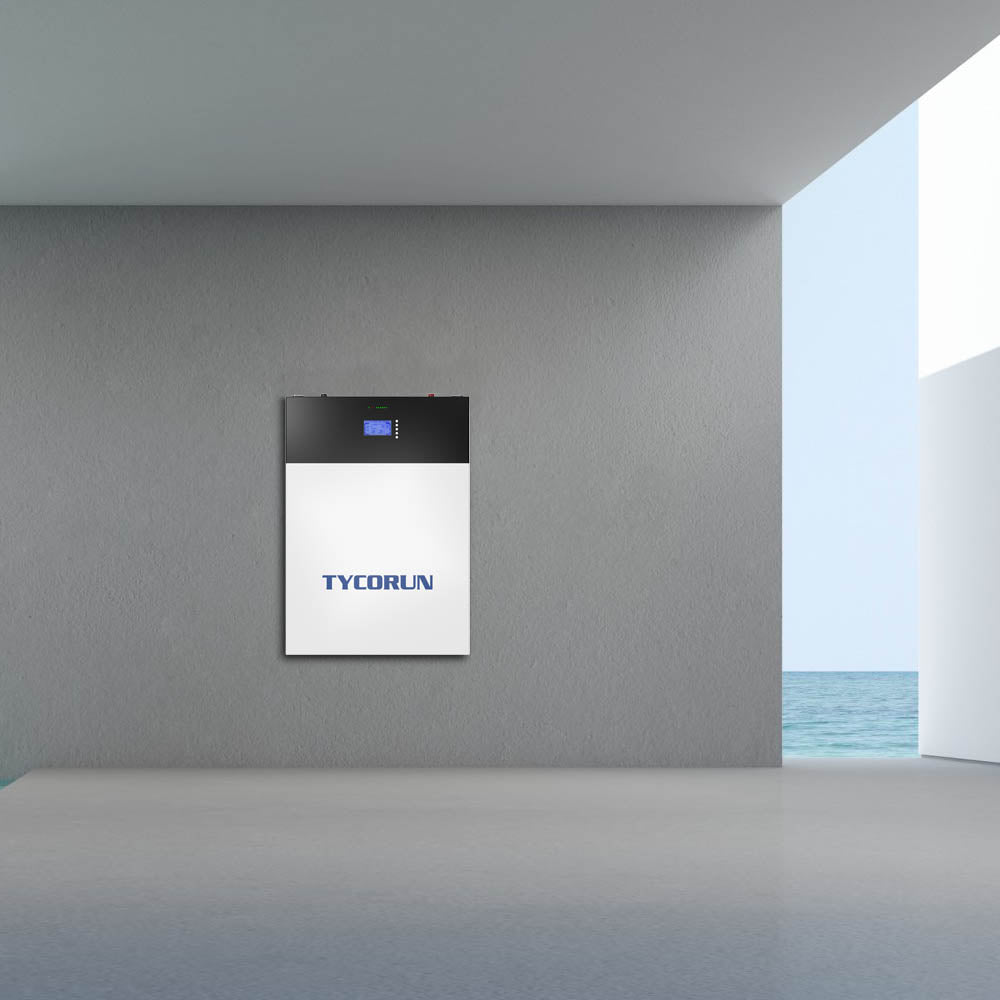

Wall-mounted, convenient installation
Integrated state-of-the-art BMS to manage and monitor battery information including voltage, current and temperature as well as balance cell charging/discharging rates
5 year warranty

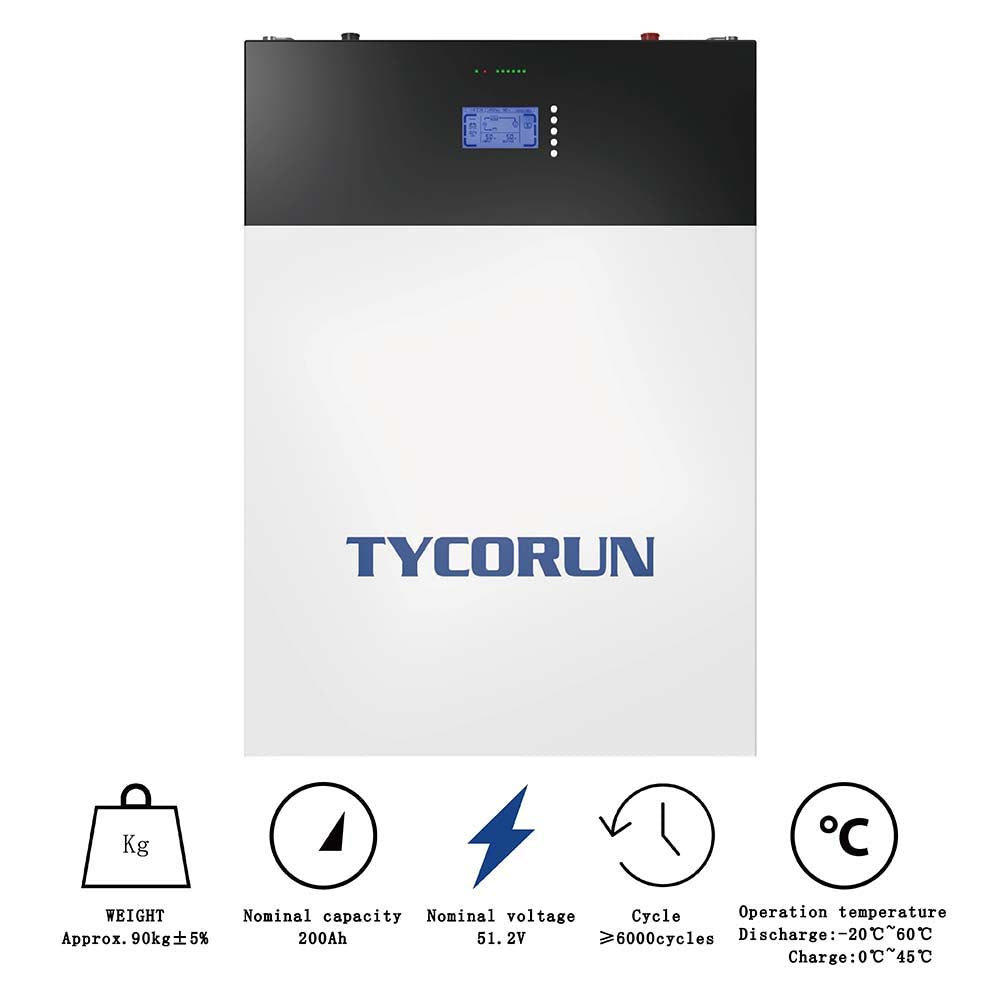

Tycorun 10KWh PowerWall 48V 200Ah Deep Cycle Wall Mounted Lifepo4 Battery Specifications
Model No	TC-10kWh
Nominal Parameters
Voltage	48V
Capacity	200Ah
Energy	9.6kWh

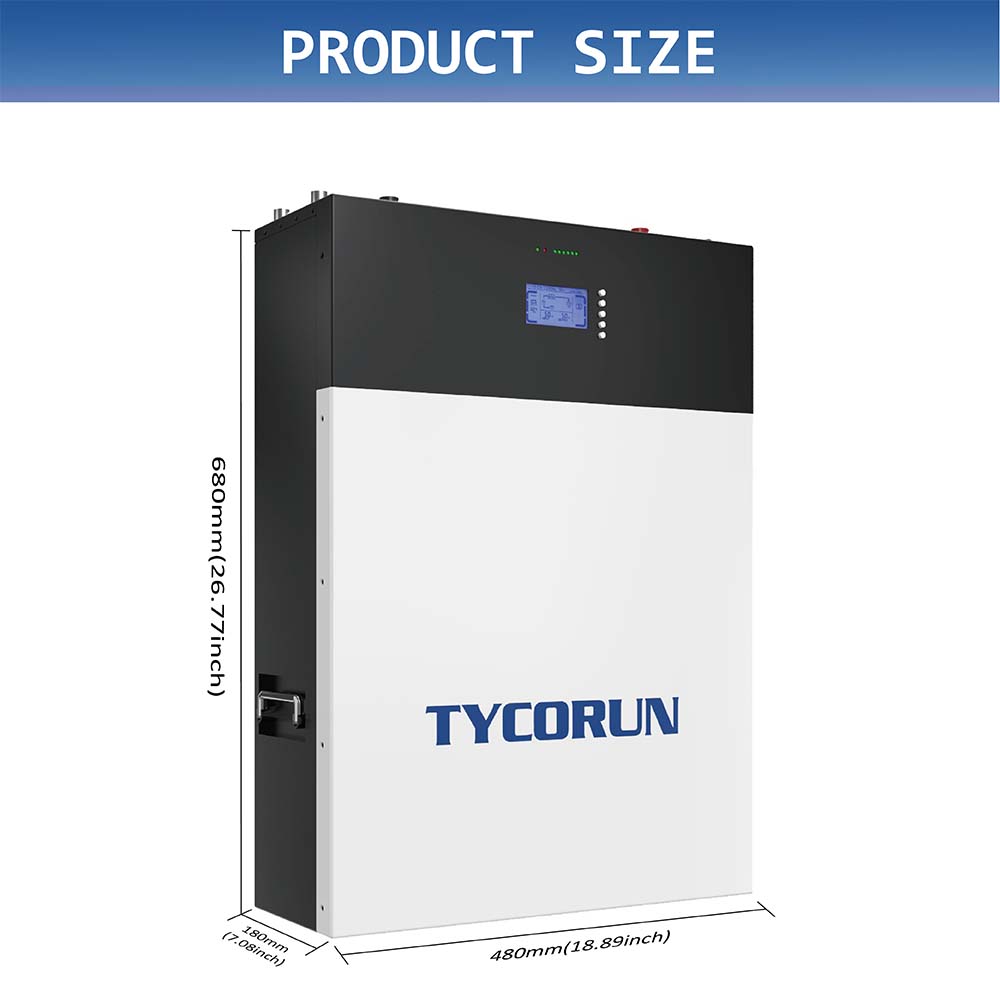

Dimensions (L x W x H)	680 x480 x180(220)mm
Weight	90kg
Basic Parameters
Life time(25°C)	5 years
Life cycles(80% DOD, 25°C)	6000Cycles
Storage time / temperature	5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature	-20°C to 60°C @60+/-25% Relative Humidity
Storage temperature	0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard	IEC62619,UN38.3,ROHS,CE-EMC
Enclosure protection rating	IP21
Electrical Parameters
Operation voltage	42-53.5 Vdc
Max. charging voltage	53.5 Vdc
Max. charging and discharging current	100A
Max Power	4800W
Details	Standard
Overcharge detection voltage	3.65±0.025V
Overcharge detection delay time	Typical:1.0s
Overcharge release voltage	3.38±0.02V
Over-discharge detection voltage	2.5±0.02V
Over-discharge detection delay time	Typical:1.0s
Over-discharge release voltage	2.9±0.02V or charge release
discharge Over-current protection current1	130±10A
discharge Over-current detection delay time 1	1S
discharge Over-current protection current 2	150±10A
discharge Over-current detection delay time 2	≤100m±50ms
Charge OC protection current	130±10A
Short protection current	350±10A
Protection condition	Load short
Detection delay time	≤300us
Protection release condition	Charging release
Charge high T protection	55±3℃
Charge high T recover	50±5℃
Discharge high T protection	65±5℃
Discharge high T recover	60±5℃
Charge low T protection	-5±5℃
Charge low T recover	0±5℃
Discharge low T protection	-20±5℃
Discharge low T recover	-15±5℃
Balance threshold voltage	3.45V
Communication	It has RS232 /RS485 and Canbus standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage, current, environment temperature, and charging/discharging current.
Alarm	It has over-temperature, over charge, under-voltage, over-current, short circuit alarm Function.

Long Cycle Life

High Safety

High Energy Density

Stable Discharge

Low Maintenance Cost

Environmentally Friendly
