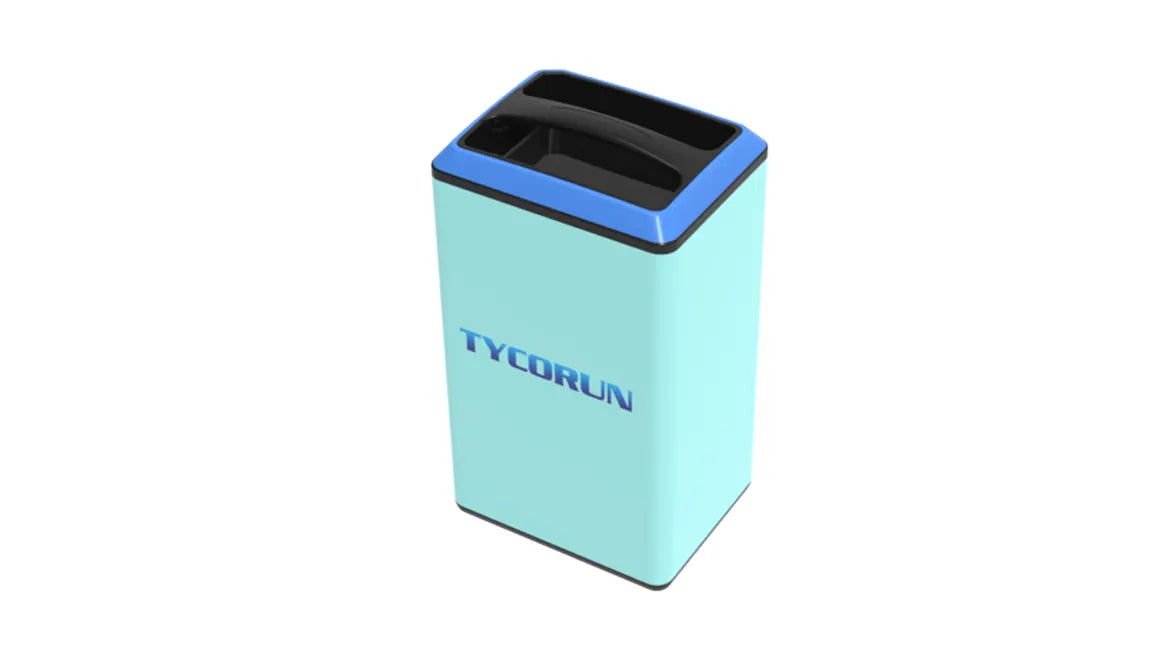

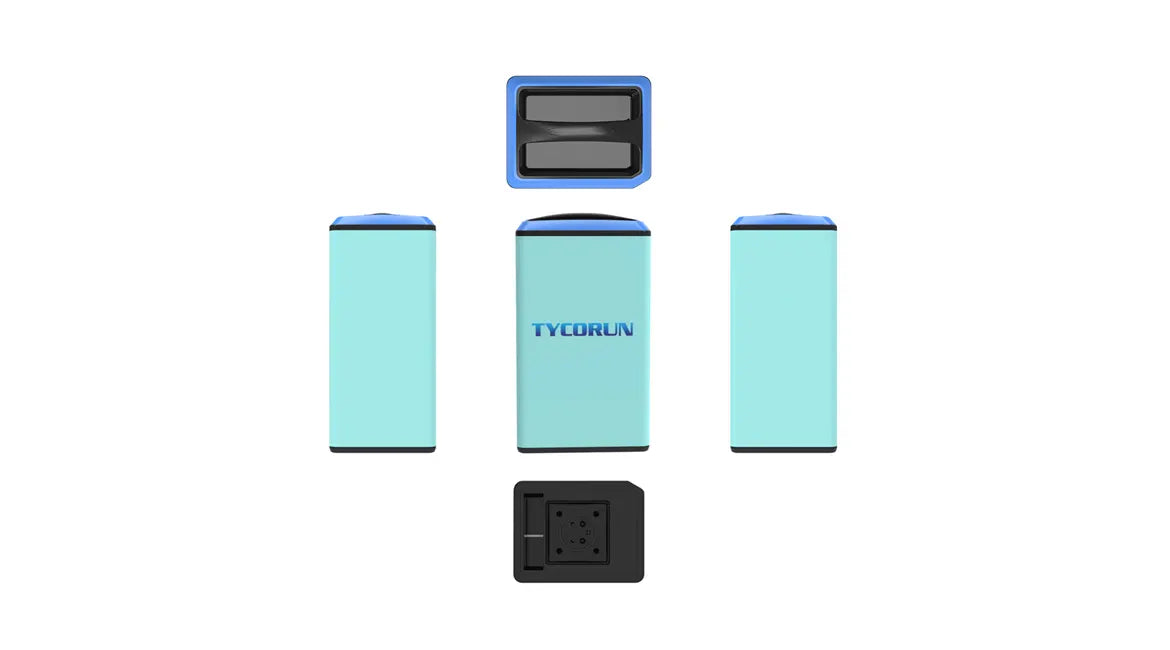

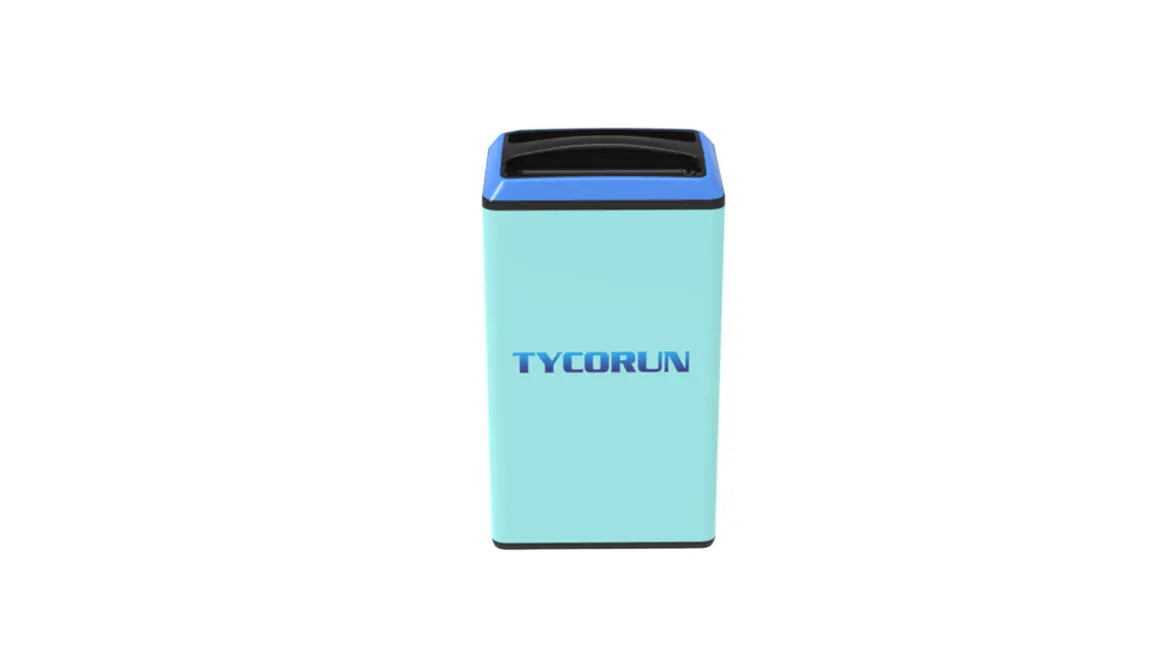

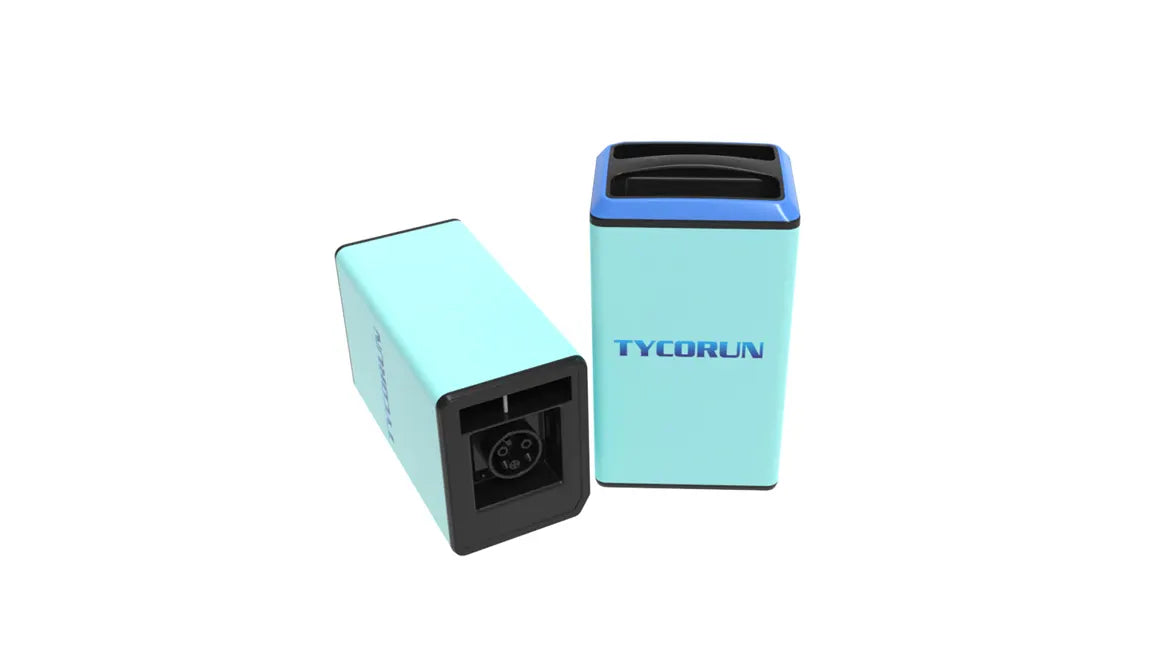

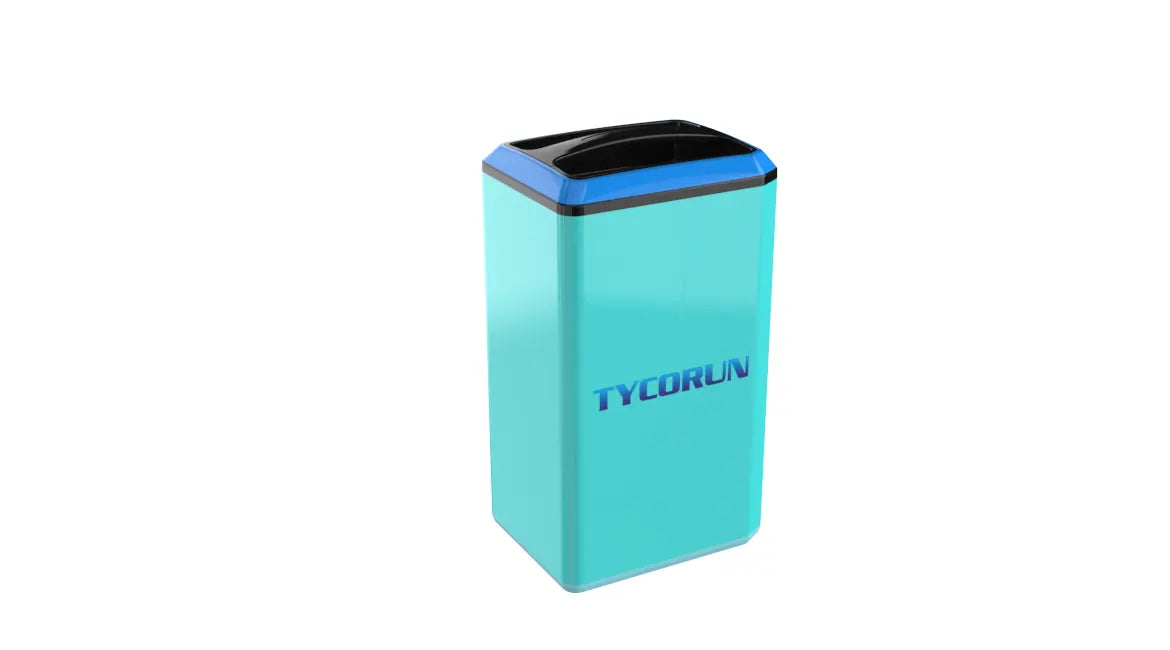

Customized 60v 30ah lithium battery swappable for battery replacement cabinet

TYCORUN 60v 30ah lithium battery swappable is suitable for TYCORUN 8/9 ports swap station and can be uesd in electric motorcycle, ebike, electric scooter and other two/three - wheeled electric vehicles. There is also 48v/72v swap battery for you to choose from.

Cell voltage	3.7V
Customized	Yes
Sold separately	Yes
Charging ports	8
Waterproof	IP54
Charge rate	0.5C
Series-parallel connection	16S12P
Cell type	NMC
Cell capacity	2.9ah
4G internet	On line

Features of Customized 60v 30ah lithium battery swappable for electric scooter, motorcycle, ebike

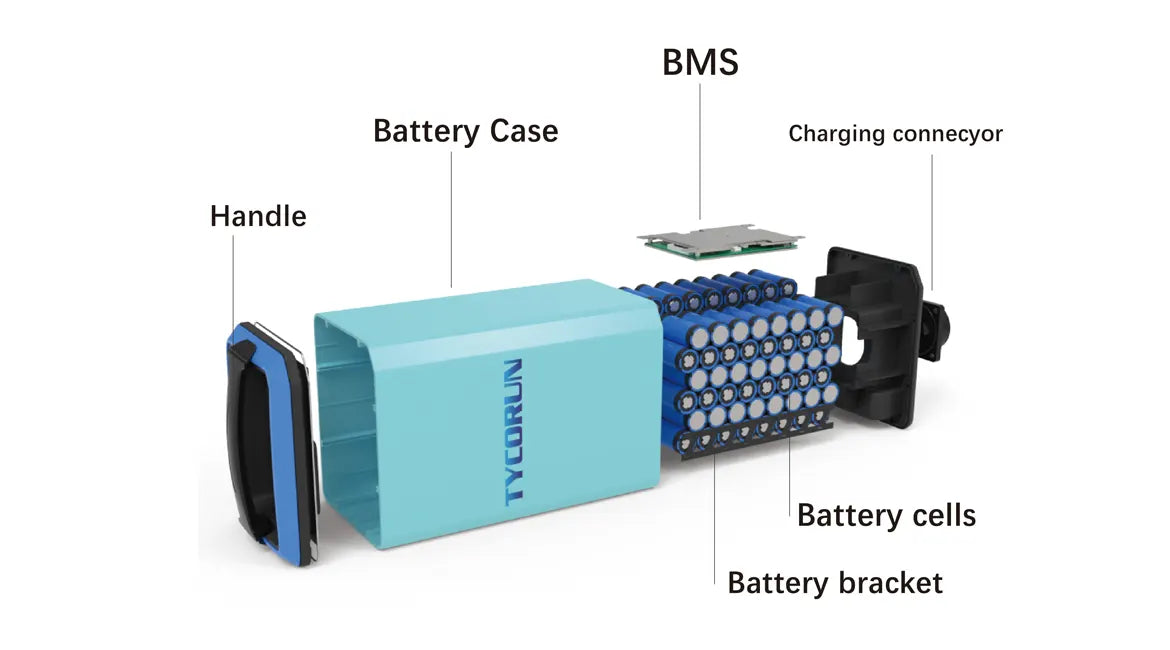

The battery pack uses Samsung-29E battery cell.
The battery module contains a 2G module and a positioning system.
The battery can be controlled remotely and turned off according to the actual situation.
The batteries are suitable for individual rental or sale, and can be charged on a basis of days, months or number of times.
EV battery swapping stations can identify the battery SOC and pop out the fully charged one to use.

Customization available	Battery health diagnosis
Smart control	Internet available
Safe charging	Anti theft
Long life	GPS
Dust proof	Warning function
Water proof	IC card

Specifications of TYCORUN 60v 30ah lithium battery swappable

Project	Specifications
Typical capacity	34.8Ah (standard test)
Minimum capacity	34Ah (standard test)
Energy	About 2Kwh
Nominal voltage	60V
Shipping voltage	59.2V
AC internal resistance	180mΩ
Charge cut-off voltage	67.2V
Discharge cut-off voltage	44V
Standard charging method	Charge with constant current 0.5C (17A), charge to 67.2V constant voltage, cut-off current 0.01C (0.34A), ambient temperature 25℃
Maximum charging current	≤15A
Standard discharge method	Discharge with constant current 1C (34A), discharge to discharge protection, ambient temperature 25℃
Maximum continuous discharge current	≤90A
Product Size	160205365mm
Weight	About 13KG
Cycle life	≥1000 times (standard charge and discharge mode), capacity ≥80%
Shell material	Aluminum profile: 3mm
Connection plug	Anti-reverse plug connector
Way of communication	RS485 2G module
Range of working temperature	Charging: 0℃–+45℃(0.2C charge) Discharge: -10～60℃（0.5C discharge）
Storage temperature	-10℃~+45℃
