Custom 5-slot Battery Swap Cabinet for Electric 2/3/4-Wheelers

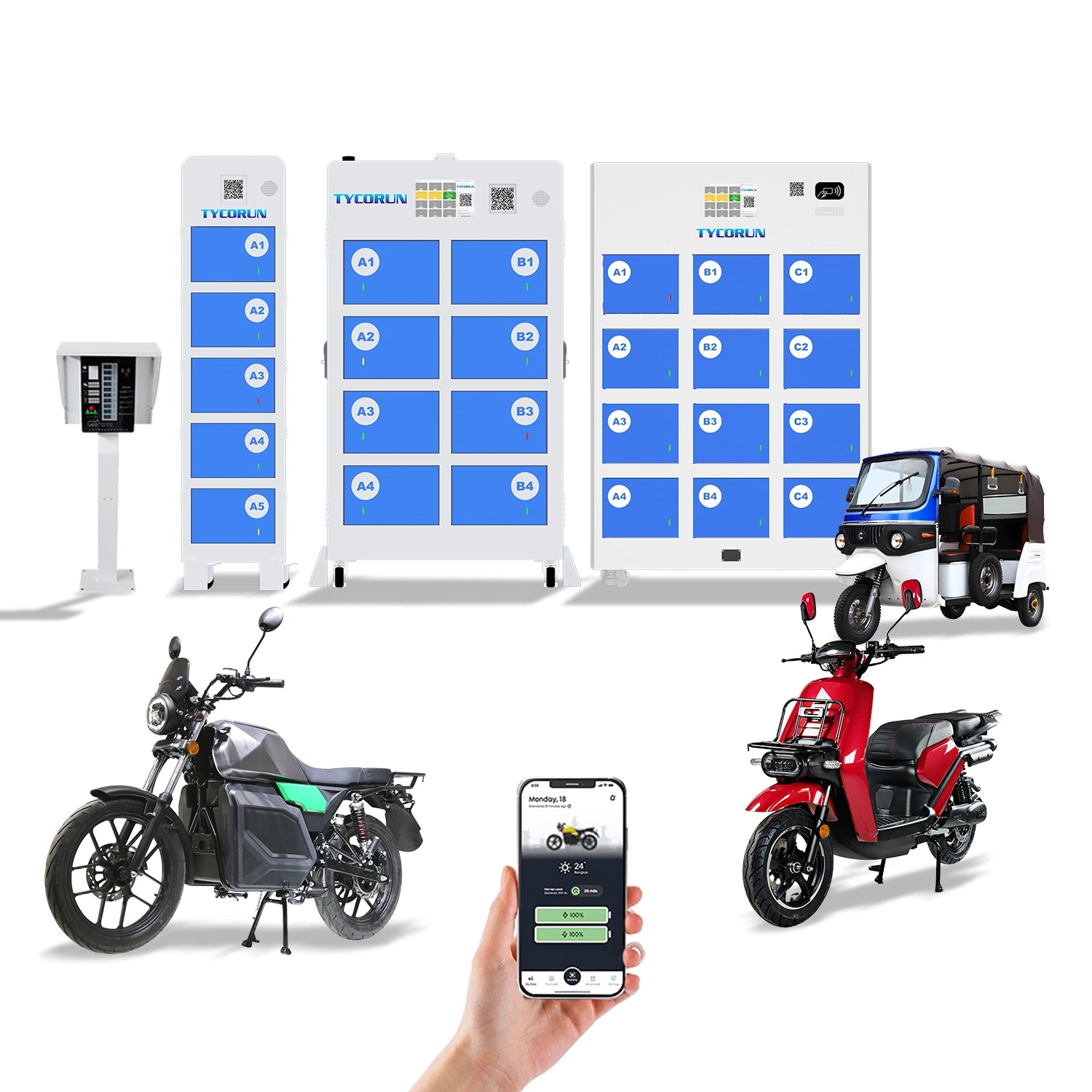

TYCORUN's self-developed intelligent cabinet control system has significant core technology advantages. It has been widely deployed in China and has been put into operation in many countries. It has been verified by the market and has reliable quality. TYCORUN 5-slot battery swap system solution suitable for industries such as takeout and logistics. The intelligent cabinet control system can seamlessly connect TYCORUN's APP, batteries and electric motorcycles to form a complete intelligent battery swap ecosystem.

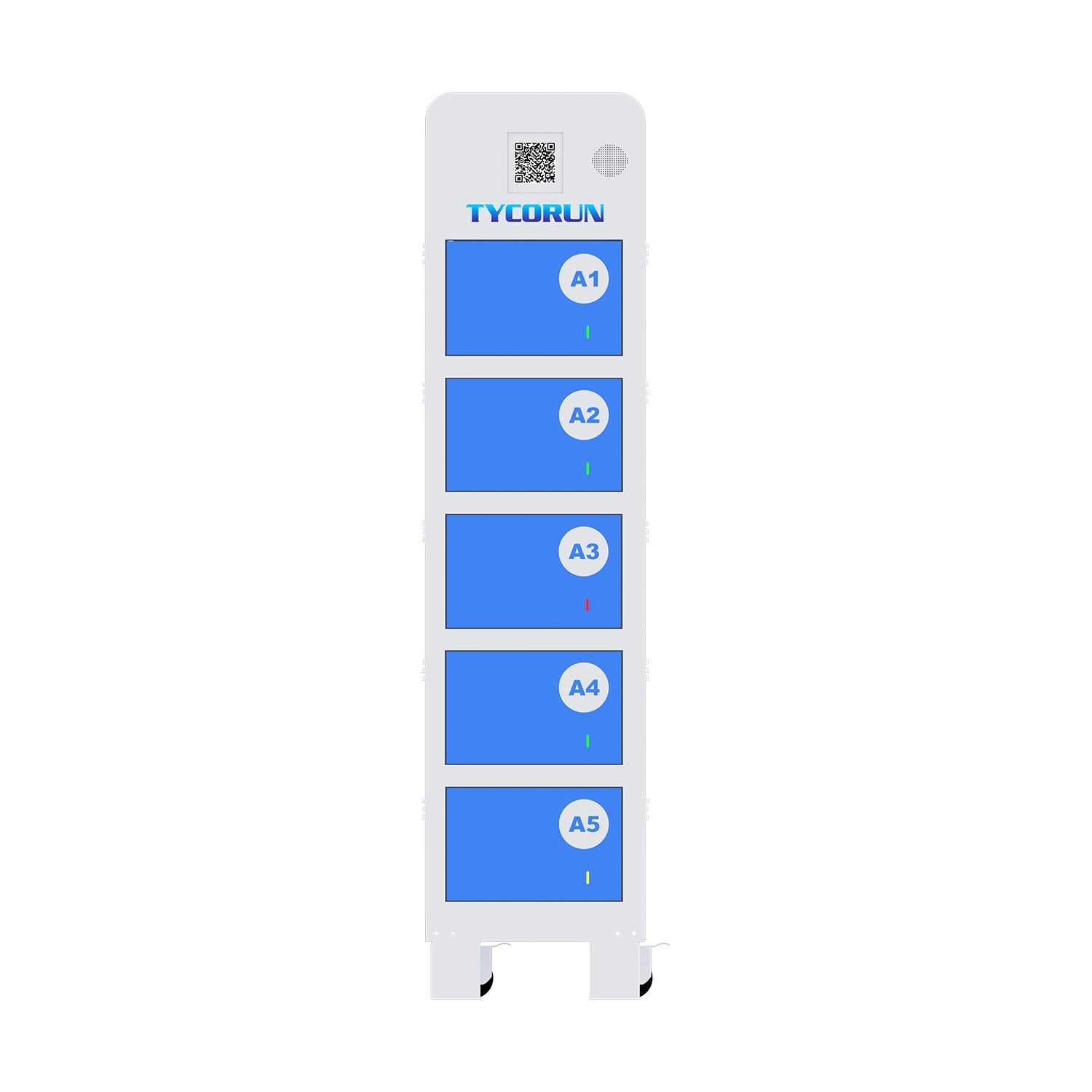

The size of 5-slot battery swap cabinet is 400×515×1650mm and weighs only 80kg, which is easy to transport and flexibly install. All 5 slots can support multiple voltages of 72V/60V/48V, with a total power of 4000W and a maximum output of 800W per slot. The system supports dynamic power allocation and intelligent charging to maximize battery performance, while supporting parallel operation of multiple cabinets to improve operational efficiency.

The 5-slot battery swap cabinet has functions such as optional soft/hard links, scan code/NFC battery swap and offline battery swap, which can flexibly adapt to different usage needs. It supports appearance and color customization, can print customer logos, and various configuration parameters can also be flexibly customized according to project requirements.

With TYCORUN's special lithium battery, the system supports multiple battery swapping modes such as scanning, appointment, and offline, which can adapt to different usage scenarios. In addition, the system supports a variety of optional accessories, such as air conditioning, cameras, reverse power supply modules, canopies, NFC, etc., and has multiple safety protection functions, including smoke alarms, high temperature warnings, flood warnings, aerosol fire extinguishers, air cooling systems, etc., and can expand advanced protection configurations such as water-based fire protection and sound and light warnings. The battery exchange cabinet is equipped with CAN communication and IP54 protection, with waterproof, dustproof, and lightning protection functions, and remote monitoring and online management are achieved through 4G/WiFi/GPS.

The equipment undergoes standardized testing procedures before leaving the factory, such as rain test, to ensure operational stability. The screen size is optional, not only can it play promotional videos, but it also supports guiding voice playback, and the language content can be customized.
