TYCORUN 36V 50AH LIFEPO4 DEEP CYCLE BATTERY SET FOR SALE

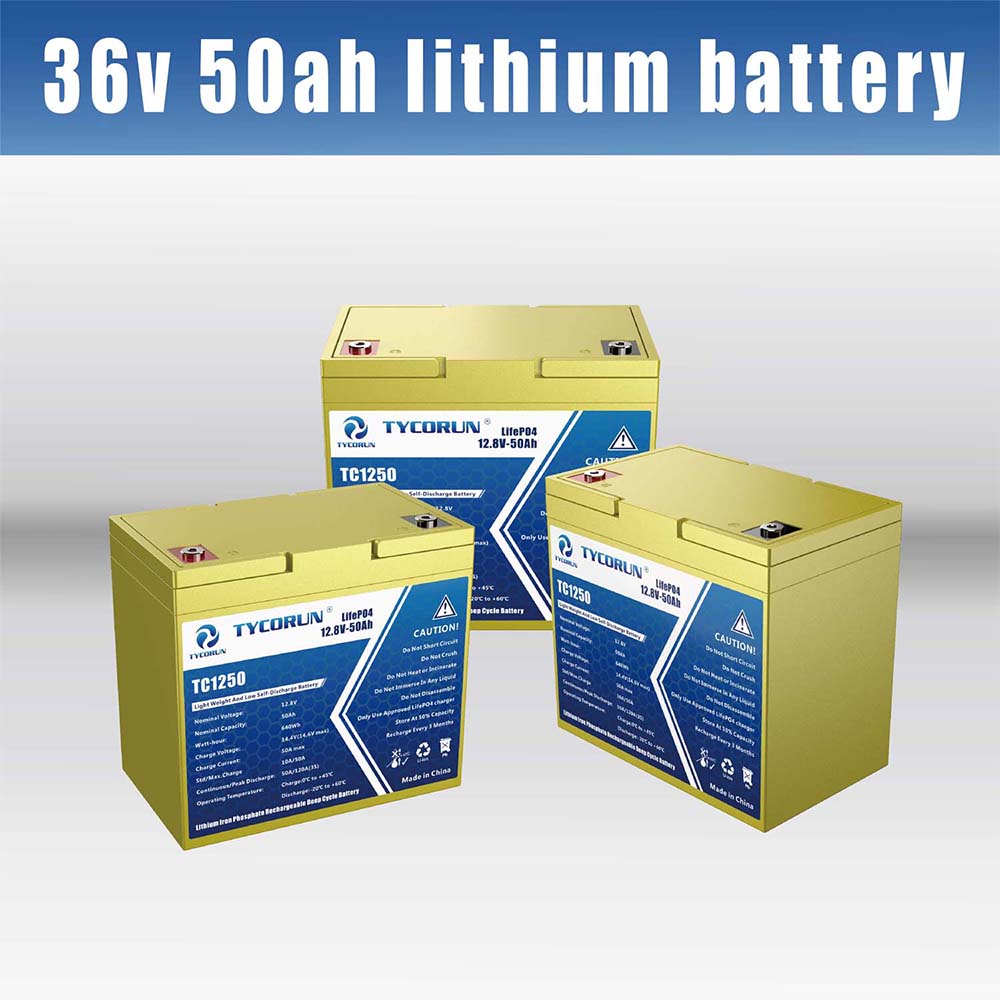

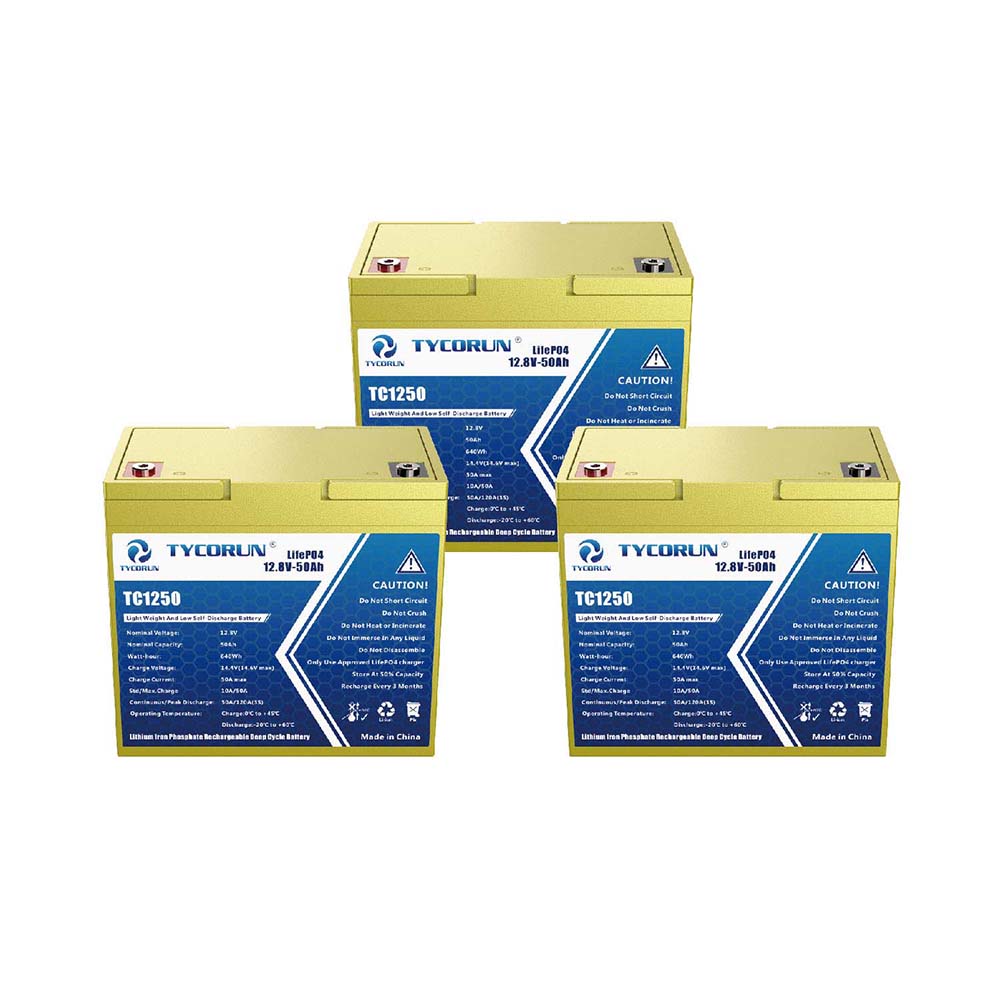

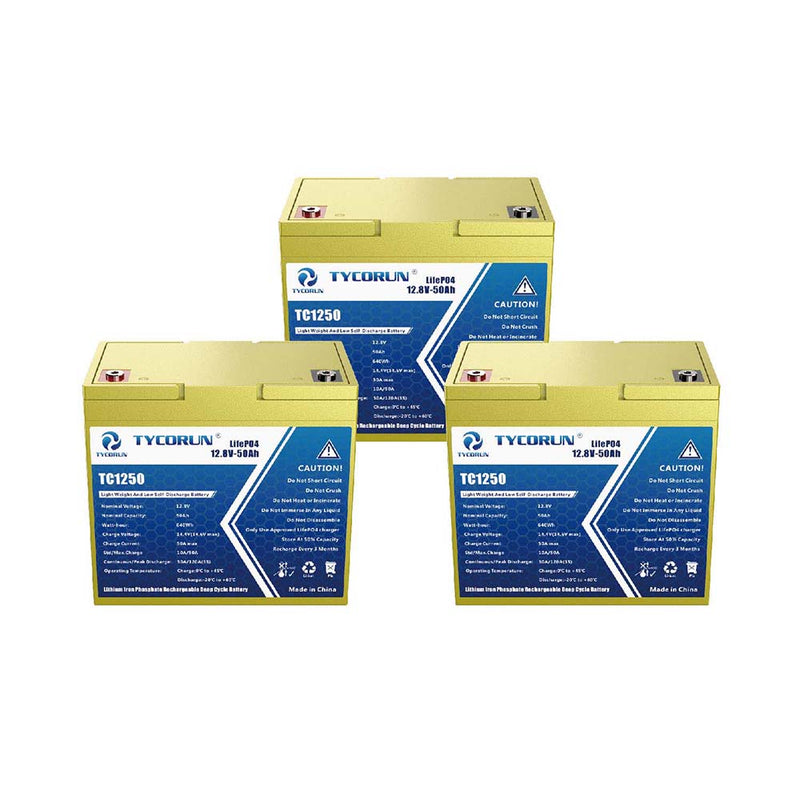

Tycorun 36V 50AH environmental protection lithium iron phosphate battery pack is composed of three 12V 50AH batteries connected in series. The following is the specification of a single Tycorun 12V 50AH environmental protection lithium iron phosphate battery.

Name	Single Tycorun 12V 50AH environmental protection lithium iron phosphate battery specifications
Nominal Voltage	12.8V
Nominal Capacity:	50Ah@0.2C
Energy	640Wh
Internal Resistance	≤60mΩ
Cycle Life	>4000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.
Months Self Discharge	≤3.5% per month at 25 ℃
Charge Voltage	14.6±0.2V
Charge Mode （ CC/CV ）	At 0 ℃ ~45 ℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A.
Charge Current	10A
Max Charge Current	50A
Discharge Current	50A
Max Continuous Current	75A
Max Pulse Current	150A(<3S ）
Disxcharge Cut-off Voltage	10.8V
Charge Temperature	0 ℃ to 45 ℃ (32 ℉ to 113 ℉ ) @60±25% Relative Humidity
Disxcharge Temperature	-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉ ) @60±25% Relative Humidity
Storage Temperature	0 ℃ to 45 ℃ (32 ℉ to 113 ℉ ) @60±25% Relative Humidity
Water Dust Resistance	IP65
Plastic Case	ABS
Dimension(LWH)	229138208mm
Weight	Approx. 6.0Kg
Terminal	M6

Long Cycle Life

High Safety

High Energy Density

Stable Discharge

Low Maintenance Cost

Environmentally Friendly

OEM & CUSTOMIZATION

Product specifications, interfaces and system configurations can be customized for different applications.

TECHNICAL SUPPORT

Get support with product selection, system integration, setup and after-sales service.

GLOBAL DELIVERY SUPPORT

Shipping and project delivery are arranged according to product type, order size and destination.

QUALITY & AFTER-SALES

Warranty, technical guidance and after-sales support are provided according to the product and project scope.
