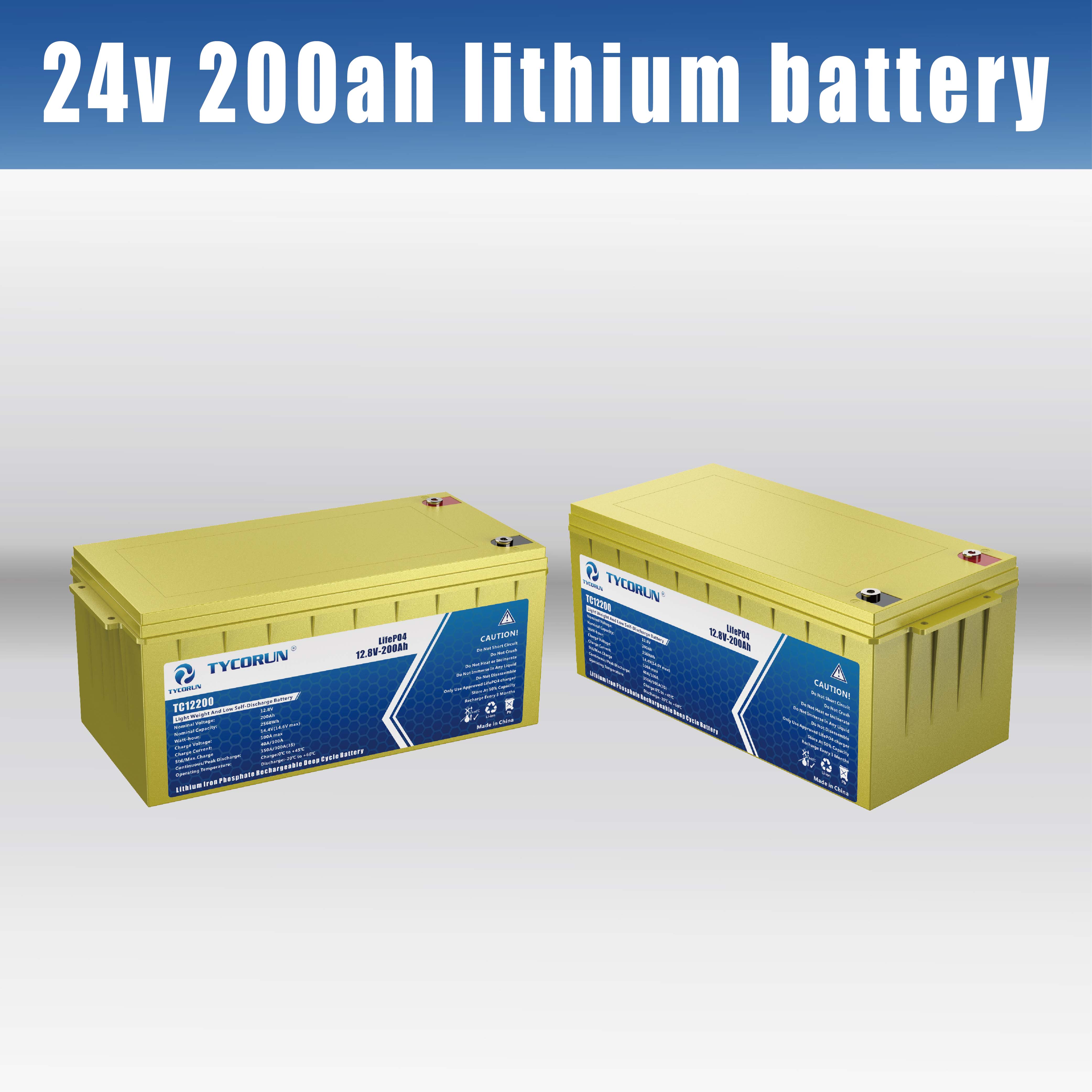

TYCORUN 24V 200AH LIFEPO4 DEEP CYCLE BATTERY SET FOR SALE

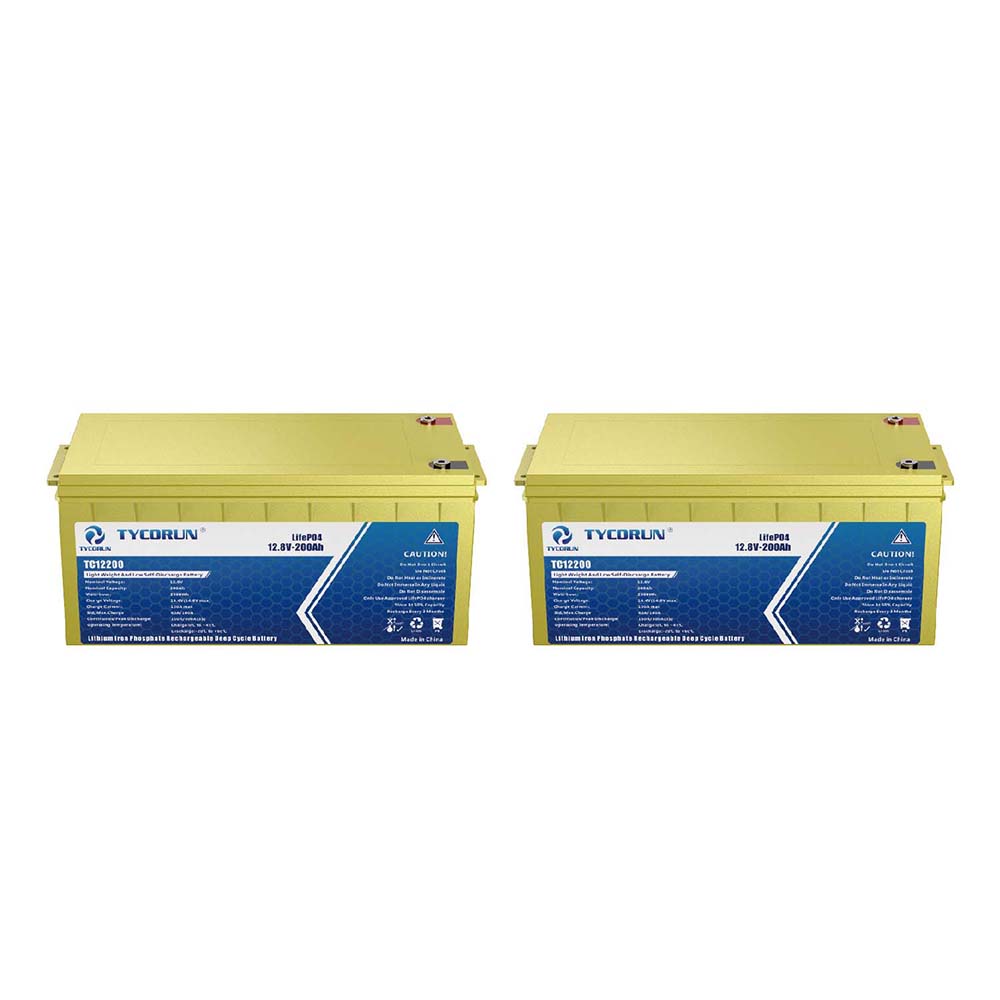

Tycorun 24V 200AH environmental protection lithium iron phosphate battery pack is composed of two 12V 200AH batteries connected in series. The following is the specification of a single Tycorun 12V 200AH environmental protection lithium iron phosphate battery.

Name	Single Tycorun 12V 200AH environmental protection lithium iron phosphate battery specifications
Nominal Voltage	12.8V
Nominal Capacity:	200Ah@0.2C
Energy	2560Wh
Internal Resistance	≤30mΩ
Cycle Life	>4000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.
Months Self Discharge	≤3.5% per month at 25 ℃
Charge Voltage	14.6±0.2V
Charge Mode （ CC/CV ）	At 0 ℃ ~45 ℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A.
Charge Current	20A
Max Charge Current	100A
Discharge Current	100A
Max Continuous Current	150A
Max Pulse Current	300A(<3S ）
Disxcharge Cut-off Voltage	10.8V
Charge Temperature	0 ℃ to 45 ℃ (32 ℉ to 113 ℉ ) @60±25% Relative Humidity
Disxcharge Temperature	-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉ ) @60±25% Relative Humidity
Storage Temperature	0 ℃ to 45 ℃ (32 ℉ to 113 ℉ ) @60±25% Relative Humidity
Water Dust Resistance	IP65
Plastic Case	ABS
Dimension(LWH)	522240218mm
Weight	Approx. 25Kg
Terminal	M8

Long Cycle Life

High Safety

High Energy Density

Stable Discharge

Low Maintenance Cost

Environmentally Friendly

OEM & CUSTOMIZATION

Product specifications, interfaces and system configurations can be customized for different applications.

TECHNICAL SUPPORT

Get support with product selection, system integration, setup and after-sales service.

GLOBAL DELIVERY SUPPORT

Shipping and project delivery are arranged according to product type, order size and destination.

QUALITY & AFTER-SALES

Warranty, technical guidance and after-sales support are provided according to the product and project scope.
