What Is a Battery Shunt? Unlock Precise Energy Monitoring and Save Your Battery Life

In off-grid systems such as caravans, four-wheel drive vehicles, RVs, boats, and energy storage setups, one of the most common challenges is the inability to accurately see the real status of the battery. Relying solely on voltage measurements often leads to significant errors, leaving users guessing about energy usage. This is where the battery shunt becomes indispensable. By providing precise, system-level current data, a shunt transforms “guesswork” into data-driven decision making.

This article will systematically explain what a battery shunt is, how it works, why it is more reliable than voltage-only monitoring, how to select and install it correctly, and the real relationship between shunts, battery monitors, and BMS.

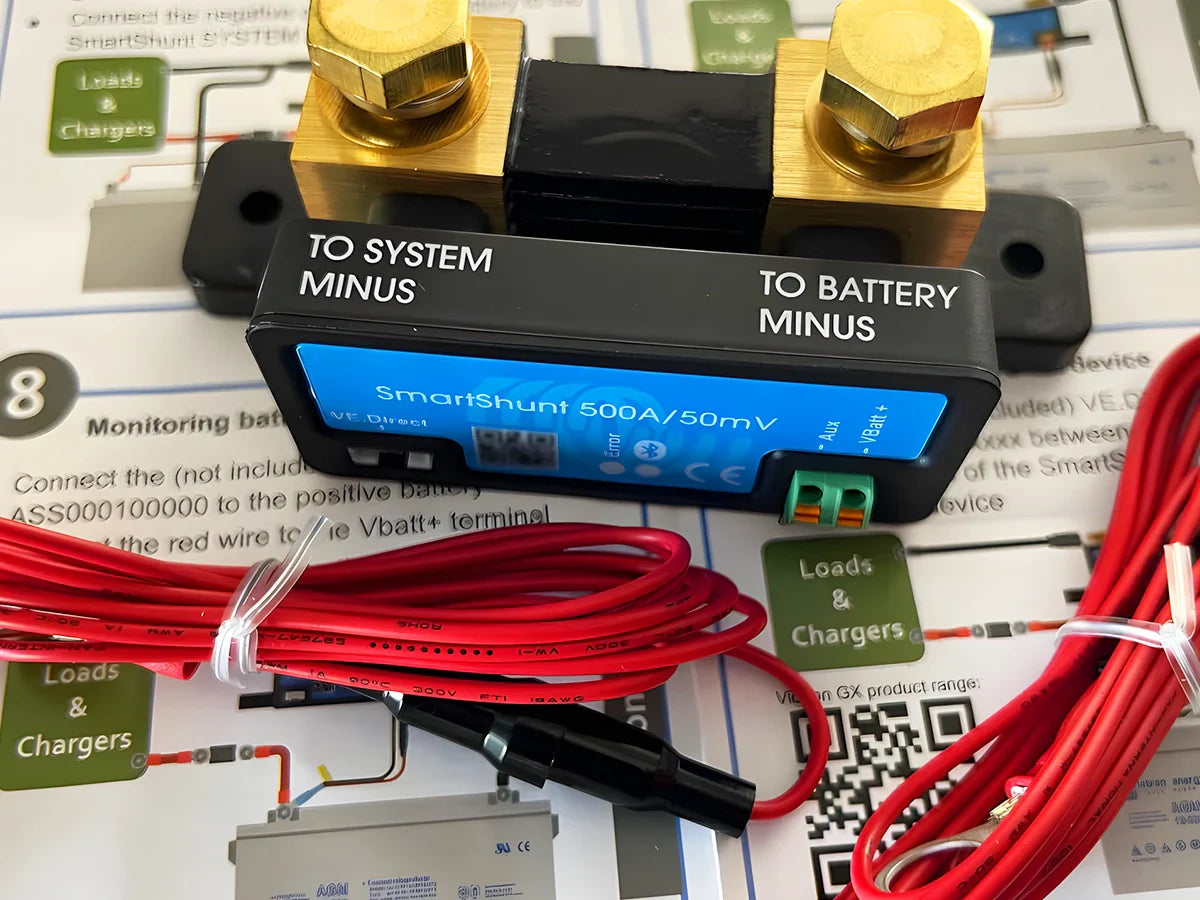

What Is a Battery Shunt

A battery shunt is a high-precision, ultra-low-resistance current sensing resistor. Its core function is current sensing: by using a resistor with an extremely small and stable resistance value, it converts the current flowing through the battery circuit into a measurable millivolt-level voltage signal. Because the resistance is typically in the micro-ohm range, a shunt causes almost no noticeable impact on system efficiency or voltage during normal operation, while still providing a highly reliable foundation for accurate current data.

In practical applications, a battery shunt is usually installed on the negative side of the battery circuit. This installation method ensures that all charging current and discharging current entering or leaving the battery must pass through the shunt, enabling complete and unified current monitoring. Negative-side installation also aligns better with most electrical safety and wiring standards, making system integration and long-term maintenance easier.

On its own, a battery shunt does not have any display or computational capability. It does not directly show current or voltage, nor does it calculate energy usage or State of Charge. The role of the shunt is very focused: it faithfully reflects changes in current, converting real electrical current into a stable voltage signal for further analysis and calculation by a battery monitor, energy monitor, or smart monitoring module.

The core characteristic of a battery shunt is its extremely low resistance, typically at the micro-ohm level. Such low resistance ensures that even when large currents pass through, the power loss and heat generation of the shunt remain minimal, preventing it from becoming an additional burden on the system. This is particularly important for off-grid systems, solar systems, RV applications, marine batteries, and energy storage systems, where continuous or high transient currents are common.

Common calibration standards include 50 mV corresponding to 100 A, 200 A, or even higher currents. This standardized voltage output allows a battery monitor to accurately calculate real-time current through simple and stable voltage measurement, and also makes system integration easier across different brands and models of monitoring equipment.

A battery shunt must carry the full charging and discharging current of the system. Only when all load current and charging current pass through the shunt can battery monitoring remain accurate over the long term. If any part of the system bypasses the shunt, even with very small currents, cumulative errors will develop over time, leading to noticeable deviations in amp-hour tracking and SoC calculation.

Common Misunderstandings About Battery Shunts

Many people mistakenly believe that a shunt itself is a battery monitor, but the two are not the same. A shunt is merely a hardware component responsible for current sensing, while the battery monitor is the core module that handles data processing, display, and energy analysis. Without a shunt, a battery monitor cannot achieve high-precision measurement; but with only a shunt, no intuitive information can be presented to the user.

Another common misconception is treating a shunt as a fuse. Although a shunt may look similar to certain high-current fuses in appearance, their functions are completely different. A fuse is designed to melt and disconnect the circuit during overcurrent conditions to protect the system, whereas a shunt is designed to continuously and stably carry its rated current while providing precise measurement, not to interrupt the circuit.

Some also believe that a shunt can replace a BMS. In reality, a Battery Management System primarily focuses on cell-level voltage, temperature, and safety protection, while a battery shunt focuses on system-level current flow and energy usage. Their roles are different, and in lithium battery and energy storage systems they usually complement each other rather than replace one another.

What Does a Battery Shunt Do

Basic Principle: Applying Ohm’s Law in Real Systems

The operation of a battery shunt is based on a very classic and reliable physical law: Ohm’s law. In real battery systems, the core relationship can be summarized as Voltage equals Current multiplied by Resistance. When current flows through a shunt with a known and extremely stable resistance, a millivolt-level voltage difference appears across its terminals. This voltage is very small and does not significantly affect system operation, yet it can be accurately read by monitoring modules.

During operation, the millivolt-level voltage drop generated across the shunt by the flowing current is continuously collected by a battery monitor or monitoring circuit. Because the shunt’s resistance is fixed and precisely calibrated, the system only needs to read this tiny voltage signal to calculate the actual current flowing through the circuit. This measurement method does not depend on the type of load and is not significantly affected by rapid power fluctuations, making it well suited for continuous current measurement.

From Millivolt Signals to Battery Status

A single millivolt signal is not intuitive by itself, but within a battery monitoring system, these signals are further processed and accumulated to produce battery status information that is meaningful to users. By continuously reading voltage changes across the shunt, the system can calculate real-time current and determine whether current is flowing into or out of the battery, thereby distinguishing between charging and discharging states.

Over time, the battery monitor integrates the current to calculate cumulative energy usage, commonly expressed as amp-hours. Based on initial capacity settings and historical data, the system can further estimate the remaining battery capacity and calculate the State of Charge. Combined with the current load level and discharge rate, it can also estimate remaining runtime, helping users more intuitively understand how long the battery can continue to support system operation.

Why Shunts Are More Accurate Than Voltage Monitoring

Relying solely on voltage to determine battery status often leads to significant errors. Battery voltage is heavily influenced by load changes, ambient temperature, and battery chemistry. For example, when a high-power load starts, voltage may drop momentarily; once the load is removed, voltage can quickly rebound. These changes do not truly reflect the remaining energy inside the battery.

For lithium batteries, this issue is even more pronounced. Lithium batteries have a very flat voltage curve over most of their discharge cycle, meaning that even after a large portion of capacity has been consumed, the voltage may still appear “normal.” This is why voltage monitoring alone makes it difficult to accurately determine the true remaining capacity of lithium batteries. In contrast, a shunt directly measures energy flow and current flow, recording the actual movement of electrical energy into and out of the battery rather than its external voltage behavior. As a result, shunt-based measurement offers a clear advantage for long-term monitoring and capacity calculation.

Do You Need a Battery Shunt?

A battery shunt is not mandatory in every system, but it becomes essential in specific scenarios where accurate energy monitoring and management are required. You need a battery shunt when you want to see the real-time flow of current in your system, calculate the State of Charge (SoC) accurately, or track cumulative energy usage in off-grid systems such as caravans, 4WD vehicles, RVs, boats, and energy storage setups.

Even if your lithium battery is equipped with a BMS, a shunt provides system-level current data that most BMS units cannot deliver. This includes monitoring all charging and discharging currents, integrating solar inputs, inverter loads, and auxiliary batteries, and supporting automated control or energy management decisions. In short, if you want to transform “guesswork” into data-driven decision making and ensure precise battery monitoring and long-term reliability, a battery shunt is indispensable.

The Practical Role of a Battery Shunt in Off-Grid Systems

Installation Location of a Battery Shunt in the System

In off-grid systems, the installation location of the battery shunt directly determines whether monitoring data is reliable. The standard system structure typically connects the battery negative terminal to the shunt, then from the shunt to the negative busbar, and finally distributes power to various loads and charging devices. This layout ensures that all current entering or leaving the battery must pass through the shunt, preventing monitoring blind spots.

During actual installation, special attention must be paid to avoiding any additional loads or charging sources connected between the battery and the shunt. Once a connection bypasses the shunt, the data collected by the battery monitor becomes incomplete, and subsequent SoC calculations and energy statistics will gradually lose accuracy. Therefore, a correct wiring layout is the prerequisite for the shunt to function properly.

Key Tasks of a Shunt in Off-Grid Systems

In off-grid applications, a battery shunt undertakes several critical tasks. By continuously and accurately monitoring battery SoC, the system can clearly determine whether the battery is operating within a safe range or approaching a critical state. Based on this data, the control system can decide whether to start a generator, increase solar charging, or adjust charging strategies.

At the same time, the data provided by the shunt helps the system avoid over-discharge and overcharge, which is especially important for extending battery life. Furthermore, when shunt data is integrated with an inverter, charger, or energy management system, it can provide decision-making support for automated system operation, enabling energy management without manual intervention.

Application Scenarios for Multi-Shunt Systems

In some more complex off-grid systems, more than one shunt is often used. The main battery shunt usually has the highest priority and is used to monitor the overall energy status of the battery bank. In addition, a shunt can be installed on the solar input side to independently analyze the power generation efficiency of the solar system.

For high-power applications, the inverter load side may also be equipped with a dedicated shunt to more clearly understand the inverter’s actual current demand on the system. In multi-battery or tiered power supply systems, auxiliary batteries or secondary systems can likewise be monitored through independent shunts, enabling more refined energy monitoring and system optimization.

The Relationship Between Smart Shunts and Battery Monitors

Differences Between Shunt, Smart Shunt, and Battery Monitor

In battery monitoring systems, shunts, smart shunts, and battery monitors are often mentioned together, but they play different roles within the system, forming three clearly defined components at different levels.

A battery shunt is essentially a pure hardware current sensing device. Its sole function is to convert the current flowing through the battery into a stable, measurable millivolt-level voltage signal. It does not have data processing capabilities and does not present any information to the user, making it the most fundamental, lowest-level measurement component in the entire battery monitoring system.

Building on this, a smart shunt integrates data acquisition and communication capabilities into the traditional shunt structure. A smart shunt typically includes built-in current sensing circuitry and basic data processing modules, allowing it to directly transmit measured current and voltage data via Bluetooth or other communication interfaces. This design reduces reliance on separate display units, enabling users to view basic battery data directly on a smartphone or tablet. As a result, installation and operation are simpler, making smart shunts particularly suitable for space-constrained off-grid systems.

In contrast, the battery monitor is the core component responsible for “understanding the data.” It not only displays measurement results from the shunt or smart shunt, but also calculates, records, and analyzes this data to derive State of Charge, remaining capacity, power consumption trends, and historical records. At the same time, the battery monitor provides alarm functions and logical control, supplying decision-making support for automated system operation.

Why Smart Shunts Are Becoming Increasingly Popular

Smart shunts have become increasingly common in recent years primarily because they significantly reduce the need for external display units. In RV systems, marine applications, or compact solar systems, eliminating a display module means less wiring, lower installation complexity, and a cleaner overall system layout.

In addition, smart shunts allow users to view battery status directly on a smartphone or tablet, enabling access to battery information anytime and anywhere without being limited to a fixed display location. This Bluetooth- or communication-based access method makes battery monitoring more intuitive and user-friendly.

From a system integration perspective, smart shunts are also easier to incorporate into the broader energy ecosystem. They can serve as standardized data nodes, interacting with inverters, chargers, or energy management systems, and providing convenience for future system expansion and automated control.

The Real Relationship Between Battery Shunts and Lithium Battery BMS

What a BMS Can and Cannot Do

In lithium battery systems, the core responsibility of a BMS is to ensure battery safety. Its primary focus is on cell-level protection, including monitoring individual cell voltage, temperature, and current, and triggering protective actions under abnormal conditions such as overvoltage, undervoltage, or overcurrent. For this reason, a BMS functions more like an internal “safety gatekeeper” for the battery rather than a system-wide energy management tool.

It is important to note that a BMS is not designed for system-level energy management. It typically does not consider the external load structure of the system, nor does it analyze overall power consumption trends or available runtime, as these functions fall outside the original design scope of a BMS.

Why a Battery Shunt Is Still Needed Even With a BMS

Even when a lithium battery is equipped with a BMS, a battery shunt still provides irreplaceable value. Many BMS units do not offer fully open data interfaces, making it difficult for users to conveniently access real-time current or historical energy data. Even BMS systems with Bluetooth functionality are often limited by communication range, allowing data access only when close to the battery.

Moreover, most BMS units do not support system-level functions such as hierarchical control of different loads, automatic triggering of device actions based on SoC, or sending alarm signals to external systems. These capabilities are essential for the stable operation of off-grid systems.

The value of a battery shunt lies in its ability to provide unified, continuous, system-level current data. Regardless of how the internal battery structure changes, as long as all current passes through the shunt, the system can obtain true and complete energy flow information. On this basis, the shunt also supports integrated control with external devices, elevating battery monitoring from simply “viewing status” to becoming a key component that actively participates in system decision-making.

How to Properly Select a Battery Shunt

Current Rating Selection

When choosing a battery shunt, the current rating is one of the most fundamental and critical parameters. The shunt’s rated current must cover the maximum instantaneous current that may occur in the system, especially during inverter startup or when high-power loads are connected. These instantaneous currents often exceed normal operating currents. Common specifications include 100A, 200A, 500A, and 1000A. Systems of different scales should select an appropriate rating based on actual load conditions.

Voltage System Compatibility

In addition to current rating, a battery shunt must match the system voltage. Whether the system operates at 12V, 24V, or 48V, the shunt primarily measures current, but the associated monitoring circuit and battery monitor must correctly recognize the system voltage range to ensure accurate data calculation and display.

Accuracy and Stability

Over long-term use, the accuracy and stability of the shunt are equally important. High-quality battery shunts maintain good consistency in mV calibration, ensuring stable and reliable measurements across different current ranges. Long-term temperature drift performance should also be considered. If the shunt’s accuracy significantly declines under varying temperatures, it will ultimately affect amp-hour accumulation and SoC calculation accuracy.

Safety and Installation Support

Safety is a critical factor during selection and installation. Properly configured fuses can protect the shunt and the entire circuit under abnormal conditions, preventing damage from overcurrent. At the same time, the shunt must operate within its rated range. Long-term overload can cause abnormal heating, affecting both system safety and measurement stability.

Common Installation Errors and Risks

In practice, many monitoring errors do not originate from the shunt itself but from incorrect installation. One of the most common issues is a bypass connection on the battery negative, which allows part of the current to bypass the shunt, resulting in distorted measurement data. Another issue is installing the shunt too far from the battery, introducing additional wiring interference that affects voltage sampling accuracy.

Additionally, selecting a shunt with too low a rating is a common risk. If a shunt is subjected to current exceeding its rated value for extended periods, not only will measurement results be inaccurate, but it may also pose a safety hazard. Finally, if the battery monitor parameters are not correctly configured, SoC and energy data can still be inaccurate even if the shunt is installed correctly. Therefore, proper rating selection, standardized installation, and correct parameter configuration are all essential.

Conclusion

Take control of your battery’s health by understanding what a battery shunt does. Stop guessing and start monitoring accurately—install or check your shunt today. Explore our website for expert tips, detailed guides, and professional solutions to maximize battery life and optimize your off-grid energy system.

FAQs

What is the difference between a shunt and a battery monitor?

A shunt measures current only, converting it into a millivolt signal. A battery monitor processes this data, calculates State of Charge, energy usage, and trends, and displays results. Shunts provide raw measurement; monitors interpret and visualize it for decision-making.

What does a shunt do in a 12V system?

In a 12V system, a shunt measures all charging and discharging currents flowing through the battery negative line. It converts the current into a precise voltage signal, enabling accurate calculation of real-time amp-hours and State of Charge for system monitoring.

What size battery shunt do I need?

Choose a shunt rated above your system’s maximum instantaneous current. For example, 100A shunts suit small 12V RV setups, 200–500A for medium off-grid systems, and 1000A+ for large solar or energy storage applications to avoid overload and maintain accuracy.

Can you run two battery shunts?

Yes, multiple shunts can monitor separate circuits or sources. A main shunt tracks overall battery flow, while additional shunts can measure solar input, inverter demand, or auxiliary batteries. This allows granular energy management and system optimization without affecting accuracy.

What happens when a shunt stops working?

If a shunt fails, current measurement stops, amp-hour tracking becomes inaccurate, and State of Charge estimates drift. The system loses precise energy flow data, which may lead to over-discharge or overcharge, affecting battery health and system reliability.

Can I revive a completely dead battery?

A completely dead battery may be partially recoverable depending on chemistry and internal damage. Recovery requires controlled charging and monitoring, but deep discharge or internal shorts can prevent full restoration. Always assess capacity after attempted revival for safety.

What is the lifespan of a shunt?

A high-quality shunt can last decades if operated within its rated current and environmental conditions. Factors such as prolonged overload, extreme temperature, or poor wiring can shorten lifespan, but under normal off-grid system use, shunts remain highly durable and stable.

What are the signs of a bad shunt?

Signs include inconsistent or zero current readings, inaccurate amp-hour accumulation, unexplained battery State of Charge drift, or overheating. Often caused by wiring bypass, corrosion, or exceeding current rating, a malfunctioning shunt undermines monitoring accuracy and system energy management.
