In a motorcycle electrical system, the starter relay functions as a controlled high-current switch. The relay separates low-current control signals from high-current power delivery, improving electrical efficiency and protecting wiring from overload.
Understanding how a motorcycle starter relay operates, its structure, and its common failure symptoms helps riders diagnose starting problems more accurately and maintain the motorcycle electrical system more effectively.
Key Takeaways
- A motorcycle starter relay is an electromechanical switch that controls high-current battery power to the starter motor using a low-current signal from the start button.
- Starter relay failure may cause rapid clicking, silence when starting, or intermittent engine cranking due to worn contacts or unstable electrical connections.
- A multimeter can be used to test the starter motor relay by measuring coil resistance, contact continuity, and control voltage.
- Regular inspection of the starter relay for motorcycle starting systems reduces resistance buildup and improves starting reliability.
- Replacing a faulty bike starter relay restores stable power transmission from the battery to the starter motor.
Main content:
- Key Takeaways
- What Is a Motorcycle Starter Relay?
- Motorcycle Starter Relay Working Principle
- Structural Components of a Motorcycle Starter Relay
- Where Is the Starter Relay Located on a Motorcycle?
- What Types of Starter Relays Are Used in Motorcycles?
- Role of the Starter Relay in the Motorcycle Electrical System
- Common Starter Relay Problems in Motorcycles (Troubleshooting)
- Real-World Starter Relay Issues Riders Often Experience
- How to Test the Starter Relay?
- Difference Between Starter Relay vs. Starter Solenoid
- Motorcycle Starter Relay Maintenance Checklist for Durable Performance
- When Replacement Motorcycle Starter Relay Is Necessary?
- Conclusion
- FAQs
- Can I repair a motorcycle starter relay?
- What causes a motorcycle starter relay to fail?
- Is a starter relay the same as a starter solenoid?
- What is the usual lifespan of a motorcycle starter relay?
- How can I tell if my motorcycle starter relay is functioning properly?
- Is it safe to bypass a motorcycle starter relay?

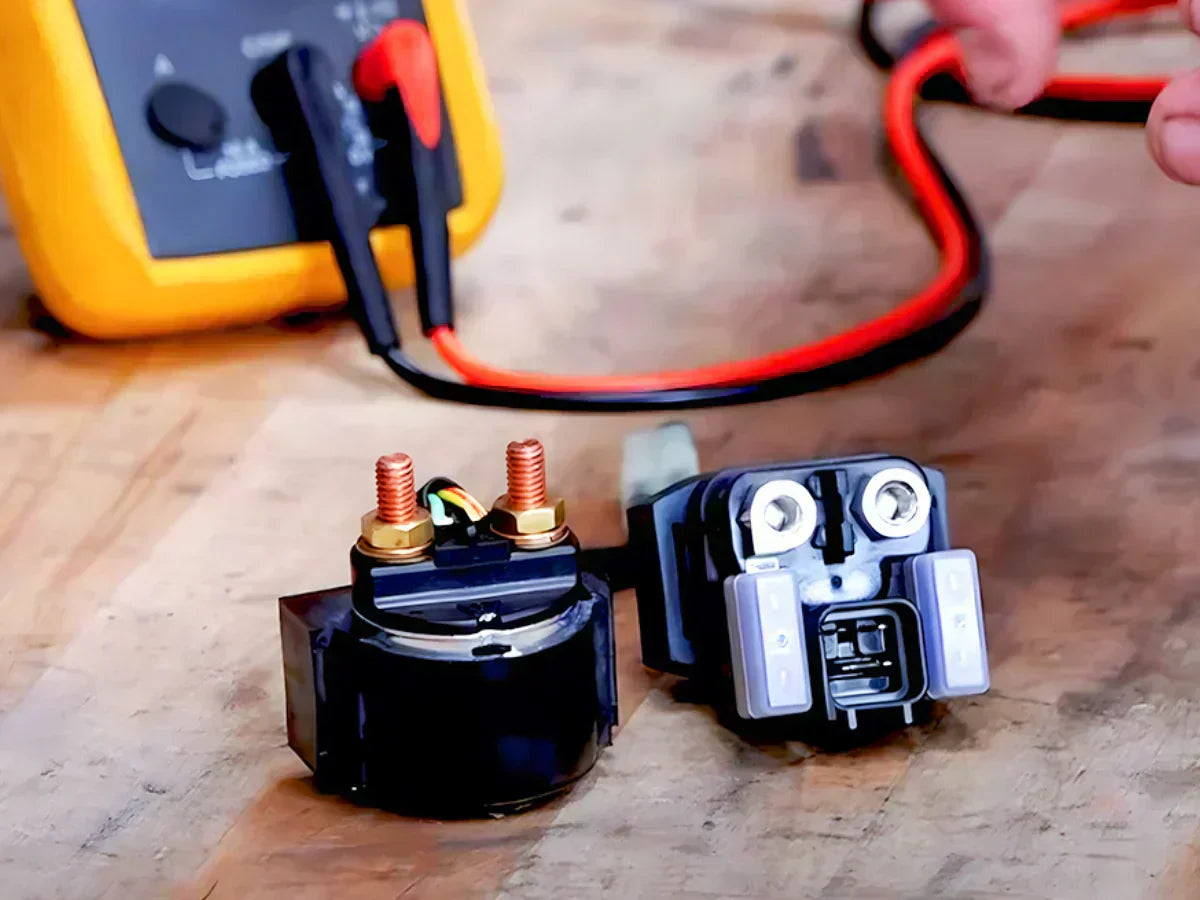

What Is a Motorcycle Starter Relay?
A motorcycle starter relay is an electromechanical device that controls the flow of high current from the battery to the starter motor using a low-current signal from the start button. The functions as an automatic power switch that connects the battery to the starter motor only during engine starting.
When the rider presses the start button, a small control current activates the relay coil. The energized coil generates a magnetic field that pulls the internal armature and closes the high-current contacts. Battery current then flows to the starter motor, causing the engine to crank. After the engine starts, the circuit opens and stops the high-current flow.
The motorcycle starter relay protects the electrical system by isolating control circuits from heavy current load.
Motorcycle Starter Relay Working Principle
The working principle of a motorbike starter relay relies on electromagnetic induction.
- The start button sends low-voltage current to the relay coil.
- The coil generates a magnetic field around the iron core.
- Magnetic force pulls the armature toward the coil.
- The movable contact closes against the fixed contact.
- High battery current flows to the starter motor.
When the control current stops, the return spring pushes the armature back to its original open position. This mechanism enables the starting relay to function as an automatic switch within the electric motorcycle electrical system, regulating the flow of current between the battery and the starter motor.
Structural Components of a Motorcycle Starter Relay
The internal structure of a typical starter relay motorcycle component includes:
- Coil Windings
Copper wire wrapped around an iron core that generates a magnetic field when energized. - Iron Core (Armature or Plunger)
A movable metal component pulled by magnetic force to close the contacts. - Fixed and Movable Contacts
High-conductivity terminals that complete the high-current circuit. - Return Spring
Restores the armature to the open position after deactivation. - Protective Housing
An insulated plastic or metal casing that protects internal components from moisture and heat.
Each component performs a defined mechanical or electrical function within the relay assembly.
Where Is the Starter Relay Located on a Motorcycle?
The location of the starter relay depends on the motorcycle manufacturer and electrical design.
Most motorcycles install the relay near the battery to reduce current loss. Typical locations include:
- Under the seat
- Inside a side panel
- Mounted on a frame bracket near the battery
Some compact motorcycles integrate the starter motor relay closer to the starter motor assembly.
What Types of Starter Relays Are Used in Motorcycles?
Motorcycle starter relay physical design varies according to space and load requirements:
- Plunger-Type Solenoid (Cylindrical Design): Common construction with a cylindrical housing and internal plunger.
- Rectangular Compact Relay: Smaller design used in modern motorcycles and scooters with limited space.
- Integrated Solenoid: Mounted directly on the starter motor assembly.
- Heavy-Duty Open-Core Solenoid: Reinforced construction used in high-load or custom applications.
Role of the Starter Relay in the Motorcycle Electrical System
The starter relay acts as a gatekeeper in the electrical system. The relay determines when power is allowed to flow and when it must stop. This control stabilizes voltage distribution and protects connected components.
Starter relay performance directly influences:
- Starting reliability
- Battery load balance
- Starter motor lifespan
- Wiring safety
A faulty relay interrupts this balance and causes starting failure even when other components remain functional.
Common Starter Relay Problems in Motorcycles (Troubleshooting)
The starter relay failure usually appears as rapid clicking sounds, complete silence when pressing the start button, or intermittent starting problems. These symptoms are commonly caused by worn contacts, pitted terminals, or internal coil failure. Basic diagnosis includes checking for 12V at the signal wire, measuring internal resistance with a multimeter, or carefully bridging the main terminals with a screwdriver to temporarily bypass the relay.
Why Does the Starter Relay Click Rapidly?
A fast and repetitive clicking sound from the relay area when pressing the start button indicates that the relay is attempting to engage but cannot complete the circuit. This condition is often caused by low motorcycle battery voltage or damaged internal contacts.
Sound "Click" but the Engine Does Not Turn Over
A sharp click sound when pressing the start button indicates that the relay coil receives the control signal. The absence of engine cranking confirms that the power contacts fail to close properly.
The primary causes are:
- Worn or oxidized internal contacts block current flow.
- Voltage drop from corroded or loose wiring reduces effective power transmission.
No Response When Pressing the Start Button
Complete silence indicates absence of control voltage or internal coil failure.
Possible causes include:
- Blown fuse interrupting the control circuit
- Faulty side-stand switch, clutch switch, or neutral sensor
- Damaged signal wiring
Why Does the Motorcycle Start Intermittently?
Irregular relay operation leads to intermittent or slow engine cranking. Unstable internal connections reduce electrical continuity inside the relay.
Vibration and temperature increase electrical resistance and worsen starting instability during motorcycle operation.
Relay Overheating or Burning Smell
Relay overheating indicates abnormal electrical resistance at the contacts or excessive current draw from the starter motor.
Excessive resistance generates heat inside the relay housing. Prolonged overheating damages internal components, wiring insulation, and surrounding electrical connections.
Fault Diagnosis Steps:
- Check the power supply: Verify that the motorcycle battery is fully charged and ensure that all battery terminals are tight and free from corrosion.
- Inspect the relay: Remove the relay and use a multimeter to measure its resistance. Compare the reading with the normal specification range.
- Perform a replacement test: Install a spare relay, if available, to determine whether the starting problem is resolved.
- Check the circuit wiring: Examine the wiring between the relay and the starter motor for damaged insulation, loose connections, open circuits, or short circuits.
Real-World Starter Relay Issues Riders Often Experience
In real riding conditions, starter relay problems often appear after several years of use. Motorcycles frequently exposed to rain, dust, or vibration may develop corrosion at the relay terminals or wiring connections. According to the Society of Automotive Engineers, stable voltage and clean electrical contacts are essential for relays to operate reliably in vehicle starting systems.
Some riders also report starting issues in specific models. For example, owners of the Harley-Davidson Street 500 sometimes search for problems related to the Harley Street 500 starter relay when experiencing rapid clicking sounds or intermittent starting, especially if the battery voltage is low or the relay contacts are worn.
These examples highlight why checking the starter relay, battery condition, and wiring connections is important for maintaining a reliable motorcycle starting system.
How to Test the Starter Relay
The Audio (Click) Test
This is the simplest way to check if the relay is receiving a signal from the starter button.
Listen for the Click:
Turn the ignition ON and press the starter button.
- Single Click: The relay is likely engaging, but power may not be reaching the starter motor.
- Rapid Clicking: This usually indicates a weak battery or loose terminals rather than a faulty relay.
- No Click: The relay is either not receiving power (check fuses and the starter button) or the internal coil has failed.
Multimeter Testing (Precision Check)
For a definitive diagnosis, use a multimeter to check the internal components of the relay.
| Test Type | Multimeter Setting | Procedure | Expected Result |
| Coil Resistance | Ohms (Ω) | Measure across the two small control pins (or wires). | Typically 3–5 Ω (some models 50–200 Ω). "OL" indicates a broken coil. |
| Contact Continuity | Continuity / Ω | Connect probes to the two large main terminals. | Open (OL) when OFF; near 0 Ω (below 0.2 Ω) when the starter button is pressed. |
| Voltage Supply | DC Volts (20V range) | Press the starter button and check for voltage at the small control wires. | 12V should be present. If not, the issue is in the wiring or switch. |
The Bypass Method (Emergency Only)
Bridge the two large terminals briefly using an insulated tool. If the engine cranks, the motorcycle starter relay or control circuit is faulty. Large sparks may occur. Ensure no fuel leaks are present.
- Action:
Use a heavy-gauge wire or an insulated screwdriver to briefly bridge the two large terminals on the relay. - Observation:
If the engine cranks immediately, the relay or its control circuit is faulty. - Caution:
Expect large sparks. Ensure there are no fuel leaks nearby before attempting this test.
Summary of Faults
- Faulty Relay: Resistance shows "0L" or remains high (>1 Ω) when energized, or there is no click despite receiving 12V.
- Weak Battery: Rapid clicking sound or significant voltage drop when the starter button is pressed.
- Wiring Issue: No 12V signal reaches the relay when the button is pressed.
Difference Between Starter Relay vs. Starter Solenoid
A starter relay functions primarily as an electrical control switch, while a starter solenoid combines electrical switching with mechanical actuation.
| Feature | Starter Relay | Starter Solenoid |
| Primary Role | Electrical switch for control. | Power switch + mechanical actuator. |
| Mechanical Action | None (only internal contacts move). | Pushes a plunger to engage gears. |
| Current Handling | Low to medium (approx. 10–50A). | Very high (200–600+ Amps). |
| Physical Form | Small plastic cube. | Large cylindrical metal unit. |
| Typical Location | Fuse box or relay panel. | Mounted directly on the starter motor. |
Motorcycle Starter Relay Maintenance Checklist for Durable Performance
Regular inspection improves long-term electrical reliability.
Maintenance reduces resistance buildup and contact degradation. Stable electrical connections improve starting consistency.
When Should a Starter Relay Be Replaced?
Replacement becomes necessary when testing confirms internal failure. Relay repair is impractical due to sealed construction and electrical safety risks.
Replacement indicators include:
- Burnt terminal contacts
- Internal contact sticking
- Repeated starting failure after testing
Using a relay with correct voltage and current rating ensures electrical compatibility and system safety.
Conclusion
A motorcycle starter relay regulates high-current battery power to the starter motor and determines overall starting system functionality. Motorcycle starter relay failure interrupts engine cranking regardless of battery condition. Accurate multimeter testing and timely replacement restore stable electrical transmission and prevent recurring starting issues. Routine inspection of wiring and terminals preserves long-term motorcycle electrical system reliability.
FAQs
Can I repair a motorcycle starter relay?
In most cases, repairing a motorcycle starter relay is not recommended. While some older solenoids can be opened and cleaned, modern starter relays are typically sealed units. Replacing the faulty relay ensures long-term reliability and electrical safety.
What causes a starter relay to fail?
The starter relay failure is commonly caused by natural wear of internal contacts, corrosion on terminals, excessive heat, voltage instability, or prolonged electrical stress within the starting system.
Is a starter relay the same as a starter solenoid?
On motorcycles, the terms starter relay and starter solenoid are often used interchangeably. Technically, the starter relay functions as the electrical switch, while the starter solenoid refers to the electromagnetic component that moves the internal plunger.
What is the typical lifespan of a starter relay?
The typical lifespan of a motorcycle starter relay ranges from 3 to 5 years. Actual service life depends on riding frequency, environmental conditions, electrical system stability, and maintenance practices.
How can I tell if the starter relay on my motorcycle is functioning properly?
A properly functioning motorcycle starter relay produces a clear clicking sound when the start button is pressed and allows the engine to crank normally. No sound, flashing dashboard lights, or failure to crank may indicate relay malfunction or electrical supply issues.
Is it safe to bypass a motorcycle starter relay?
Bypassing a motorcycle starter relay can temporarily confirm whether the starter motor is functional. However, bypassing the relay is not a permanent solution and may generate sparks. Relay bypass should only be used for short-term diagnostic purposes before replacing a faulty unit.
