The number of cells in a 12V battery depends on the battery chemistry. Each chemistry produces a different voltage per cell, which determines how many cells in a 12v battery. This article breaks down the cell count for every major 12V battery type and explains how capacity affects the total number of physical cells inside a pack.
Key Takeaways
- The number of cells in a 12V battery is determined by battery chemistry: lead-acid batteries require 6 cells (~2V each), LiFePO4 batteries require 4 cells (3.2V each), and NiMH batteries require 10 cells (~1.2V each).
- Series-connected cells add voltage; parallel-connected cell groups add capacity without changing system voltage.
- A 12V LiFePO4 battery pack always uses a 4S configuration (4 cells in series), producing a fixed nominal voltage of 12.8V regardless of the pack's amp-hour capacity.
- Total physical cell count in a 12V LiFePO4 pack is determined by cell format: a 12V 100Ah pack built with cylindrical 32700 cells uses 4S17P (68 cells), while the same pack built with 100Ah prismatic cells uses 4S1P (4 cells).
- A single failing cell in a series string causes the entire 12V battery pack to lose adequate voltage, and triggers BMS shutdown in LiFePO4 systems.
Main content:
- Key Takeaways
- How Many Cells Are in a 12V Battery
- What Is a Battery Cell
- Why 12V Batteries Use Multiple Cells
- How Many Cells Are in Different Types of 12V Batteries
- Comparison of Cell Counts in Common 12V Batteries
- How Many Cells in a 12V Battery by Application
- How Battery Capacity Changes Cell Arrangement
- 4S Configuration: How 4 LiFePO4 Cells Produce 12.8V
- How to Identify the Number of Cells in a 12V Battery
- What Happens If One Cell in a 12V Battery Fails
- A Closer Look at 12V LiFePO4 Batteries
- How Do I Know If My 12V Battery Is Lead-Acid or Lithium?
- Conclusion
-
FAQs
- Do 12V Lead-Acid and Lithium-Ion Batteries Have the Same Cells?
- Can a car battery work with fewer cells?
- How many cells are in a 24V truck battery?
- What is the difference between a cell and a battery?
- How many 12 volt batteries does it take to make 48 volts?
- What are the two types of 12-volt batteries?
How Many Cells Are in a 12V Battery
The number of cells inside a 12V battery depends on the battery chemistry:
- Lead-acid battery: 6 cells (~2V per cell)
- LiFePO4 battery: 4 cells (~3.2V per cell) → 12.8V nominal
- NMC / NCA lithium-ion battery: 3–4 cells (~3.6–3.7V per cell)
- NiMH / NiCd battery: 10 cells (~1.2V per cell)
What Is a Battery Cell
A battery cell is a single electrochemical unit that converts stored chemical energy into electrical energy. Each cell produces a specific voltage based on its chemistry. A battery is formed by connecting two or more cells in series, in parallel, or in a combination of both.
The voltage of a battery pack is determined by the series connection of cells, while the capacity (measured in amp-hours) is determined by the parallel connection of cells.
For example:
- A single lead-acid cell produces about 2V
- A single LiFePO4 cell produces about 3.2V
- A single NMC cell produces about 3.6–3.7V
Because no single cell chemistry naturally produces 12 volts, several cells must be connected in series to reach that level.
Read: Batteries in parallel vs. series
Why 12V Batteries Use Multiple Cells
A 12v battery is a combination of multiple cells connected in series, where each cell contributes its voltage to the total.
Example (lead-acid):
2V + 2V + 2V + 2V + 2V + 2V = 12V
Example (LiFePO4):
3.2V + 3.2V + 3.2V + 3.2V = 12.8V
The number of cells required depends entirely on the nominal voltage of each individual cell. A chemistry with a higher cell voltage needs fewer cells to reach the same system voltage.
To increase capacity without changing voltage, manufacturers add parallel cell groups alongside the series string.
How Many Cells Are in Different Types of 12V Batteries
Different battery chemistries require different numbers of cells to reach approximately 12 volts.
Lead-Acid Batteries
Lead-acid batteries are the most traditional 12V battery type, used in conventional vehicles, backup power systems, and marine applications.
- Cell voltage: ~2.0V nominal per cell
- Cells in series: 6 cells
- Total nominal voltage: 12V (fully charged: ~12.6–12.8V)
The six-cell design is fixed regardless of capacity. A 35Ah lead-acid battery and a 100Ah lead-acid battery both contain six cells — the higher-capacity version uses larger plates or greater plate surface area inside each cell, not additional cells. Inside a typical car battery, six separate cell compartments are divided by internal partitions.
LiFePO4 Batteries
LiFePO4 (Lithium Iron Phosphate) batteries are increasingly used as modern replacements for lead-acid in solar, RV, marine, and backup power applications.
- Cell voltage: 3.2V nominal per cell
- Cells in series: 4 cells
- Total nominal voltage: 12.8V (fully charged: ~14.6V, discharged: ~10V)
This 4-cell series configuration is written as 4S. Because 12.8V is close enough to 12V, LiFePO4 batteries can directly replace lead-acid batteries in most 12V systems without modification.
How many cells are in a 12V 100Ah LiFePO4 battery?
A 12V 100Ah LiFePO4 battery always uses 4 cells in series (4S), the total physical cell count depends on the capacity of the individual cells. In general, cylindrical cells have smaller capacities, pouch cells cover a wider capacity range, and prismatic cells typically have larger capacities but the total physical cell count depends on the cell format.
Lithium-Ion Batteries (NMC/NCA)
NMC (Nickel Manganese Cobalt) and NCA (Nickel Cobalt Aluminum) are common lithium chemistries used in consumer electronics and some electric mobility systems.
- Cell voltage: ~3.6–3.7V nominal per cell
- Cells in series: 3 or 4 cells depending on design
- 3S nominal voltage: ~10.8–11.1V
- 4S nominal voltage: ~14.4–14.8V
Because 3 cells × 3.6V produces only 10.8V, some battery designers use 4 cells for higher-voltage applications. Well-known NMC cells used in electric motorcycles and e-bikes include the Samsung 50E (21700 format, 5Ah) and the Panasonic NCR18650GA (18650 format, 3.5Ah). True 12V drop-in NMC packs for stationary use are less common than LiFePO4.
NiMH / NiCd Batteries
Nickel-Metal Hydride and Nickel-Cadmium batteries are older rechargeable chemistries still used in power tools and specialty applications.
- Cell voltage: ~1.2V nominal per cell
- Cells in series: 10 cells
- Total nominal voltage: 12V
NiMH and NiCd batteries require the highest cell count of any common 12V chemistry due to the low 1.2V output per cell. Both chemistries have largely been replaced by lithium in modern applications.
Comparison of Cell Counts in Common 12V Batteries
| Battery Type | Cell Voltage | Cells in Series | Nominal Pack Voltage | Common Use |
|---|---|---|---|---|
| Lead-Acid | ~2.0V | 6 | 12.0V | Vehicles, UPS, marine |
| LiFePO4 | 3.2V | 4 | 12.8V | Solar, RV, backup power |
| NMC / NCA Lithium-Ion | ~3.6–3.7V | 3 or 4 | 10.8–14.8V | Consumer electronics, EVs |
| NiMH / NiCd | ~1.2V | 10 | 12.0V | Power tools, specialty |
How Many Cells in a 12V Battery by Application
The application often determines which battery chemistry — and therefore which cell count — is used:
| Application | Typical Battery Type | Cell Count |
|---|---|---|
| Car / truck starter | Lead-acid | 6 cells |
| Solar home storage | LiFePO4 | 4 cells (series) |
| RV house battery | LiFePO4 or Lead-acid | 4 or 6 cells |
| Marine trolling motor | LiFePO4 or Lead-acid | 4 or 6 cells |
| Power tools | NiMH or NMC | 10 or 3–4 cells |
| UPS / backup power | Lead-acid or LiFePO4 | 6 or 4 cells |

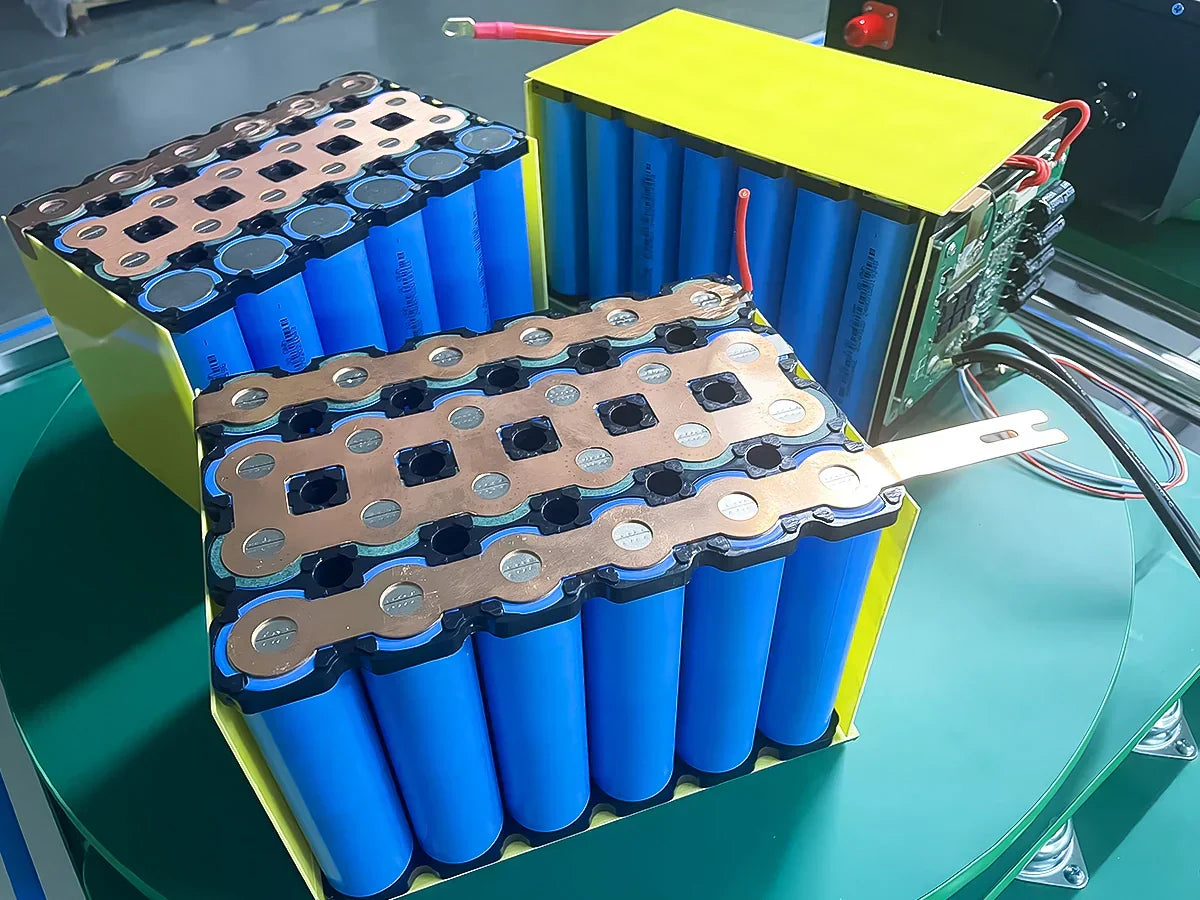

How Battery Capacity Changes Cell Arrangement
The number of cells in series determines voltage. Increasing capacity (amp-hours) requires adding cells in parallel — this is where pack structure becomes more complex.
A 12V LiFePO4 battery always uses 4 cells in series (4S) to maintain 12.8V. To increase capacity, manufacturers add parallel groups:
- 4S1P: 4 cells in series, 1 parallel group. Total cells = 4
- 4S2P: 4 cells in series, 2 parallel groups. Total cells = 8. Capacity = 2×
- 4S10P: 4 cells in series, 10 parallel groups. Total cells = 40. Capacity = 10×
- 4S30P: 4 cells in series, 30 parallel groups. Total cells = 120. Capacity = 30×
The total cell count in a pack is calculated as: Series × Parallel = Total cells.
12V 100Ah battery using 32700 cylindrical cells (~6Ah each):
- Parallel groups needed: 100Ah ÷ 6Ah ≈ 17 groups
- Configuration: 4S17P
- Total cells: 4 × 17 = 68 cells
- Parallel groups needed: 1 group
- Configuration: 4S1P
- Total cells: 4 × 1 = 4 cells
Does cell format affect how many cells are in a 12V battery?
Yes. LiFePO4 cells are produced in three main physical formats, each with a different individual capacity. The format used determines the total cell count in the finished battery pack:
| Cell Format | Typical Capacity | Example | Use Case |
|---|---|---|---|
| Cylindrical (e.g. 32700) | 5–6 Ah | 32mm diameter × 70mm tall | Smaller packs, DIY builds |
| Prismatic | 50–300 Ah | 272Ah prismatic cell | Large storage, EV, marine |
| Pouch | 10–100 Ah | Flexible soft-pack cell | Compact applications |
A 12V 200Ah battery built with 5Ah cylindrical cells requires a 4S40P configuration (160 cells total), while the same battery built with 100Ah prismatic cells only requires 4S2P (8 cells total). The voltage is identical in both cases.
4S Configuration: How 4 LiFePO4 Cells Produce 12.8V
The diagram below shows how four LiFePO4 cells connect in series to form a standard 12V LiFePO4 battery pack:
1
2
How to Identify the Number of Cells in a 12V Battery
You usually cannot see the internal cells of a sealed battery, but you can estimate the cell count and chemistry by checking several factors:
- Check the voltage label: A battery labeled 12.8V nominal is typically based on a 4-cell series configuration (4S) using LiFePO4 cells, although the total number of physical cells may be higher if multiple cells are connected in parallel. A label reading 12V on a conventional car battery indicates lead-acid with 6 cells.
- Check the fully charged voltage: LiFePO4 charges to ~14.6V. Lead-acid charges to ~12.6–12.8V. NMC 3S charges to ~12.6V.
- Check the chemistry marking: Packaging or product specs will state LiFePO4, AGM, GEL, NiMH, or lithium-ion.
- Check manufacturer specifications: Technical datasheets often show pack configurations such as 4S4P or 4S17P, which tell you exactly the series and parallel cell count.
- Use a BMS app: Many modern lithium batteries include Bluetooth BMS that displays individual cell voltages in real time.
What Happens If One Cell in a 12V Battery Fails
When one cell in a series-connected battery fails, the entire battery is affected regardless of battery type:
- Lead-acid (6S): If one 2V cell fails, pack voltage drops to ~10V. The battery can no longer reliably start a vehicle or power a 12V system.
- LiFePO4 (4S): If one 3.2V cell fails, pack voltage drops to ~9.6V. The BMS will typically shut down the battery to prevent further damage.
- NiMH (10S): If one 1.2V cell fails, the pack drops to ~10.8V, which may be below the operating threshold of the connected device.
In parallel-connected groups (e.g. 4S2P), one individual cell failure has less immediate impact because other cells in the same parallel group continue to supply current. However, the BMS will usually detect the imbalance and may limit performance or trigger a protection alert.
Tip: Modern LiFePO4 batteries include a BMS that monitors each cell's voltage, temperature, and state of charge. A well-designed BMS detects a failing cell early and protects the pack before damage spreads.
A Closer Look at 12V LiFePO4 Batteries
Of all 12V battery types, LiFePO4 is the most commonly chosen for new installations in solar, RV, marine, and backup power because it directly replaces lead-acid at the same system voltage. Here is a quick reference:
| Parameter | Value |
|---|---|
| Cell chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Nominal cell voltage | 3.2V |
| Cells in series | 4 (4S) |
| Nominal pack voltage | 12.8V |
| Fully charged voltage | 14.6V |
| Minimum discharge voltage | ~10V |
| Typical cycle life | 3,000–6,000 cycles |
| Weight vs lead-acid | ~50–70% lighter |
Common 12V LiFePO4 battery configurations by capacity:
| Capacity | Configuration (approx.) | Total Cells (approx.) | Typical Cell Format |
|---|---|---|---|
| 12V 18Ah | 4S3P (6Ah cells) or 4S1P (18Ah prismatic) | 12 or 4 | Cylindrical or Prismatic |
| 12V 100Ah | 4S17P (6Ah cells) or 4S1P (100Ah prismatic) | 68 or 4 | Cylindrical or Prismatic |
| 12V 150Ah | 4S25P (6Ah cells) or 4S2P (75Ah prismatic) | 100 or 8 | Cylindrical or Prismatic |
| 12V 200Ah | 4S34P (6Ah cells) or 4S2P (100Ah prismatic) | 136 or 8 | Cylindrical or Prismatic |
How Do I Know If My 12V Battery Is Lead-Acid or Lithium?
The most reliable method is to measure resting voltage with a multimeter. A fully charged 12V lead-acid battery reads ~12.6–12.8V at rest. A fully charged 12V LiFePO4 battery reads ~13.2–13.4V at rest after charging. If the battery label states 12.8V nominal or lists a charge voltage of 14.6V, it is LiFePO4. Lead-acid batteries charge to a maximum of ~14.4V (AGM) or ~14.8V (flooded).
Conclusion
The number of cells in a 12V battery is not a single fixed number — it depends on the battery chemistry. Lead-acid batteries use 6 cells at ~2V each. LiFePO4 batteries use 4 cells at 3.2V each, producing 12.8V nominal. NMC lithium-ion typically uses 3–4 cells at ~3.6V each. Nickel-based batteries use 10 cells at ~1.2V each.
Within each chemistry, the total physical cell count in a pack also varies based on capacity: higher-capacity batteries add more parallel cell groups, increasing total cell count without changing voltage.
LiFePO4 has become the most popular modern 12V battery for energy storage applications because it closely matches the 12V lead-acid system voltage, lasts significantly longer, and weighs considerably less — all built on a simple 4-cell series foundation.
FAQs
Do 12V Lead-Acid and Lithium-Ion Batteries Have the Same Cells?
No. Lead-acid batteries use acid-based cells that produce about 2 volts each. Lithium-ion batteries use lithium-ion cells that typically produce around 3.6 volts per cell, so their internal structures are different.
Can a car battery work with fewer cells?
No. A standard 12V car battery uses six cells. If one cell fails, the total voltage drops below 12 volts and the battery will not properly start the vehicle.
How many cells are in a 24V truck battery?
A typical 24V lead-acid truck battery contains 12 cells. Each cell produces about 2 volts, which together provide a total of 24 volts.
What is the difference between a cell and a battery?
A cell is a single electrochemical unit that generates electricity, while a battery is a group of multiple cells connected together to provide higher voltage or capacity.
How many 12 volt batteries does it take to make 48 volts?
Four 12V batteries connected in series create a 48V system by adding their voltages together.
What are the two types of 12-volt batteries?
The two primary types of 12V batteries are lead-acid batteries and lithium-ion batteries, commonly used in vehicles and energy storage systems.
