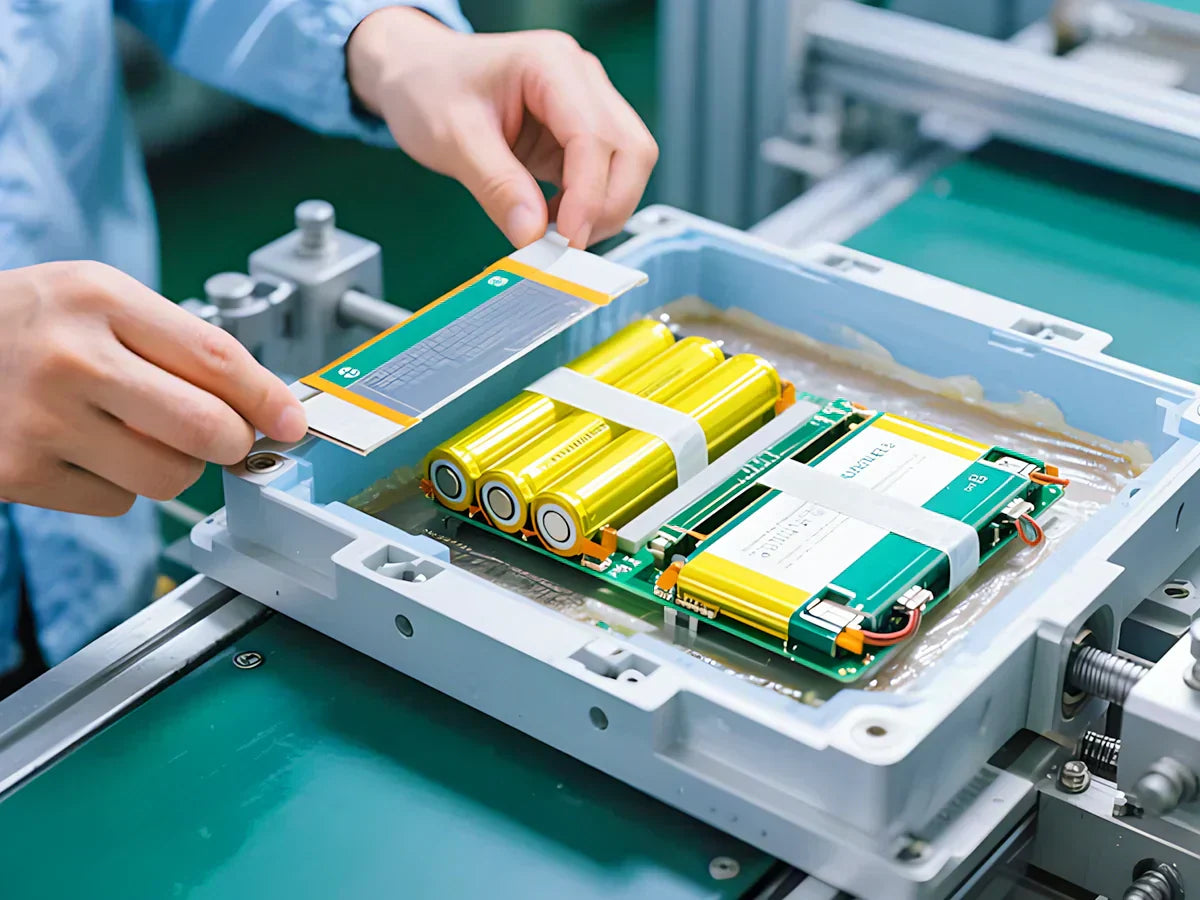

Understanding Lithium-lon Battery Pack Design and Manufacturing

Clients often have common questions when it comes to custom lithium battery packs. This article explores the key topics and answers about designing and producing lithium-ion battery packs, helping readers understand the process and components in battery pack design.

What is a lithium-ion battery pack?

A lithium-ion battery pack is a complete power unit made by connecting multiple lithium-ion cells together. These cells are arranged to deliver the required voltage, capacity, and power for a specific application.

A single lithium-ion cell usually cannot meet the needs of most devices. That is why battery pack design is so important. It allows engineers to combine cells in a safe and efficient way to match real-world requirements.

A battery pack is more than just cells. It also includes:

• Battery management system (BMS)
• Electrical connections
• Thermal management components
• Protective casing
• Safety devices

All of these parts work together to provide reliable and safe power.

What should i consider when choosing a custom lithium-ion battery?

When choosing a custom lithium-ion battery pack, there are several important things you should think about. These factors help make sure the battery is safe, reliable, and suitable for your application.

• Energy Density
  Energy density shows how much power a battery can store in a small and lightweight size. High energy density is important for portable devices and plays a big role in good battery pack design.
• Discharge Rate
  Lithium-ion cells are mainly divided into energy cells and power cells. Energy cells offer longer runtime but lower current output, while power cells provide high current quickly but store less energy.
• Cycle Life
  Cycle life means how many times a battery can be charged and discharged before it loses performance. Some batteries, such as lithium iron phosphate, can last over 3,000 cycles, which makes them more durable.
• Safety
  Safety is very important for all lithium-ion batteries. Certain types of battery offer better stability and built-in safety features, which are essential in reliable battery pack design.
• Temperature Tolerance
  Batteries must work safely under different temperatures. Modern lithium-ion batteries are now designed to handle higher temperatures better than older versions.

Why battery pack design matters?

Good battery pack design is essential for performance, safety, and lifespan. Even high-quality battery cells can perform poorly if the pack is not designed correctly.

A well-designed battery pack:

• Distributes current evenly across cells
• Keeps cells within a safe temperature range
• Prevents overcharging and over-discharging
• Reduces mechanical stress and vibration damage

Poor design can lead to overheating, reduced capacity, faster aging, or even dangerous failures. That is why manufacturers invest so much time and effort into proper battery pack design.

Basic components of a lithium-ion battery pack

Understanding the main components of a battery pack helps beginners see how everything works together.

1. Battery Cells

Cells are the basic energy storage units. They come in different shapes, such as cylindrical, prismatic, and pouch cells. Each type has its own advantages in terms of size, cooling, and assembly.

2. Cell Configuration

Cells are connected in series to increase voltage and in parallel to increase capacity. The exact configuration depends on the application.

3. Battery Management System (BMS)

The BMS monitors voltage, current, and temperature. It protects the battery pack from unsafe conditions and helps balance the cells.

4. Electrical Connections

Nickel strips, busbars, or wires connect the cells together. Good connections reduce energy loss and heat generation.

5. Enclosure and Insulation

The enclosure protects the battery pack from physical damage and environmental exposure. Insulation materials prevent short circuits and improve safety.

6. Standards and certifications

Battery packs often need to meet specific safety and quality standards before they can be sold. These standards help ensure batteries are safe to use, transport, and store.

Common standards include:

• UN 38.3 for transportation safety
• IEC standards for electrical performance
• UL certification for product safety
• CE marking for European markets

Meeting these standards is not optional for many products. Compliance is built into the battery pack design process from the beginning.

How can thermal management be added to a lithium battery pack?

Thermal management is the process of controlling battery temperature. Lithium-ion batteries work best within a limited temperature range. If the battery gets too hot, the cells can be damaged and the battery lifespan can be reduced. For this reason, thermal control is an important part of battery pack design.

There are several common ways to manage heat in a lithium-ion battery pack:

• Larger Battery Enclosure
  A larger enclosure allows heat to spread and escape more easily. This simple approach improves cooling and is often used in basic battery pack designs.
• Passive Air Cooling
  Passive air cooling relies on natural airflow around the battery pack. It is a low-cost solution and works well for low-power applications.
• Forced Air Cooling
  Fans can be used to push air through or around the battery pack. This method removes heat more quickly than passive cooling and is suitable for medium-power systems.
• Thermal Pads and Heat Spreaders
  Thermal pads and heat spreaders help move heat away from the battery cells and reduce hot spots inside the pack.
• Active Cooling Systems
  For high-power applications, advanced systems such as liquid cooling are used. Coolant circulates around the cells to keep temperatures even, improving performance and extending battery life.
• Temperature Sensors and Protection Systems
  Temperature sensors monitor heat levels inside the battery pack. If the temperature becomes too high, the system can reduce power or shut down to protect the cells. Warning systems can also alert users so they can take action before damage occurs.

Thermal management components are carefully chosen during battery pack design to match the battery’s power level and operating environment, ensuring safe and reliable performance.

What extra safety features should a custom lithium battery have?

1. Cell Balancing
   Cell balancing keeps all battery cells at the same charge level so no cell becomes too full or too empty. This helps the battery last longer and work more safely. Cell balancing also prevents sudden shutdowns caused by weak or overcharged cells. TYCORUN lithium batteries typically use a smart BMS that supports automatic cell balancing, which improves both safety and performance.
2. Battery Management System (BMS) with Protection Circuits
   A BMS protects the battery from common problems such as overcharging, over-discharging, short circuits, and excessive current. It constantly monitors the battery’s condition and shuts it down if something goes wrong. TYCORUN batteries are commonly equipped with an intelligent BMS that includes these core protection functions.
3. Pressure Relief Valves or Safety Vents
   Pressure relief systems allow built-up gas or pressure to escape safely if the battery overheats or experiences a fault. This reduces the risk of swelling or rupture. While pressure relief valves may not always be listed separately, TYCORUN lithium batteries, especially those using LiFePO4 chemistry, are designed with stable cell structures that help lower internal pressure risks.
4. Flame-Retardant Materials
   Flame-retardant materials help prevent fire from spreading if a battery failure occurs. These materials are designed to withstand high temperatures without igniting easily. TYCORUN battery packs commonly use flame-retardant housings and safer lithium iron phosphate chemistry, which is known for better thermal stability.
5. Temperature Protection and Sensors
   Temperature sensors track heat levels inside the battery pack. If the temperature becomes too high or too low, the system can limit power or shut down to protect the cells. TYCORUN lithium batteries generally include temperature monitoring through the BMS to help prevent overheating and thermal damage.
6. Short-Circuit Protection
   Short-circuit protection stops the battery instantly if a direct electrical short occurs. This prevents rapid heat buildup and serious damage. TYCORUN batteries usually include short-circuit protection as a standard safety feature within their BMS design.
7. Reverse Polarity Protection
   Reverse polarity protection helps prevent damage if the battery is connected incorrectly. This feature is especially helpful for beginners and installers. Many TYCORUN lithium battery models are designed with protection systems that reduce the risk of damage from incorrect wiring.

Do batteries need to meet specific standards?

Yes, most batteries must meet specific standards, especially if they are used in commercial products. Standards ensure batteries are safe, reliable, and compatible with other systems.

Failing to meet standards can result in:

• Product recalls
• Shipping restrictions
• Legal issues
• Safety hazards

For this reason, manufacturers consider regulatory requirements early in the battery pack design phase.

Key battery safety standards:

• UN 38.3 – Ensures lithium batteries are safe for transportation.
• IEC 62133 – Sets safety rules for lithium-ion batteries used in portable devices.
• IEC 62619 – Covers safety requirements for lithium batteries in industrial applications.
• UL 1642 / UL 2054 – Defines safety standards for household and industrial lithium batteries.
• CE Marking – Shows the product meets European Union safety standards.

Following these standards helps prevent product recalls, legal issues, and safety risks while protecting the brand’s reputation.

Where can I buy battery cells for in-house production?

Battery cells can be sourced from authorized manufacturers, industrial distributors, specialized suppliers, or OEM and wholesale partners. Choosing reliable suppliers helps ensure consistent quality and performance.

Many companies also work with professional lithium battery manufacturers like TYCORUN, which offers custom battery solutions, including cell selection, battery pack design, and safe assembly. This can reduce risk and improve product quality.

How battery pack design affects battery life

Battery life is often measured in charge and discharge cycles. A cycle is one full use of the battery’s capacity.

Good design helps extend battery life by:

• Keeping cells balanced
• Reducing heat stress
• Avoiding deep over-discharge
• Limiting high current spikes

Even small design improvements can significantly increase cycle life. This is why careful battery pack design is essential for long-lasting battery systems.

Conclusion

Lithium-ion battery packs are complex systems made from carefully chosen components. Every part—from cell selection to safety features and thermal management—affects performance, safety, and lifespan.

Understanding battery pack design and manufacturing helps beginners see why packs can differ in reliability and efficiency. A well-designed pack delivers stable power, meets safety standards, and lasts longer.

Professional manufacturers like TYCORUN provide expertise in custom lithium battery solutions, including safe assembly, cell selection, and optimized battery pack design. Working with experienced companies ensures high-quality, reliable, and long-lasting battery systems.

As lithium-ion technology grows, good battery pack design will continue to be the foundation of safe and efficient energy storage across industries.

FAQs

What types of lithium-ion cells are used in battery pack design?

Common types include cylindrical, prismatic, and pouch cells. Each type is chosen based on size, power needs, and cooling requirements in the battery pack design.

How are cells connected in a lithium-ion battery pack?

Cells are connected in series to increase voltage and in parallel to increase capacity. The connection method depends on the battery's application and performance needs.

How can battery pack design improve efficiency?

A well-designed battery pack reduces energy loss in wiring, balances cells, and controls temperature. This delivers more usable power and longer runtime.

Can battery pack design prevent overheating?

Yes. Proper battery pack design includes thermal management systems like heat spreaders, cooling fans, liquid cooling, or temperature sensors to keep cells safe.

What is the difference between energy cells and power cells?

Energy cells store more capacity for longer runtime, while power cells provide high current output for short bursts of power, depending on the application.

How does battery pack design affect safety?

Good battery pack design integrates a BMS, thermal management, flame-retardant materials, and protective circuits to prevent accidents such as fire or short circuits.

Can I customize a lithium-ion battery pack for specific needs?

Yes. Professional manufacturers like Tycorun offer custom lithium-ion battery pack design to meet voltage, capacity, size, and safety requirements for different applications.

Why should I work with professional battery pack designers?

Experts like Tycorun  provide safe, reliable, and custom solutions, ensuring the battery pack meets performance, size, and safety requirements for your application.
