A Comprehensive Guide to 12V 24Ah Lithium Battery
To overcome different electrical remote needs you may need a battery that can fulfill your requirements according to your use.
12v 24Ah lithium-ion battery is a portable, lightweight battery that can be used in different appliances like ultrasound recorders and moth trappers.
UN certified and advanced technology-based manufactured 12 volt 24ah lithium battery is very useful and a valuable plus for your work needs. In this complete guide, we’ve conducted a detailed discussion on all the key takeaways of this battery:
1. What is a 12V 24Ah lithium-ion battery?
12v 24Ah lithium-ion battery is a lithium-iron-phosphate battery designed specifically designed for deep cycle usage. The chemistry incorporated in its manufacturing allows it to be much safer to use as compared to other batteries.
The automated battery management system of 12v 24Ah battery keeps the battery from overheating, thus preventing any chances of exploding. Such exceptional features combined with built-in battery protection enable it to undergo up to and over 3000 cycles, with its lifespan exceeding 5 years of usage.
However, up to the mark workability of the product depends on implying general usage precautions, such as avoiding overcharging and providing the appropriate temperature. The 12v 24ah deep cycle battery generally costs around $300, though its price depends on the variants.
2. What is meant by LifePo4 12V 24Ah lithium-ion battery?
LifePo4 12v 24Ah Lithium-ion battery is also known as a deep cycle battery due to its basic feature of deep discharging and producing stable power output with maximum use of its capacity.
LifePo4 (Li-Fe-PO4) refers to its chemical composition involving Lithium, Iron, and Phosphate. The primary constituents of the 24Ah 12v LifePo4 deep cycle battery include electrodes, electrolytes, additives (i.e., polymer binders), and adhesives.
It uses Lithium Iron Phosphate (LFP) as cathode and metallic backing of carbon electrode as anode. The electrolyte dissolves Iron and Phosphate ions. The circulation of these dissolved ions in the cell conducts voltage and provides current to the circuit and eventually as an output.
3. What are the different uses of a 12V 24Ah lithium battery?
The well-defined performance of the LiFePo4 12v 24Ah battery enables it to be used for various purposes. The uses are almost similar to those of other Lithium-Ion batteries due to the same voltage, current although varies:
• Uninterrupted Power Supply
12v 24Ah battery is used in power generators and intends to provide an uninterrupted power supply. It not only works as a backup during electrical breakdowns but also ensures a constant supply of power during fluctuations to avoid any damage to the equipment.
• Electrical Equipment
12v 24Ah lithium battery has extensive use in electrical equipment, mainly involving the electrical appliances. However, the utility in this regard depends on the relative strength of the battery.
• Military Power Equipment
Increased durability of 12v 24Ah deep cycle battery allows their large-scale use in military power equipment. On land, it serves the purpose of infantry communications and improves the reliability of major defense weapons.
12v 24Ah deep cycle marine battery proves its worth in marine and naval equipment. They have an effective role in torpedoes, naval ships, and boats as well as in submarines.
Unmanned Aerial Vehicles (UAVs) use 24-amp lithium iron phosphate batteries for better performance for military surveillance and reconnaissance purpose. Similarly, defense aircraft and UCAVs employ LiFePO4 12v 24Ah batteries to deploy the best of their weapon system.
• Portable Energy Storage
Being smaller in size and lighter in weight, 12v 24Ah lithium-ion batteries serve the purpose of portable electricity. They work as “power packs” and can be carried as a portable energy storage device anywhere with the utmost convenience.
4. Explain the different benefits of a 12V 24Ah lithium-ion battery?
Various features of 12v 24Ah deep cycle battery contribute to an up to the mark performance. Let’s discuss the benefits it offers to the users:
• Long-Lasting
12volt 24Ah battery lasts much longer than you can expect. Unlike other lead-acid batteries, your lithium battery of 12v 24Ah can go above and beyond 5 years of life span, making it one of the longest-running batteries in the 12V category.
• Fast Charging
In the present times when life is moving swiftly, no one’s got enough time to wait for their batteries to charge, or to undergo repetitive charging. A 24-Amp lithium battery saves your day at work with its capability of quick recharging and helps you evade the trouble of repeated charging as well.
• Maintenance
The latest technology used in most of the variants of 12V 24Ah deep cycle battery discards the requirement of any major maintenance checks, such as water levels, chemical substances, and electrolyte management. These hassles would be gone along with your lead acid battery once you replace it with the latest 12V 24Ah lithium battery.
• Nature Friendly
Lithium-ion batteries remain eco-friendly throughout their entire lifespan. There’s no emission of harmful chemical substances with lithium-ion batteries since the electrolytic and chemical requirements in terms of maintenance are nullified.
5. What is the cost of a 12V 24Ah lithium battery?
Generally, the price of a 12V 24Ah battery is a bit higher than other lithium batteries below 24 Ampere hours, and rightly so. With a significant increase in discharged cycles (relative to the Amperes of other 12V batteries), it costs around $300. However, the cost may vary depending on its variant.

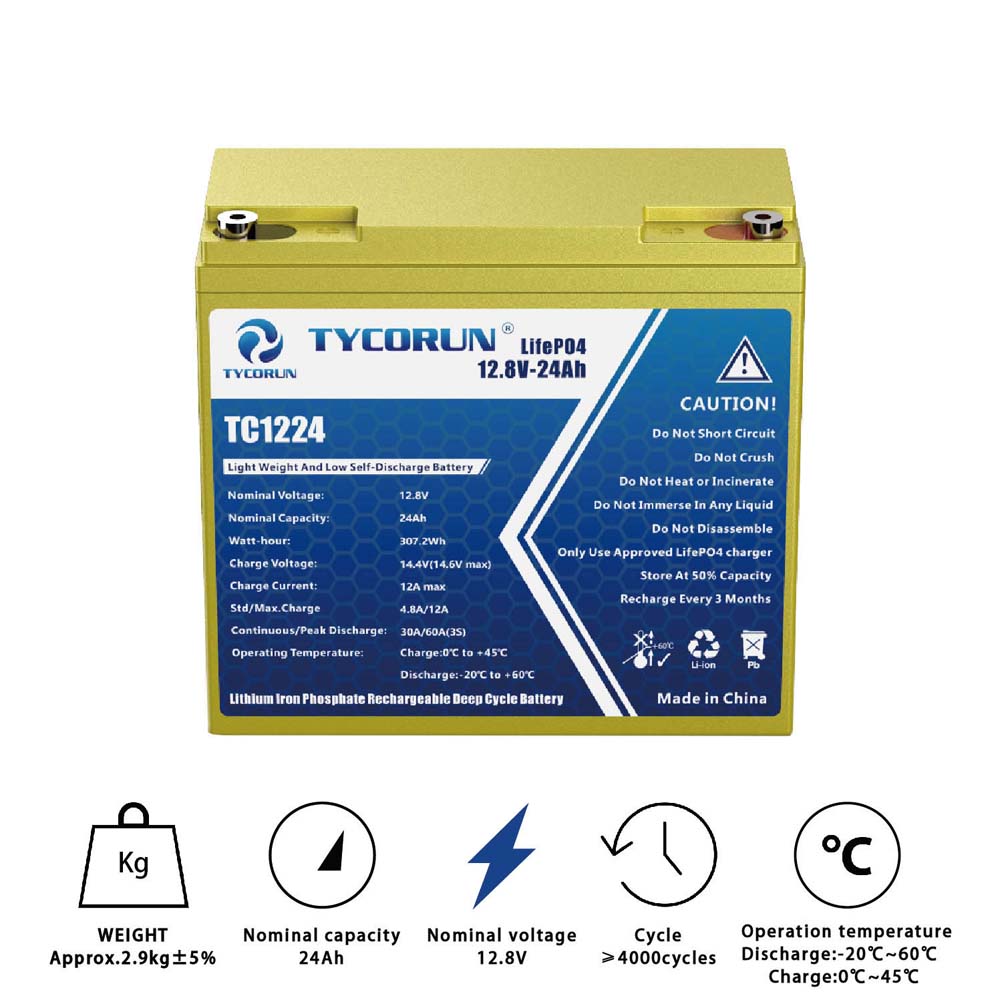

6. Explain the specifications of a 12V 24Ah lithium battery?
The specifications that come with the 12V 24Ah lithium battery are as follows:
• Nominal Voltage
The nominal voltage required to activate the recharging process is 12V.
• Initial Charging Current
The initial charging current for a 24-Amp lithium battery is ≤7.8A.
• Charge Voltage
With the initial current approaching 7.8-Amp, the charge voltage remains from 14.4V-15V at 25°C (77F).
• Chemical Composition
The product being LiFePO4 battery 12V 24Ah indicates that its chemical constituents are Lithium, Iron, and Phosphate (also known as LFP due to the presence of Li, Fe, and Phosphate). The LFP ions in its cathode circulate through the electrolyte with the metallic backing of carbon as an anode, and eventually produce voltage and deliver current as an output.
• Discharge Rate
The 12V 24Ah Lithium-Ion battery tends to have a very low discharge rate which makes it stand out from the lead-acid batteries.
• Warranty
The product typically comes with a 24 months warranty, although the warranty period may vary with the suppliers.
• Safety Concerns
The Lithium-Ion battery comes with a built-in BMS (battery management system) to address safety concerns. BMS system decreases the likelihood of any major maintenance problems.
7. Can you use a 12V 20Ah battery for a solar power system?
One of the best batteries to store energy from the solar power system is the 12V lithium-ion battery. Its extended capacity to store energy makes it the ideal choice for solar energy storage. Similarly, with its quick recharging ability, it fares the best way possible against its other contenders.
The best choice in this regard is a customized solar lithium battery 12V 24Ah. The customization solely intended to store solar energy improves its overall functionality and cuts back on maintenance costs as well since the sealed package contains pretty much everything to be installed straight into the solar power system.
8. If the 12V 24Ah lithium battery is charged fully how long it will last?
A 12V 24Ah deep cycle battery lasts for 24hrs providing 1 Amp of current as output. Since Ah indicates the value of Ampere hours which, for a 24-Ah battery, is quite obviously 24hrs per Ampere, which implies that it would provide 1amp for 24hrs straight, 2amp for 12hrs and 3amp for 8hrs and so on. Therefore, the battery timing depends on the application.
9. Compare 12V 24Ah lithium-ion battery with 24Ah lead-acid battery?
12V 24Ah lithium-ion battery is better than a lead-acid battery of 24Ah in almost every possible perspective. Here’s an extensive comparison between lithium-ion and lead-acid batteries of 24 Ampere-hour:
Weight
While looking at both batteries we’ll find a lot of changes, features such as smaller size, light-weighted, long life, and environmentally friendly features.
Discharge Cycle
The following points must be under consideration while replacing a battery.
Charging and Cool-Down Time
If you’re thinking to replace a lithium battery with a lead acid battery you must consider that whether the voltage is the same as the original lithium or not, otherwise, the battery will not collaborate with the original motor and cause the problem in controlling the vehicles.
Battery Management System
In this current state, you’ll find a market providing you various qualities of lithium-ion batteries.
Environmental Concerns
The compartment of a lead-acid battery is 2 times more than a lithium battery only if their capacities are the same. But the volume and mounting direction of the lithium battery must be paid attention to.
10. Is it easy to replace a lead-acid battery with 12V 24Ah lithium-ion battery?
Due to the remarkable benefits 12V 24Ah lithium-ion battery offers, there is a rapid shift from lead-acid technology to lithium-ion technology. Although replacing a lead-acid battery with a lithium-ion battery is rather convenient, some key takeaways, in this regard, are given below:
• Battery Box
The same battery box is typically used with the replacement. The increase or decrease in the weight of the battery depends on its application.
• Battery Protection Unit
The dedicated battery protection unit (BPU) for lithium-ion integration is planted into the same battery box.
• Connecting BPU to BMS
BPU is connected to the battery management system via PC configuration. Temperature sensors as well as other safety concerns are regulated under supervision.
11. What are the quality standards that this battery must fulfill?
The quality concerns a 12V 24Ah lithium-ion battery must fulfill include:
• Conformable to Environment
During manufacturing, a sophisticated battery management system is ensured to keep it eco-friendly. For the safety of the product (for both the inner and outer environment), UL 2054 safety test is conducted.
• Shipment Regulations
UN/DOT 38.3 is a certified test performed to regulate the product for shipping. The test assures safe and sustainable transportation all over the world through any means of shipment whatsoever.
• Avoiding Hazards
To avoid safety hazards like short-circuiting, fire, and explosion, IEC 62133 test is conducted. It is a mandatory test employed to affirm the overall safety of the product.
12. How to get maximum output from 12V 24Ah lithium battery up to maximum life period?
Maximum output from 12V 24Ah lithium-ion deep cycle battery is obtained once you assure its up to the mark routine maintenance and comply with the precautions.
Major maintenance issues are readily addressed in lithium-ion batteries due to BMS incorporation, yet there are certain precautions you’re ought to imply while utilizing the product. They include:
• Appropriate charge voltage must be ensured; high charge voltage may push it beyond its operating limit; low charge voltage may hinder its functionality due to deficient charging level.
• Keep the battery at an optimum temperature (neither too high nor too low).
• Reduce the float voltage to increase the cycle life.
• Avoid deep discharging.
• Avoid overcharging the battery.
Maintenance checks and precautions generally depend on the chemistry of the battery. But considering these key factors will certainly help you get the most out of your 24-Amp lithium-ion battery.
