How to install bluetooth function on 12V200ah Li-ion battery? 丨Battery production

Hi, everybody! This is Guangzhou TYCORUN Energy Co., Ltd. What I want to introduce today is the 12V200ah smart lithium-ion battery with Bluetooth that we have received very good reviews. Buyers seem to be very concerned about whether the battery has bluetooth function or not. It should be a battery with bluetooth function, which means that as long as I open my mobile phone and log in to the corresponding APP, I can observe the status of my battery in real time. It is much easier to use than traditional lithium batteries. During maintenance, it is also convenient for the staff to find the problem and solve it immediately. Well, having said so much, let's take a look at how this 12V200AH smart battery with Bluetooth function is produced. Let's see together
Here are a few steps to assemble the battery:

  • 1. Battery capacity
  • 2. Battery spot welding, parallel connection
  • 3. Battery cell insulation assembly, tin wire welding
  • 4. Install the BMS board
  • 5. Monitor BMS
  • 6.BMS board is equipped with bluetooth function
  • 7. Insulation sponge pad and battery box package
  • 8. Super capacity after drying the battery
  • 1. Battery capacity

    After got the cell batteries, those batteries have done of capacity grading.

    2. Battery spot welding, parallel connection

    First of all,using UV machine automatic to connect the cells in parallel by spot welding.

    3. Battery cell insulation assembly, tin wire welding

    The battery cells which connected in parallel are separated by insulating paper and assembled together. Welded the battery with the data collection line together and then weld the positive and negative wires by solder wire in turn.

    4. Install the BMS board

    Then fix a BMS board on the top of battery pack with insulation paper that can collect data such as battery voltage and capacity.

    5. Monitor BMS

    The BMS protection board can monitor the battery status in every time, and provide protections such as over-charge, over-discharge, over-current, and over-temperature when necessary.

    6.BMS board is equipped with bluetooth function

    BMS is equipped with Bluetooth function, and you can see the information and status of the battery in the mobile app To weld the positive and negative terminals of the battery pack to the BMS board.
    To connect the data collection line to the BMS board and then test the voltage and internal resistance.

    7. Insulation sponge pad and battery box package

    After testing, use insulating waterproof glue to seal the exposed wires.
    Then paste the buffer insulation sponge on the bottom and put it into the ABS box, and connect the positive and negative wires to the positive and negative ports of the box cover.
    Then inject waterproof glue into the space around the box to fix the battery pack.

    8. Super capacity after drying the battery

    After 3 hours of drying, a battery that can be recycled for more than 2000 times is finished.

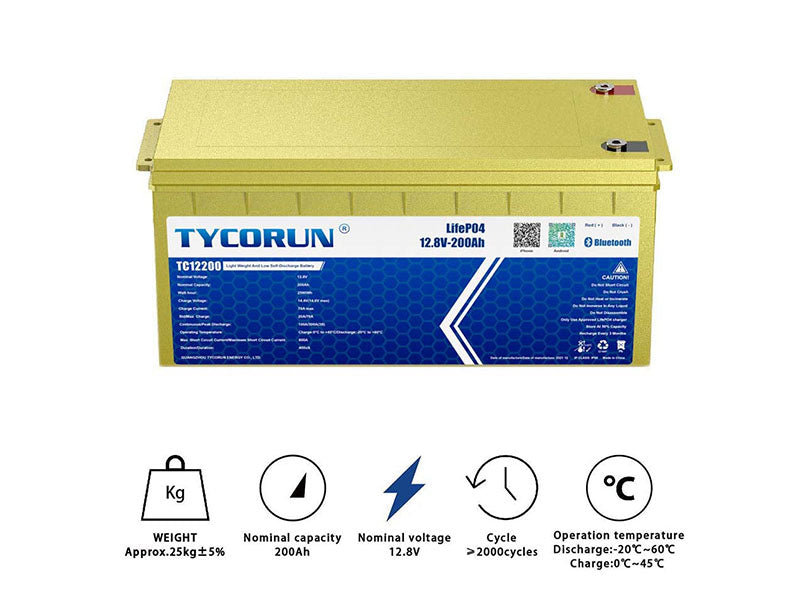

    Below are the details of our 12.8V200AH smart Li-ion battery:

    Eco-Friendly: Green energy with no toxic chemical material
    Super Long Life: 2000-5000 cycles, 10-year service life
    Rated capacity size:2560Wh
    Whether with bluetooth function: with bluetooth BMS
    Whether it can be monitored by mobile phone: After downloading the APP, connect the battery and monitor the battery condition in real time
    Battery length and width:522*240*218mm
    Battery weight: Approx. 25Kg
    High Safety and Stability: Grade A cells with built-in BMS(Battery Manage System) protection from over-charge, over-discharge, over-load, over-heating, short circuit. Low self-discharge rate 3%
    Wide Working Temperature: Charging Temperature 0℃-55℃; Discharging Temperature -20℃-60℃
    Lightweight, Easy to Install and Fast Charging: Great replacement of SLA/VRLA(lead acid batteries), with 2X Load Power,8X Cycle Life,1/3 Weight,1/5 Charging Time

    Application scenarios


    Gradually, traditional UPS manufacturers will develop in the direction of lithium batteries. Lithium batteries will gradually replace lead-acid batteries as backup power. As the UPS backup power in the data room, the lithium battery can provide long backup time and service life. Traditional lead-acid batteries require a more ventilated environment and a lower temperature. The lithium battery can overcome the above difficulties. The future development of UPS is inseparable from the promotion and application of smart lithium batteries.

    When you own a floor machine, you will find that cleaning becomes so easy. The floor machine is a great invention that can free our hands. Built-in powerful motor drives the machine to vacuum and sweep the floor. And you will be surprised to find that the 200Ah smart LiFePO4 lithium battery can drive such a powerful motor, because the LiFePO4 lithium battery has an energy density of more than 160wh/kg. It can provide a huge current to drive the battery to start and work in an instant. The unknown aspect of it is that while having a strong discharge capacity, its weight is 2/3 less than that of a traditional lead-acid battery, and its volume is even less than a half.

    Our company Tycorun ( has a professional and experienced team of technical experts and top-notch product designers. We have been winning great achievements on energy development. Products are exported to Europe, North America, South America, Africa.
    Our Tycorun Lithium Batteries series is a series that specifically replaces the old lead-acid batteries. Based on the lithium battery with the high characteristics of energy density, 1/3 light weight, environmental protection, green energy and others. It maximizes its advantages and achieves the global "carbon peak" and "carbon neutral" goal. Our LiFePO4 battery will contribute more to this goal.
